Full Assembly

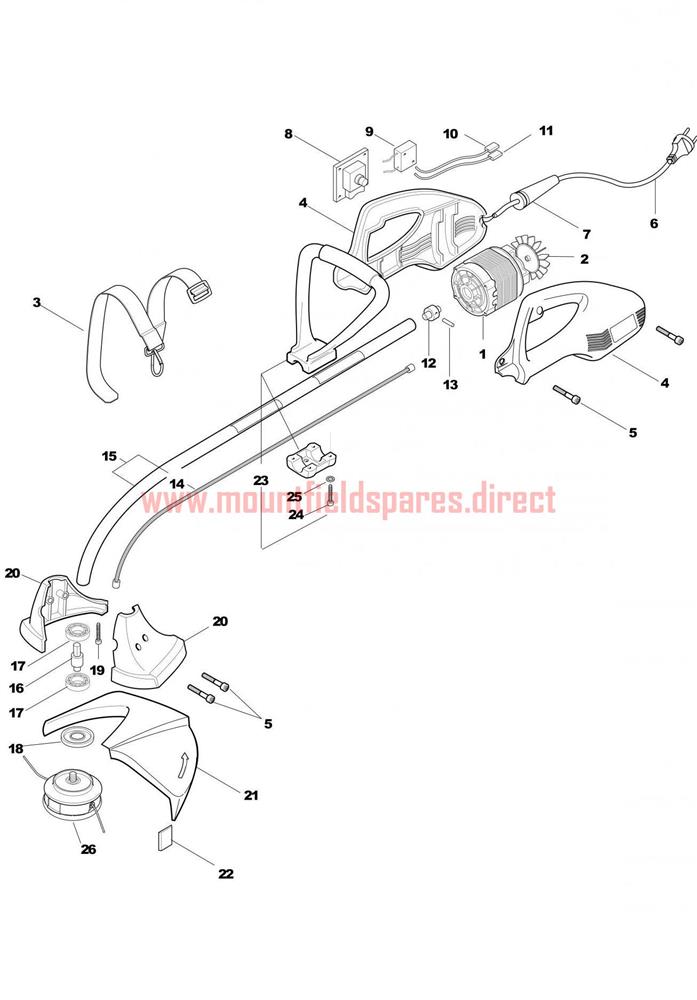

Full Assembly assembly details for Mountfield MT1100 2009 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	8253840	ENGINE ASSEMBLY TR 1000	£189.37	Add to
002	4564000	ENGINE FAN TR 1000	£4.59	Add to
003	4253420	Brace	£6.85	Add to
004	8563213	Semi-Handgrips Red	N/A	POA
005	2123210	SCREW TC 4.2 x 25	£4.35	Add to
006	3211290	TR INPUT CABLE	£16.68	Add to
006	3211440	CH/BRA PLUG INPUT CABLE	N/A	POA
006	3211540	INPUT CABLE ASS.Y	N/A	POA
007	3744767	Feed Fairlead	£7.19	Add to
008	3211200	SWITCH	£8.87	Add to
009	3211210	ES CAPACITOR 0,22 MF	£4.52	Add to
010	3211300	Motor-Switch Cable,Long	N/A	POA
011	3211310	Motor-Switch Cable Short	N/A	POA
012	3750200	FLEXIBLE SHAFT JOINT TR 1000	£2.06	Add to
013	3314170	ELASTIC PIN 3X12 D.4X26 UNI 6874	£1.79	Add to
014	4253830/1	Flexible Shaft	N/A	POA
015	4252180/1	Assy Transm. Tube+Flex	N/A	POA
016	3643020	HEAD SHAFT TR 1000	£16.22	Add to
017	3112280	BALL BEARING 6001 2RS	£5.92	Add to
018	3614630	RING NUT (TR 1000 GEAR CASE)	£15.00	Add to
019	2123100	SCREW M4 8 x 13	£1.79	Add to
020	8563240	HALF-HOUSINGS TR1000	£19.36	Add to
021	4563231/1	Safety Cover Ass.Y	N/A	POA
022	3614640	WIRE CUTTER TR 1000	£3.83	Add to
023	8250360	HEART' HANDGRIP ASSY BC HONDA	£46.69	Add to
024	2123110	SCREW 4.8 x 35	£1.79	Add to
025	2312090	FLAT WASHER D=5 x 10 x 1	£1.79	Add to
026	23155002/1	2 Hedges Nylon Head	N/A	POA
10A	3211301	Motor-Switch Cable,Long	£7.19	Add to
11A	3211311	Motor-Switch Cable Short	£7.19	Add to
