Full Assembly

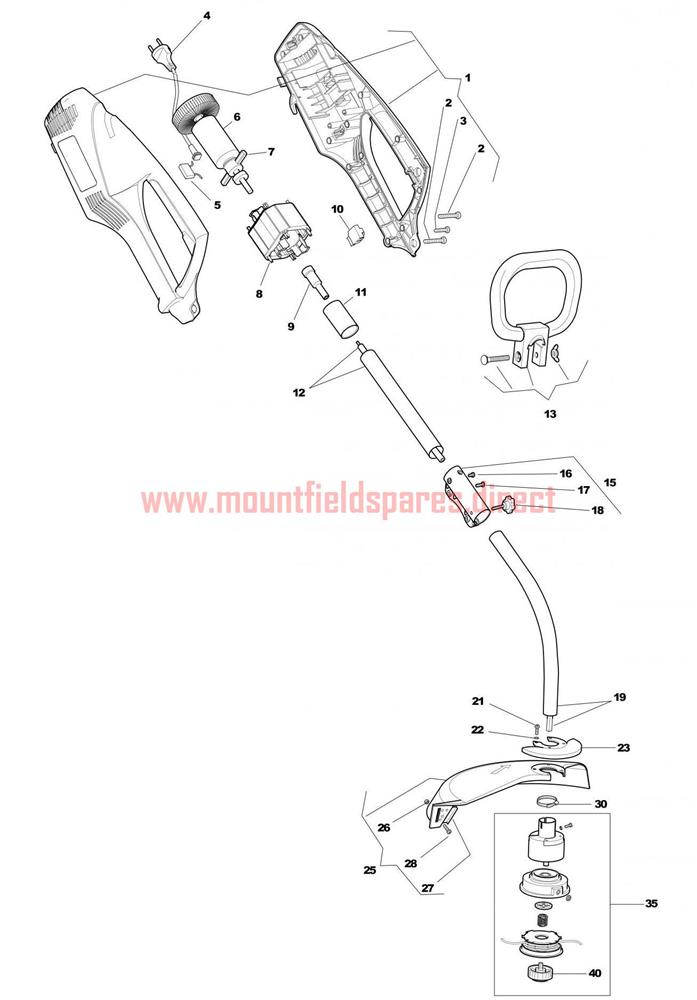

Full Assembly assembly details for Mountfield MT 900 J 2010 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0016985072Semi-Handgrips YellowN/A POA
0026985034ScrewN/A POA
0036985051ScrewN/A POA
0046985065Feed Line With PlugN/A POA
0056985033CapacitorN/A POA
0066985067ArmatureN/A POA
0076985074SA BRUSH£19.22 Add to
0086985076FieldN/A POA
0096985070SA FLEXIBLE JOINT£10.91 Add to
0106985071SwitchN/A POA
0116985064SpacerN/A POA
0126985080SA UPPER TUBE WITH FLEXIBLE SHAFT£64.32 Add to
0136985094Front Handgrip Ass.N/A POA
0146985055ScrewN/A POA
0156985056WASHER£2.00 Add to
0166985029NutN/A POA
0216985093Joint Chair Ass'YN/A POA
0226985060ScrewN/A POA
0232135020TORX SCREW M5 x 10£1.79 Add to
0246985059KnobN/A POA
0256985081Assy Transm. Tube+FlexN/A POA
0266985062Gear Case AssyN/A POA
0276985042GuardN/A POA
0286985049ScrewN/A POA
0316985091Safety Cover Ass.YN/A POA
0326985050ScrewN/A POA
0336985048NUT£1.79 Add to
0366985036ScrewN/A POA
0376985041Line CutterN/A POA
0386985038NUT M4£2.00 Add to
0416985046SGD SUPPORTO TESTINA B00113-02 -RDC£59.19 Add to
0436985096Cutting Line AssyN/A POA
0486985086KnobN/A POA
0516985045FlangeN/A POA
05269850374 Teeth DisckN/A POA
0536985044FlangeN/A POA
0546985043StabilizerN/A POA
0556985047SCREW£6.09 Add to
0616985053HarnessN/A POA
