DRIVE SHAFT

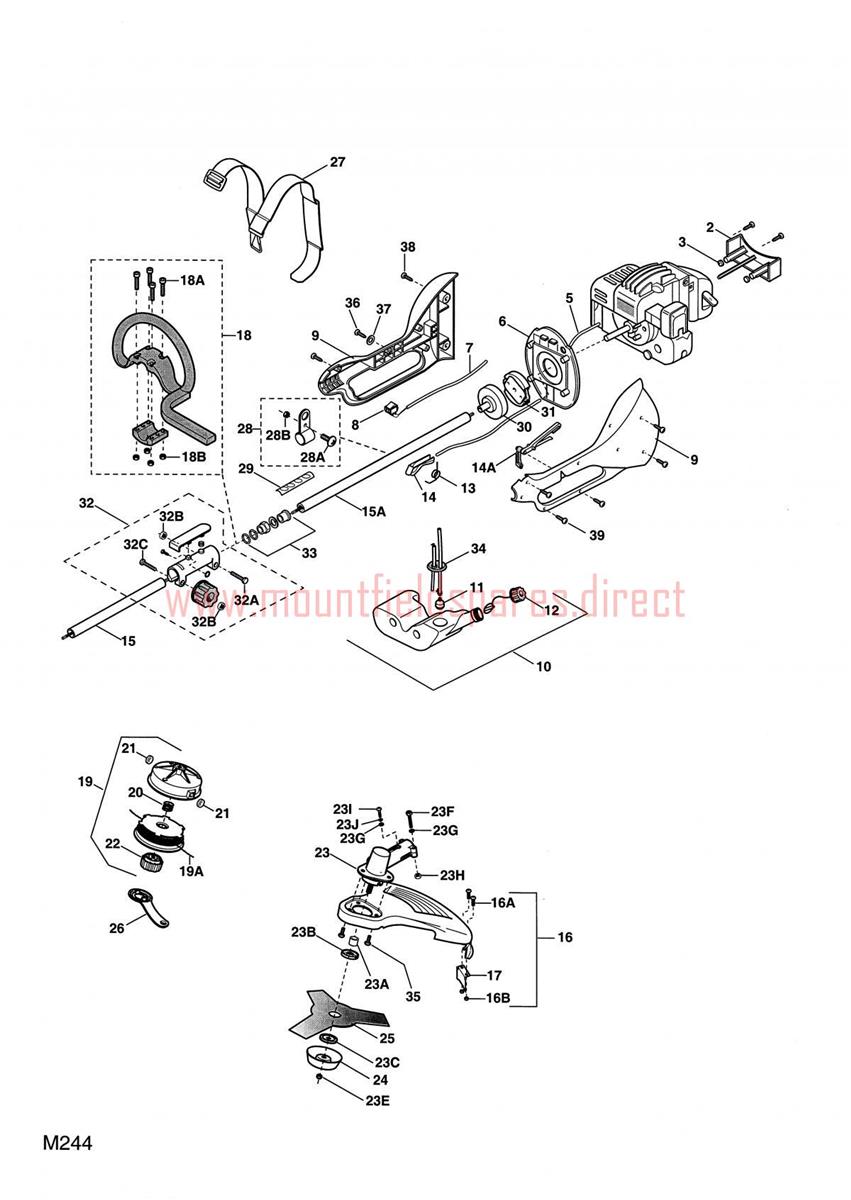

DRIVE SHAFT assembly details for Mountfield MB22CX 2005 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
002	6980200	FIXED PLATE J.F.	£9.48	Add to
003	6980201	ISOLATOR J.F.	£5.66	Add to
005	6980318	THROTTLE CABLE	£12.94	Add to
006	6980204	COVER J.F.	£34.95	Add to
007	6980205	WIRE J.F.	£7.19	Add to
008	6980328	SWITCH (OBSOLETE) (OBSOLETE)	N/A
009	6980325	HOUSING ASSY, RED 2008	£52.74	Add to
010	6980208/1	FUEL TANK ASSEMBLY (OBSOLETE) (OBSOLETE)	N/A
011	6980209	FUEL PICK-UP	£11.05	Add to
012	6980320	FUEL TANK CAP (OBSOLETE)	N/A
013	6980211	SPRING J.F.	£7.19	Add to
014	6980322	THROTTLE LEVER 9028-330601	£7.19	Add to
015	6980326	FRONT SHAFT & FLEXIBLE DRIVE	£52.06	Add to
016	6980302	SHIELD ASS.Y 9228-330621	£39.80	Add to
017	6980215	LINE CUTTER BLADE	£4.52	Add to
018	6980303	FRONT HANDLE ASS.Y 9228-330613	£33.86	Add to
019	2530004-01A	NYLON HEAD [M8-FEMALE LH-THREAD]	£33.94	Add to
020	1911-3898-01	Spring	N/A	POA
021	1911-3899-01	Line inlet	N/A	POA
022	6980332	LEFT HANDED KNOB	£5.61	Add to
023	1911-3900-01	Gear case assy	N/A	POA
024	1911-3906-01	Stabilizer bowl	N/A	POA
025	1911-3920-01	Clearing blade	N/A	POA
026	1911-3907-01	Key-cutting head	N/A	POA
027	1911-3908-01	Harness	N/A	POA
028	1911-3909-01	Harness support	N/A	POA
029	1911-3910-01	Label-safety	N/A	POA
030	1911-3780-01	Clutch drum	N/A	POA
031	1911-3779-01	Clutch	N/A	POA
032	1911-3777-01	Tube joint (OBSOLETE)	N/A
033	6980220	SHAFTING - SLEEVE ASS'Y J.F.	£13.64	Add to
034	6980208/1	FUEL TANK ASSEMBLY (OBSOLETE) (OBSOLETE)	N/A
035	1911-3013-01	Screw	N/A	POA
036	1911-4262-01	Screw	N/A	POA
037	1911-4263-01	Washer	N/A	POA
038	1911-4264-01	Screw	N/A	POA
039	1911-4265-01	Screw	N/A	POA
14A	6980324	Safety lever	£7.19	Add to
15A	1911-3917-01	Upper tube w.shaft (OBSOLETE)	N/A
16A	9865-0520-16	Screw	N/A	POA
16B	112154330/0	LOW SELF-LOCKING NUT M5	£2.06	Add to
18A	9865-0530-16	Screw	£4.01	Add to
19A	1911-9007-04	CUTTING LINE (130M-2.0MM)	£50.54	Add to
19A	1911-9007-08	Cutting line (2.4 mm)	£12.24	Add to
231	9865-0512-16	Screw	£4.01	Add to
23A	6980307	COLLAR 9124-330309	£7.19	Add to
23B	6980308	UPPER RING NUT	£9.54	Add to
23C	6980309	LOWER RING NUT	£10.33	Add to
23E	6980311	LEFT NUT	£7.27	Add to
23F	112789210/0	SCREW M5 x 35	£2.06	Add to
23G	9699-0024-02	WASHER 2011	£3.64	Add to
23H	9739-0531-22	NUT M5	£2.47	Add to
23J	9683-0015-02	Lock washer	£4.01	Add to
28A	9865-0510-16	Screw	£4.01	Add to
32A	9939-0630-12	Screw	£4.01	Add to
32B	112292100/0	HEXAGON NUT M6	£1.47	Add to
32C	112674700/0	SCREW M6 X 35	£2.06	Add to
