ENGINE

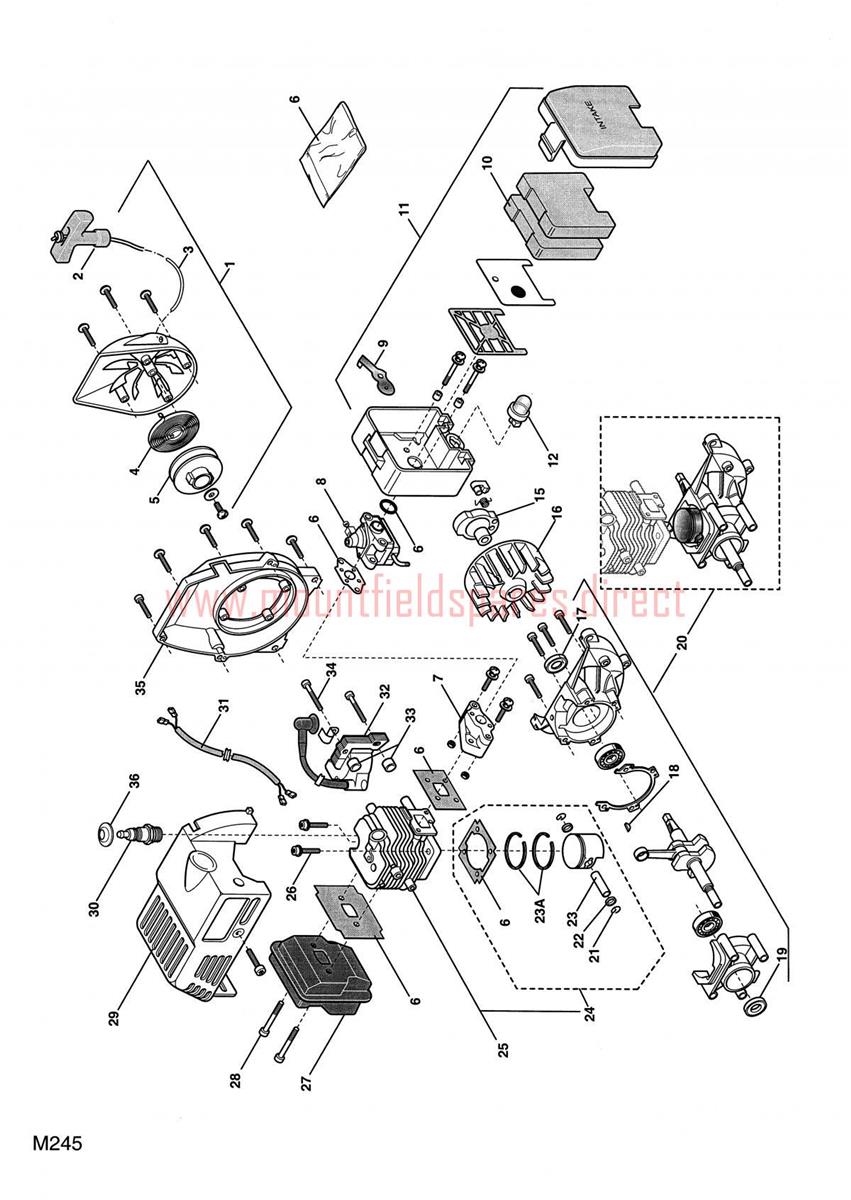

ENGINE assembly details for Mountfield MB22CX 2005 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011911-3781-01Start assy (OBSOLETE)N/A
0021911-3782-01Starter handle (OBSOLETE)N/A
0031911-3783-01Starter rope (OBSOLETE)N/A
0041911-3784-01Spring (OBSOLETE)N/A
0051911-3785-01PulleyN/A POA
0066980236GASKET SET£6.23 Add to
0071911-3787-01Carburettor baseN/A POA
0086980238CARBURETTOR J.F.£132.70 Add to
0091911-3789-01Choke valveN/A POA
0101911-3790-01Air filterN/A POA
0116980241AIR FILTER ASSEMBLY (OBSOLETE) (OBSOLETE)N/A
012118804231/0PRIMER BULB£6.23 Add to
0151911-3855-01Starter pawl assyN/A POA
0161911-3796-01FlywheelN/A POA
0171911-3797-01Seal ringN/A POA
0181911-3798-01KeyN/A POA
0191911-3799-01Seal ringN/A POA
0201911-3800-01Short-blockN/A POA
0211911-3801-01Lock ringN/A POA
0221911-3802-01GasketN/A POA
0231911-3803-01Piston pinN/A POA
0241911-3804-01Piston assyN/A POA
0251911-3805-01Cylinder assy w.pistoN/A POA
0261911-3806-01ScrewN/A POA
0271911-3807-01MufflerN/A POA
0281911-3808-01ScrewN/A POA
0291911-3809-01Engine shieldN/A POA
0303210024SPARK PLUG CHAMPION RCJ7Y , NGK BPMR6A£4.52 Add to
0311911-3810-01Wiring harnessN/A POA
0326980261IGNITION COIL (OBSOLETE) (OBSOLETE)N/A
0331911-3812-01SpacerN/A POA
0341911-3813-01ScrewN/A POA
0351911-3814-01Flywheel coverN/A POA
0361911-3815-01Spark plug coverN/A POA
08A1911-2062-01Throttle valve & shaf (OBSOLETE)N/A
23A1911-3816-01Piston ringN/A POA
