DRIVE SHAFT

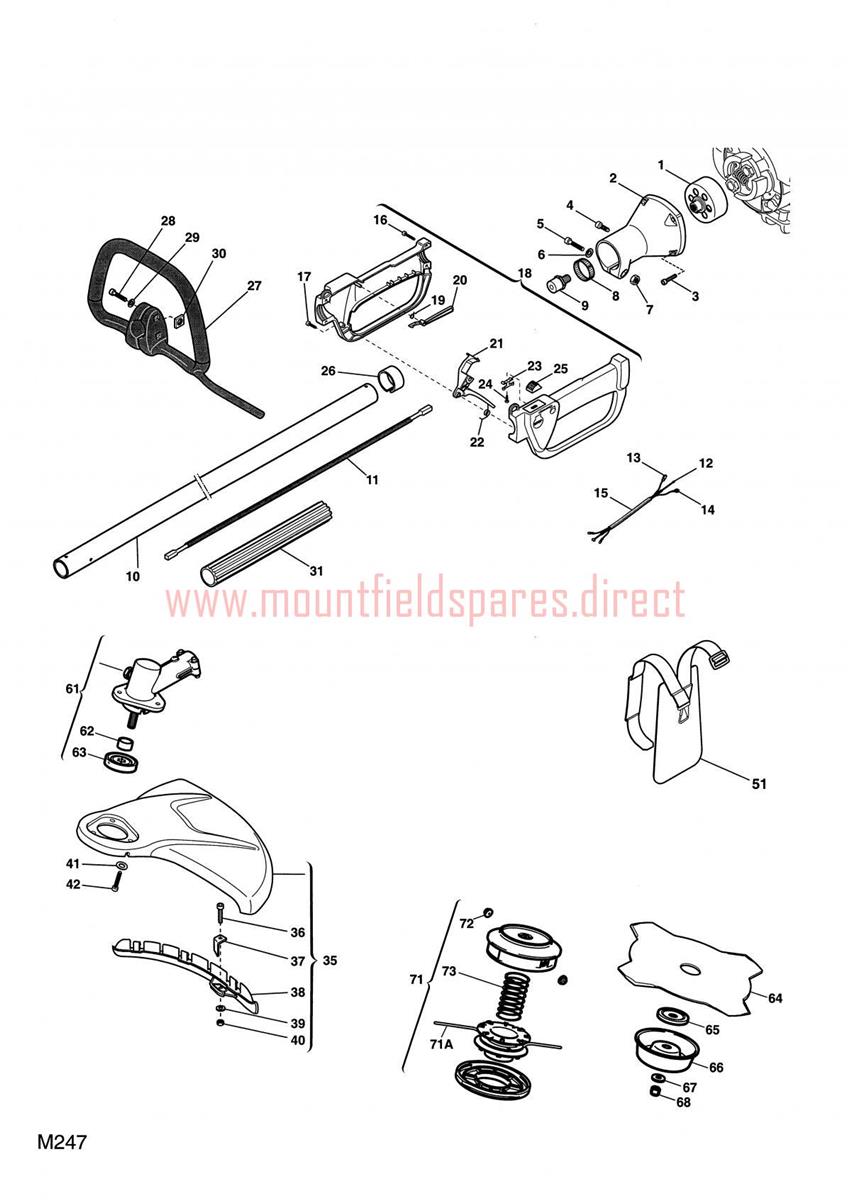

DRIVE SHAFT assembly details for Mountfield MB26 2005 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1911-4206-01	Clutch drum	N/A	POA
002	23782004/0	SUPPORT TRASM.ASSY 2009	£24.36	Add to
003	1911-3012-01	Screw	N/A	POA
004	1911-3025-01	Screw	N/A	POA
005	1911-3011-01	Screw	£4.01	Add to
006	1911-3266-01	Washer	N/A	POA
007	1911-4231-01	Nut	N/A	POA
008	23655002/0	Reduction	£4.01	Add to
009	1911-4176-01	Bearing hub	N/A	POA
010	1911-4223-01	Transmission tube	N/A	POA
011	1911-4118-01	Transmission shaft	N/A	POA
012	1911-3717-01	Throttle cable	N/A	POA
013	23065012/0	Coil-Switch Cable	£7.19	Add to
014	23065013/0	Ground cable	£7.19	Add to
015	1911-3703-01	Wire sheath	N/A	POA
016	2123030	TORX SELF-THREAD SCREW	£1.79	Add to
017	2123100	SCREW M4 8 x 13	£1.79	Add to
018	1911-3830-01	Handle assy	£127.54	Add to
019	1911-3687-01	Spring	N/A	POA
020	1911-3697-01	Safety lever	N/A	POA
021	1911-3696-01	Throttle lever	N/A	POA
022	1911-3089-01	Spring	N/A	POA
023	1911-3681-01	Stop plate	N/A	POA
024	1911-3656-01	Screw	N/A	POA
025	1911-3699-01	Stop knob	N/A	POA
026	3749920	Reduction	£4.01	Add to
027	1911-4166-01	Handle-front	N/A	POA
028	1911-3008-01	Screw	£4.01	Add to
029	2312090	FLAT WASHER D=5 x 10 x 1	£1.79	Add to
030	1911-3023-01	Nut	N/A	POA
031	1911-4152-01	Heat insulator	N/A	POA
035	1911-4217-01	Safety cover	N/A	POA
036	1911-3006-01	Screw	£4.01	Add to
037	1911-3077-01	Line cutter	N/A	POA
038	1911-4180-01	Protection	N/A	POA
039	2312150	WASHER 5.5 x 15 x 1.5	£1.79	Add to
040	1911-3022-01	Nut	£4.01	Add to
042	1911-3013-01	Screw	N/A	POA
051	1911-3724-01	Harness	N/A	POA
061	1911-4193-01	Gear case	N/A	POA
062	1911-4266-01	Collar	N/A	POA
063	1911-4267-01	Ring nut-upper	N/A	POA
064	1911-3179-01	Clearing blade	N/A	POA
065	1911-3680-01	Ring nut-lower	N/A	POA
066	1911-4242-01	Stabilizer	N/A	POA
067	1911-4228-01	Washer	N/A	POA
068	1911-4232-01	Nut	N/A	POA
071	323155000/0	NYLON HEAD [M10-FEMALE LH-THREAD]	£24.57	Add to
072	3643430	EYELET	£5.85	Add to
073	1911-3876-01	Spring	N/A	POA
099	9959905	SAFETY GOOGLES	£5.21	Add to
71A	1911-9008-04	Cutting line (2.4 mm)	£49.84	Add to
71A	1911-9008-08	Cutting line (2.4 mm)	£9.54	Add to
