CARBURETTOR

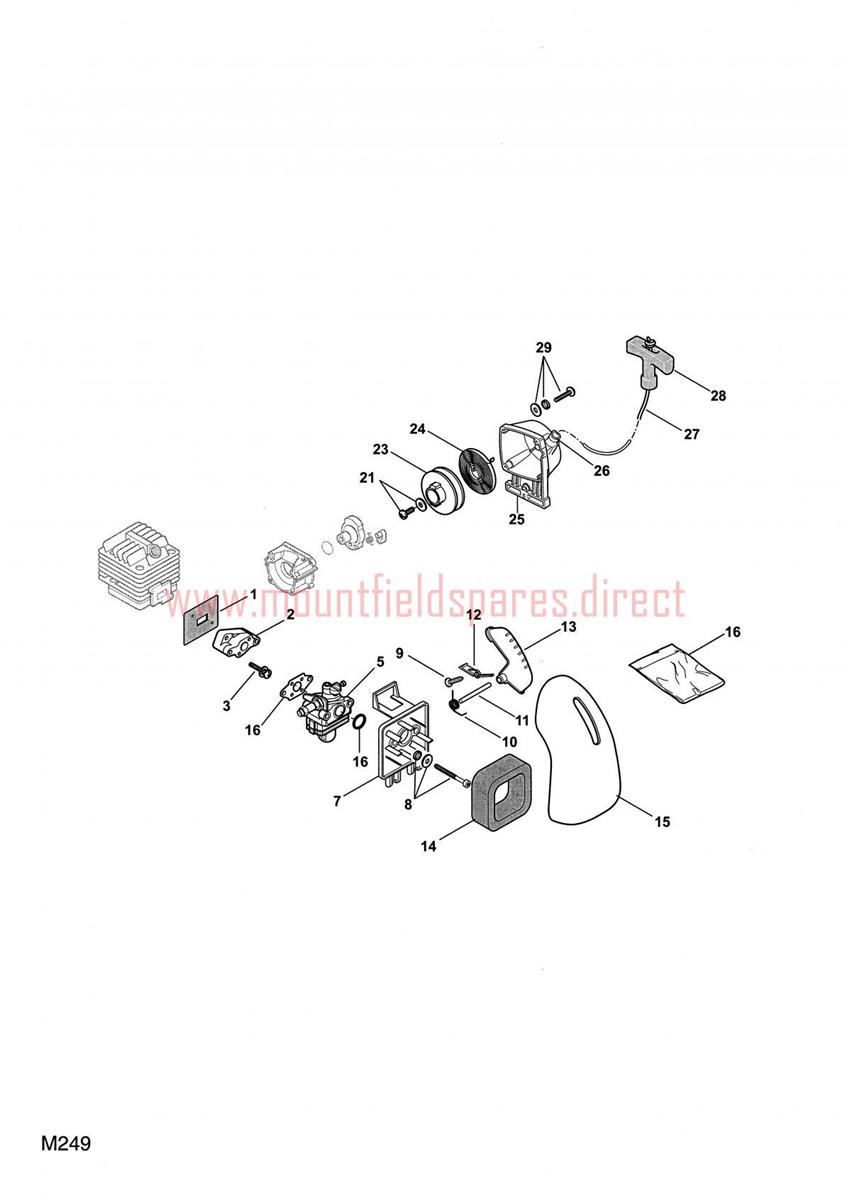

CARBURETTOR assembly details for Mountfield MT26 2005 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	6981011	INTAKE MANIFOLD GASKET	£2.38	Add to
002	6981010	INTAKE MANIFOLD (OBSOLETE)	N/A
003	6981108	Screw set	£3.64	Add to
005	1911-4122-01	Carburettor assy (OBSOLETE)	N/A
007	1911-4294-01	Air filter holder (OBSOLETE)	N/A
008	1911-4330-01	Screw set	N/A	POA
009	1911-4110-01	Screw	N/A	POA
010	1911-4320-01	Spring	N/A	POA
011	1911-4321-01	Pin	N/A	POA
012	1911-4322-01	Retainer	N/A	POA
013	1911-4332-01	Button	N/A	POA
014	1911-4295-01	Air filter	N/A	POA
015	6981119	ORANGE FILTER COVER (OBSOLETE) (OBSOLETE)	N/A
016	6981018	DIAPHRAGM GASKET (OBSOLETE)	N/A
021	1911-4326-01	Screw set	N/A	POA
023	1911-4301-01	Starter pulley	N/A	POA
024	6981025	STARTING SPRING	£5.12	Add to
025	1911-4299-01	Starter recoil case	N/A	POA
026	1911-4303-01	Rope guide	N/A	POA
027	1911-4304-01	Starter cord	N/A	POA
028	1911-4302-01	Starter handle	N/A	POA
029	6981116	SCREW OUTFIT	£1.79	Add to
