TRIMMER

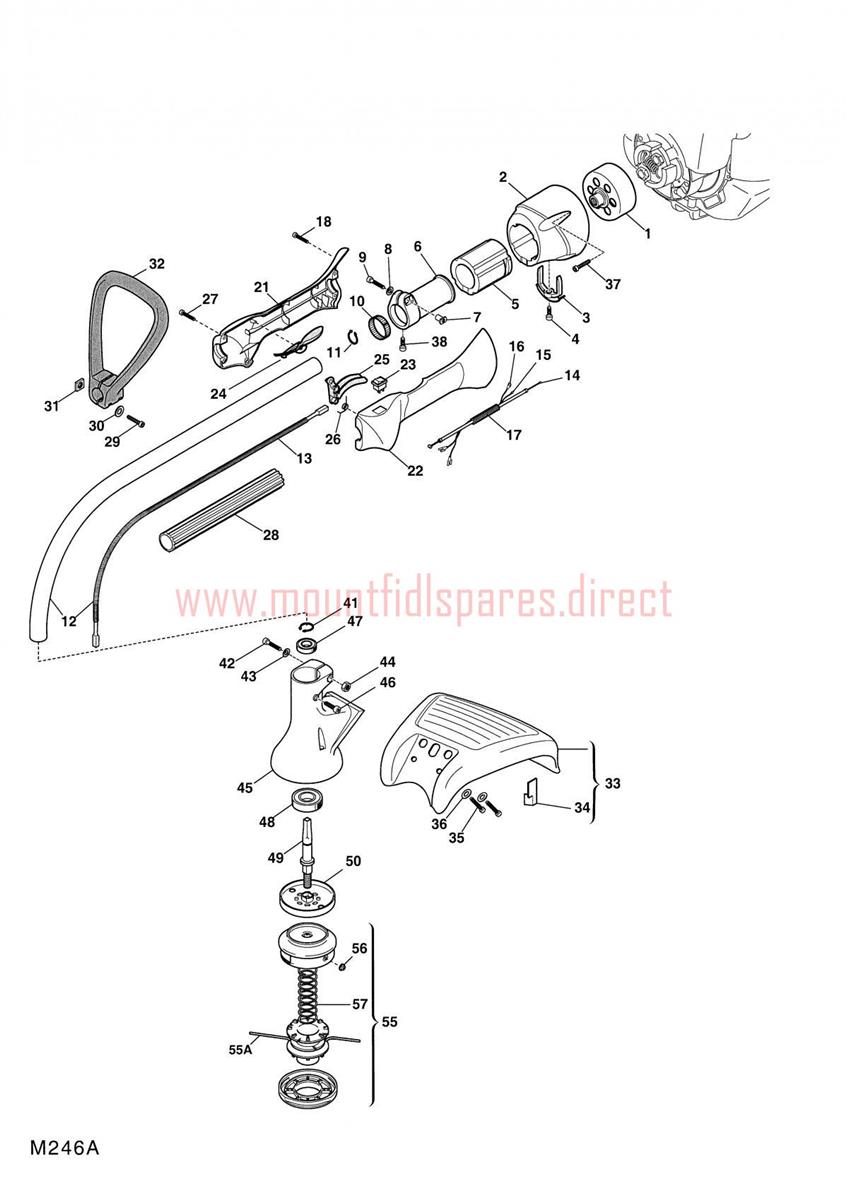

TRIMMER assembly details for Mountfield MT26 2006 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1911-4205-01	Clutch drum	N/A	POA
002	1911-4189-01	Transmission support	N/A	POA
003	1911-4154-01	Fork	N/A	POA
004	2123100	SCREW M4 8 x 13	£1.79	Add to
005	1911-4155-01	Grommet	N/A	POA
006	1911-4188-01	Support	N/A	POA
007	1911-4245-01	Bushing	N/A	POA
008	1911-3267-01	Washer	N/A	POA
009	2135040	TORX SCREW M5 x 18	£1.79	Add to
010	1911-4236-01	Reduction	N/A	POA
011	1911-4239-01	Snap ring	N/A	POA
012	1911-4224-01	Transmission tube	N/A	POA
013	1911-4117-01	Transmission shaft	N/A	POA
014	1911-4137-01	Throttle wire	N/A	POA
015	1911-4127-01	Cable	N/A	POA
016	1911-4132-01	Ground cable	N/A	POA
017	1911-4164-01	Wire sheath	N/A	POA
021	1911-4184-01	Handgrip-RH	N/A	POA
022	1911-4185-01	Handgrip-LH	N/A	POA
023	118800202/0	EXTINCTION SWITCH	£2.18	Add to
024	1911-4170-01	Safety lever	N/A	POA
025	1911-4169-01	Throttle lever	N/A	POA
026	1911-4173-01	Spring	N/A	POA
027	2123030	TORX SELF-THREAD SCREW	£1.79	Add to
028	1911-4152-01	Heat insulator	N/A	POA
029	1911-3008-01	Screw	£4.01	Add to
030	2312090	FLAT WASHER D=5 x 10 x 1	£1.79	Add to
031	1911-3023-01	Nut	N/A	POA
032	1911-4165-01	Handle-front	N/A	POA
033	1911-4216-01	Safety cover assy	N/A	POA
034	1911-3074-01	Line cutter blade	N/A	POA
036	2312150	WASHER 5.5 x 15 x 1.5	£1.79	Add to
037	1911-3012-01	Screw	N/A	POA
038	1911-3025-01	Screw	N/A	POA
042	1911-3011-01	Screw	£4.01	Add to
043	1911-3266-01	Washer	N/A	POA
044	1911-4231-01	Nut	N/A	POA
045	1911-4125-01	Gear case	N/A	POA
047	1911-4113-01	Ball bearing	N/A	POA
048	1911-3040-01	Ball bearing	N/A	POA
049	1911-4115-01	Head shaft	N/A	POA
050	1911-3073-01	Ring nut-upper	N/A	POA
055	323155001/1	NYLON HEAD [M10-FEMALE LH-THREAD]	£22.35	Add to
056	3643430	EYELET	£5.85	Add to
057	1911-4174-01	Spring	N/A	POA
099	9959905	SAFETY GOOGLES	£5.21	Add to
55A	1911-9008-04	Cutting line (2.4 mm)	£49.84	Add to
55A	1911-9008-08	Cutting line (2.4 mm)	£9.54	Add to
