BRUSH CUTTER

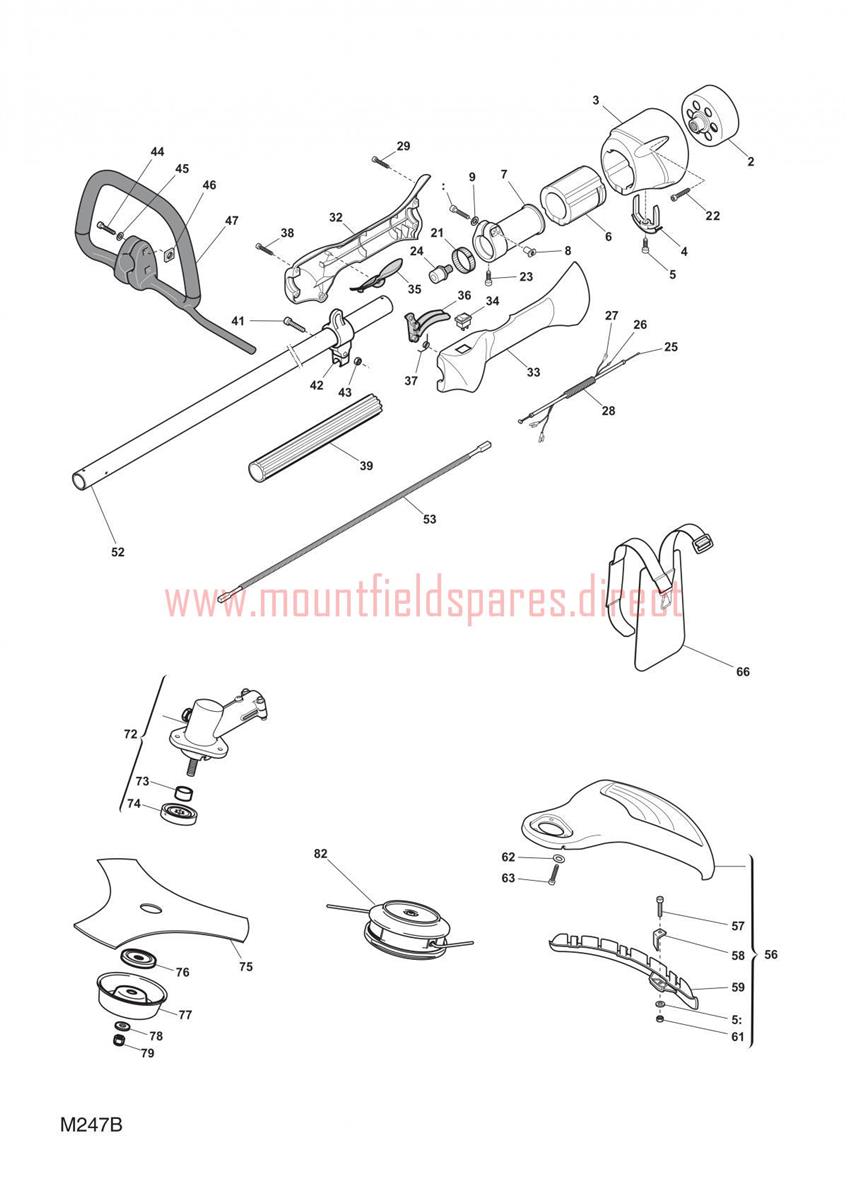

BRUSH CUTTER assembly details for Mountfield MB26 2007 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
00183050004/0Drum Ass'Y, Clutch£46.31 Add to
00223782005/0Support Trasm.Assy£16.51 Add to
00323232001/0Fork£5.58 Add to
0042123100SCREW M4 8 x 13£1.79 Add to
00523275000/0Grommet£12.29 Add to
00623782003/0Support£4.60 Add to
0073643470TUBE FIXING BUSHING TR. HONDA£3.69 Add to
0082312020FLAT WASHER 5 x 11 x 1£1.79 Add to
0092135040TORX SCREW M5 x 18£1.79 Add to
0103180560COMPENSATOR RING HONDA£5.19 Add to
0112135160SCREW TX M6 x 19£1.79 Add to
0122653090SCREW M5X11,5£1.79 Add to
01323445258/0Bearing Hub£12.54 Add to
01423066003/0Cable, Trottle£6.96 Add to
01523065000/0SWITCH-COIL CABLE 2009£6.53 Add to
01623065014/0Earth Cable£6.58 Add to
01723290000/0WIRE SHEATH 2009£5.78 Add to
021323700002/0RIGHT HANDGRIP£7.10 Add to
022323700003/0LEFT HANDGRIP£7.81 Add to
023118800202/0EXTINCTION SWITCH£2.18 Add to
02423315055/0Safety Lever£9.12 Add to
025323315054/0SAFETY LEVER£7.23 Add to
02623430551/1Spring (OBSOLETE) (OBSOLETE)N/A
0272123030TORX SELF-THREAD SCREW£1.79 Add to
02823170000/0FRONT HANDLE SPACER TR 1000 2009£5.58 Add to
03123780000/0Harness Support£5.66 Add to
0322412030NUT M5 x 5 x 8£1.79 Add to
0332135050TORX SCREW M5 x 30£1.79 Add to
0342312090FLAT WASHER D=5 x 10 x 1£1.79 Add to
0352461030SQUARE NUT M5 x 10 x 6£1.79 Add to
03623300001/0FRONT HANDLE 2009£30.54 Add to
04183869052/0Trasmission Pipe Ass.Y£88.27 Add to
04223020009/0TRANSMISSION SHAFT 2009£36.91 Add to
04583465003/0SAFETY COVER ASS.Y 2009£46.87 Add to
0462135030TORX SCREW M5 x 20£1.79 Add to
0473615000LINE CUTTER£8.32 Add to
04823600051/0DISC PROTECTION 2009£17.68 Add to
0492312150WASHER 5.5 x 15 x 1.5£1.79 Add to
0502432040NUT M5£1.79 Add to
0522135180TORX SCREW M5 x 12£1.79 Add to
0554253460SINGLE HARNESS£17.27 Add to
06123820000/0Gear Case AssyN/A POA
0626980307COLLAR 9124-330309£7.19 Add to
0636980338UPPER RING NUT£12.82 Add to
0646031172BLADE 3 TEETH 255mm£9.41 Add to
0653612650LOWER RING NUT£5.45 Add to
0663615300STABILIZER£16.78 Add to
0672321060WASHER 10.2 x 20 x 1.2£1.79 Add to
0682452090LEFT SELF-LOCKING NUT£5.73 Add to
071323155000/0NYLON HEAD [M10-FEMALE LH-THREAD]£24.57 Add to
0989959905SAFETY GOOGLES£5.21 Add to
0991911-9008-04Cutting line (2.4 mm)£49.84 Add to
0991911-9008-08Cutting line (2.4 mm)£9.54 Add to
