CARBURETTOR

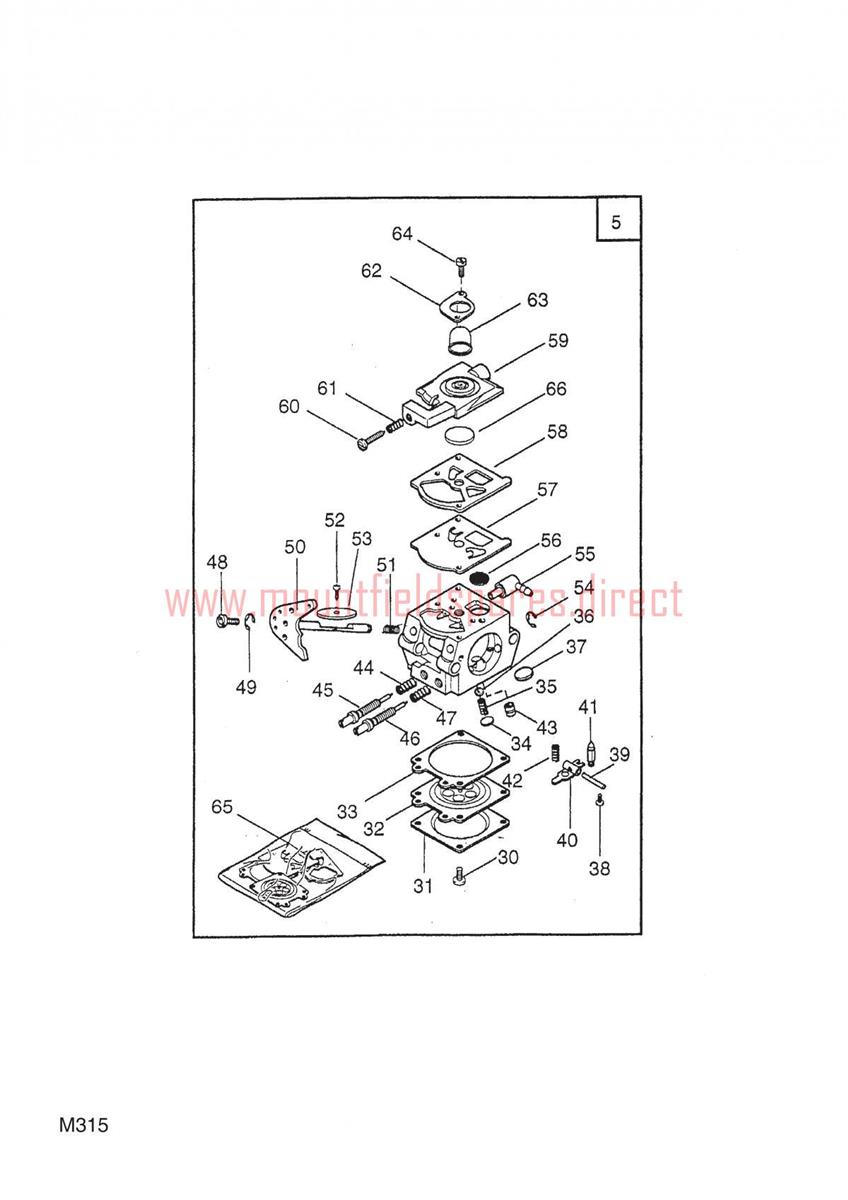

CARBURETTOR assembly details for Mountfield MB36D 2007 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0054253100CARBURETTOR£163.80 Add to
0302652430Screw£4.01 Add to
0313611510Cover£19.37 Add to
0343613640Plug£7.19 Add to
0353356080Retainer£4.01 Add to
0363781460SMALL FILTER£3.49 Add to
0373613630WELCH PLUG£3.96 Add to
0382652610Screw£4.01 Add to
0393640820Fulcrum pin£10.02 Add to
0403612470Control lever£14.79 Add to
0413630210INLET NEEDLE£10.02 Add to
0423654080Spring£7.19 Add to
0433642480VALVE£27.10 Add to
0443654100Spring£8.14 Add to
0452653360IDLE MIXTURE SCREW£24.62 Add to
0462653370HIGH MIXTURE SCREW£24.18 Add to
0473654110SPRING£4.11 Add to
0483642470SWIVEL SCREW£16.15 Add to
0493351090RETAINER£8.32 Add to
0503642460SHAFT SHUTTER£27.27 Add to
0513654120SPRING£4.59 Add to
0522652390Screw£10.16 Add to
0533613750Shutter£12.19 Add to
0543351060RETAINER RS£6.69 Add to
0553748600Fitting (OBSOLETE) (OBSOLETE)N/A
0563781450Screen£9.46 Add to
0593660490COVER PUMP ASSY 2004£64.31 Add to
0602653310IDLE SPEED SCREW£26.04 Add to
0613654140Spring£11.60 Add to
0623613730COVER PRIMER PUMP£18.82 Add to
0633744740PRIMER BULB (OBSOLETE) (OBSOLETE)N/A
0642653350Screw£4.01 Add to
0658724150Diaphragm/gasket setN/A POA
0663744750PUMP COVER VALVE WT 260/273/30£12.55 Add to
