DRIVE SHAFT

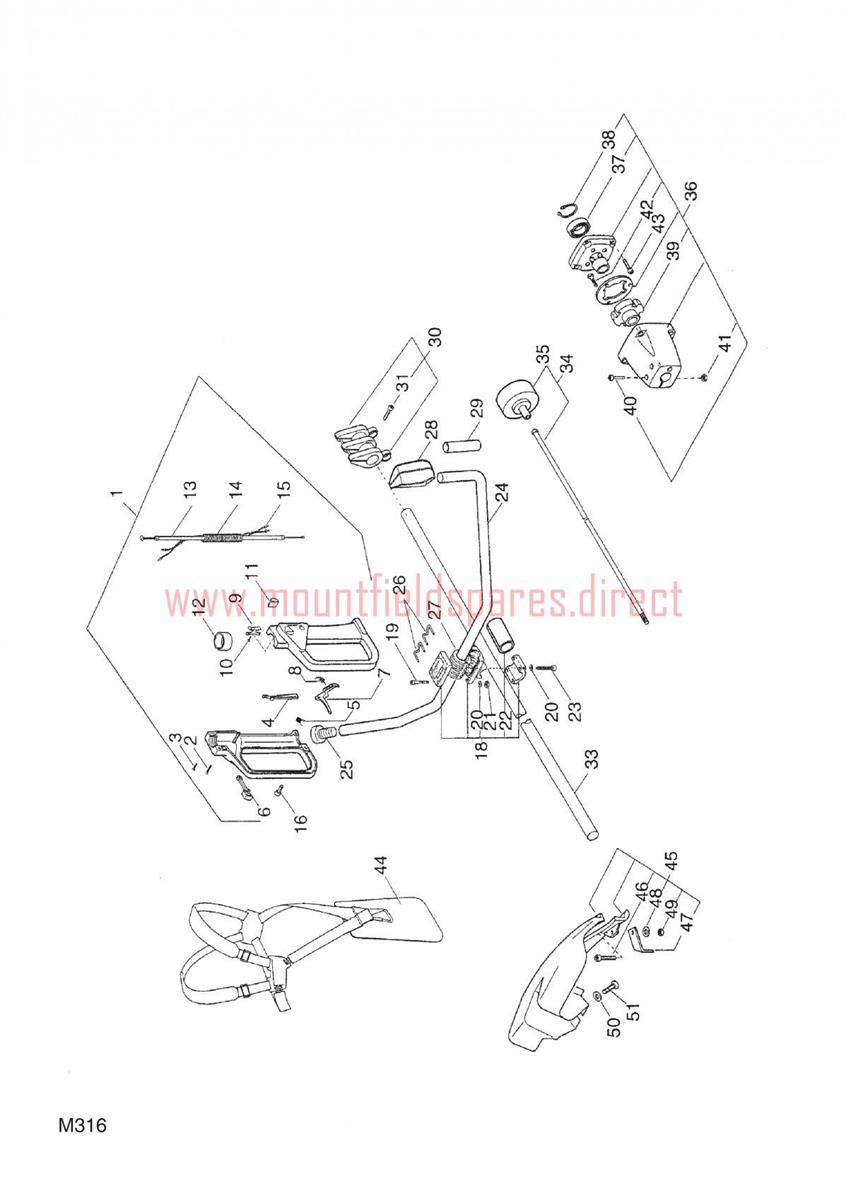

DRIVE SHAFT assembly details for Mountfield MB36D 2007 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0018562611Handle assy£134.66 Add to
0022123030TORX SELF-THREAD SCREW£1.79 Add to
0032135050TORX SCREW M5 x 30£1.79 Add to
0043743475SAFETY LEVER£3.15 Add to
0053654280/1Spring£4.60 Add to
0063743485Stop throttle lever£7.19 Add to
0073743465THROTTLE LEVER£4.82 Add to
0083654270/1Spring£4.60 Add to
0093612710Stop Plate£5.66 Add to
0102123070TORX SELF-THREAD SCREW£1.79 Add to
0113749270STOP KNOB£1.79 Add to
0123749910Reduction£4.01 Add to
0134251571THROTTLE CABLE£10.36 Add to
0143782920WIRE SHEATH£19.90 Add to
0158211130Stop wire£10.06 Add to
0162123100SCREW M4 8 x 13£1.79 Add to
0184250390SUPPORT ASS.Y£62.98 Add to
0192135120SCREW TX M5 x 40£1.79 Add to
0202312090FLAT WASHER D=5 x 10 x 1£1.79 Add to
021112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
0223721340RUBBER THICKNESS£2.47 Add to
0232123110SCREW 4.8 x 35£1.79 Add to
0248620510HANDLEBAR ASS.Y DUPLEX£113.03 Add to
0253749860PlugN/A POA
0263657470HANDLE LOCK DUPLEX£1.79 Add to
0273744160SHOCK ABSORBER£10.25 Add to
0284561640Hand guardN/A POA
0293744610LEFT KNOB£7.34 Add to
0308562510ASS.SUPPORTO BRETELLE VIP 34D42D£36.39 Add to
0312123140Screw£4.01 Add to
0338251201TRANSMISSION PIPE£54.01 Add to
0344251400TRANSMISSION SHAFT ASSY£50.22 Add to
0353L4121861/1CLUTCH DRUM£21.40 Add to
0368541000Transmission support£179.68 Add to
0373112170Bearing (OBSOLETE)N/A
0383353080CIRCLIP D=32mm£1.79 Add to
0393744260SHOCK ABSORBER£6.55 Add to
0402135130TORX SCREW M5 x 35£1.79 Add to
0412432040NUT M5£1.79 Add to
0422135040TORX SCREW M5 x 18£1.79 Add to
0432135160SCREW TX M6 x 19£1.79 Add to
0444253440SINGLE HARNESS£28.90 Add to
0458562763Safety cover assyN/A POA
0462135030TORX SCREW M5 x 20£1.79 Add to
0473614210LINE CUTTER BLADE£7.19 Add to
0482312150WASHER 5.5 x 15 x 1.5£1.79 Add to
0512135060TORX SCREW M5 x 25£2.00 Add to
