STARTER

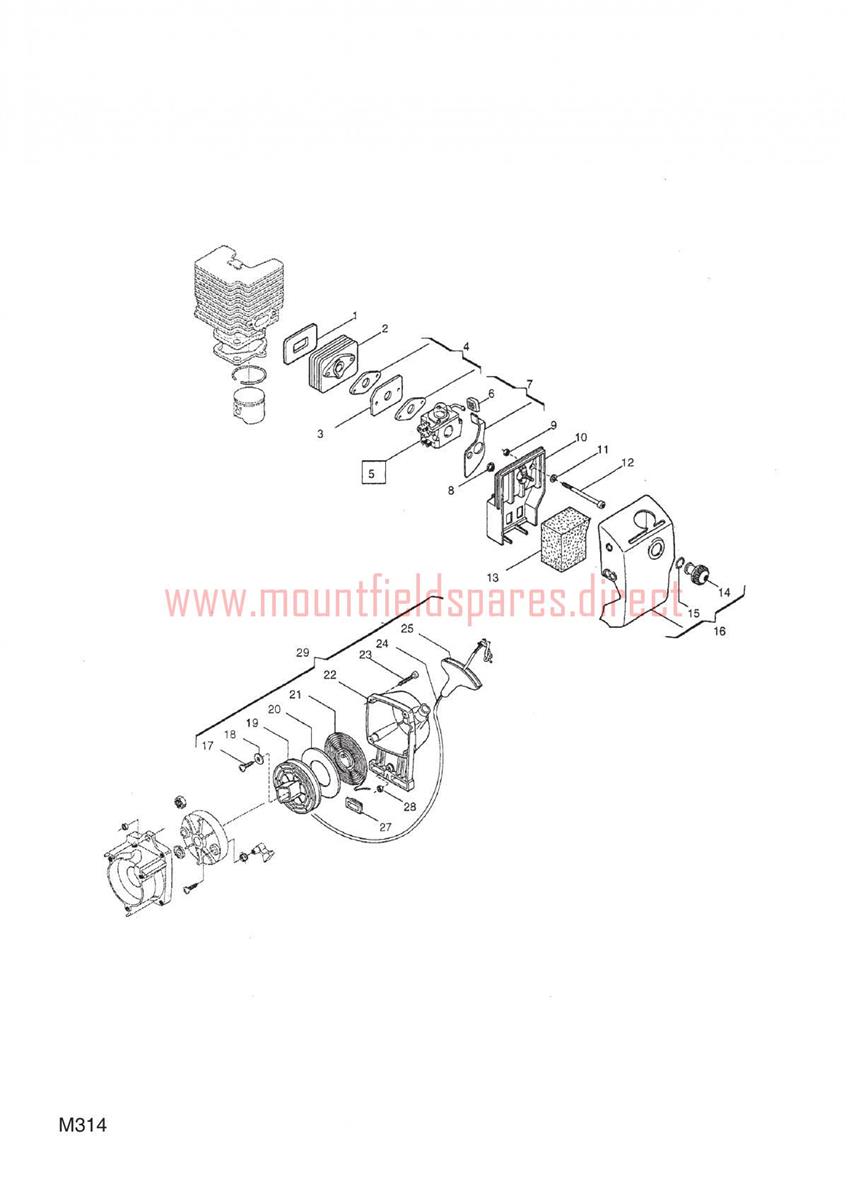

STARTER assembly details for Mountfield MB36D 2007 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0013724060INTAKE MANIFOLD GASKET (OBSOLETE) (OBSOLETE)N/A
0023749540INTAKE MANIFOLD£9.54 Add to
0033785040Heat blockN/A POA
0043724020INTAKE CARB. GASKET£5.19 Add to
0054253100CARBURETTOR£163.80 Add to
0063745550KNOB FOR AIR-LEVER£5.60 Add to
0078613450Choke lever (OBSOLETE) (OBSOLETE)N/A
0082382150Bush£7.19 Add to
0092382140Bush£7.19 Add to
0103749933FILTER BASE RED DC 21/40£16.55 Add to
0112312090FLAT WASHER D=5 x 10 x 1£1.79 Add to
0122135210TORX SCREW M5 x 75 (OBSOLETE) (OBSOLETE)N/A
0133781420AIR FILTER£2.06 Add to
0148749953COVER CAP AIR FILTER RED£13.80 Add to
0153356030Lock washer£4.01 Add to
0168562643Air cleaner cover-red (OBSOLETE) (OBSOLETE)N/A
0172123100SCREW M4 8 x 13£1.79 Add to
0183613420WASHER D.5 2 x 15 x 0.82£1.79 Add to
0194562220STARTER PULLEY£4.91 Add to
0203723640SPRING DISC£4.52 Add to
0214611480STARTER SPRING£9.00 Add to
0228562663RECOIL CASE [RED]£28.57 Add to
023124 Grower (OBSOLETE)N/A
0243784030RECOIL ROPE£2.47 Add to
0253750067STARTER HANDLE£2.74 Add to
0273745530GROMMET£2.00 Add to
0282432030NUT 25£1.79 Add to
0294251813RECOIL ASSEMBLY [RED]£72.10 Add to
