MT 25J TRIMMER

MT 25J TRIMMER assembly details for Mountfield MT25J 2007 model

Parts list

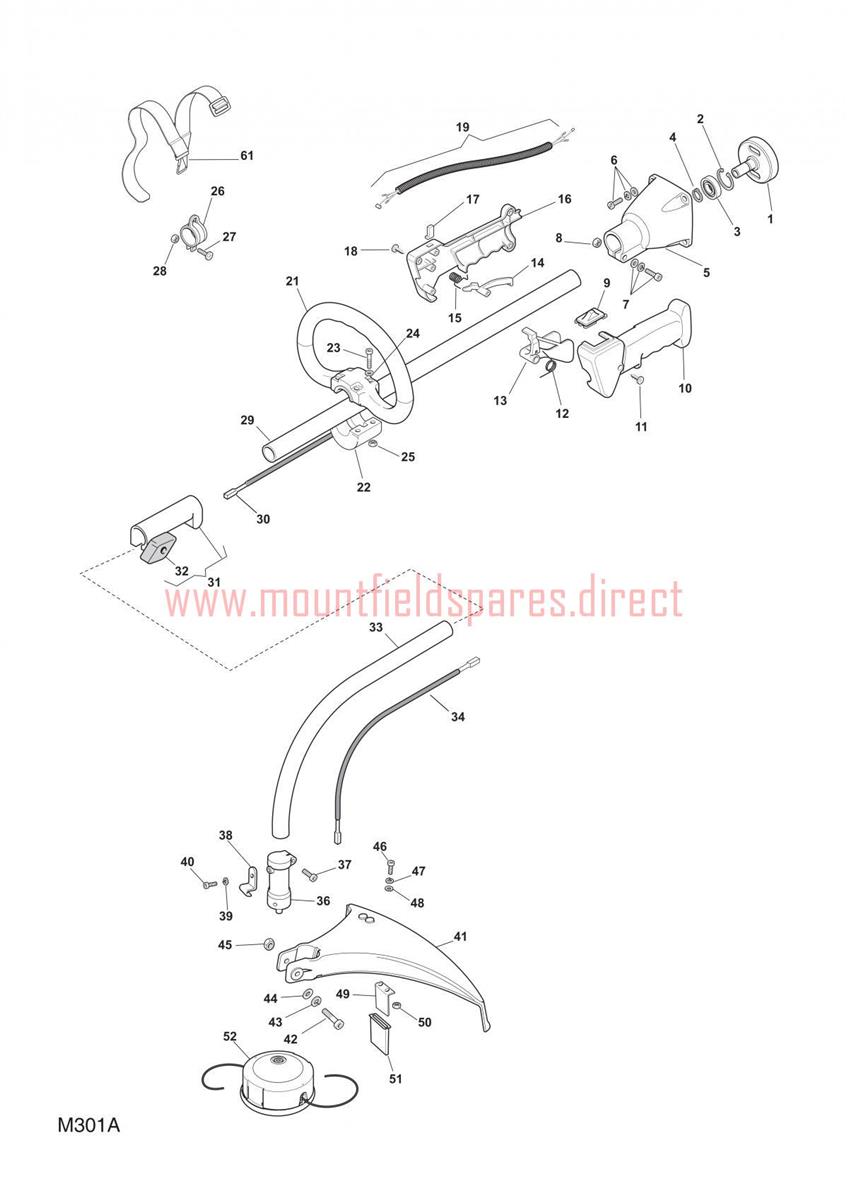

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0016981311Clutch drum£21.93 Add to
0026981271Ring£4.01 Add to
0036981256NEEDLE BEARING£18.69 Add to
0046981272Ring£4.01 Add to
0056981207TRANSMISSION SUPPORT£38.44 Add to
0066981100SCREWS OUTFIT (OBSOLETE) (OBSOLETE)N/A
0076981263Screw set£4.01 Add to
0086981142Nut£4.01 Add to
0096981230Switch£6.69 Add to
0106981231LEFT HALF-HANDGRIP£15.74 Add to
0116981269SCREW£3.64 Add to
0126981232Spring£6.58 Add to
0136981228Throttle lever£6.58 Add to
0146981229Safety lever£5.66 Add to
0156981226Spring£5.69 Add to
0166981225RIGHT HALF-HANDGRIP 2008£15.74 Add to
0176981227Button£5.66 Add to
0186981149SCREW£4.01 Add to
0196981233THROTTLE CABLE£14.58 Add to
0216981234FRONT HANDLE£34.11 Add to
0226981289Support-lower£9.16 Add to
0236981282Screw£4.01 Add to
0246981274Washer£4.01 Add to
0256981296Nut£4.01 Add to
0266981209Support-harness£13.73 Add to
0276981145SCREW (OBSOLETE)N/A
0286981141Nut£4.01 Add to
0296981291TRANSMISSION PIPE£16.16 Add to
0306981294TRANSMISSION SHAFT (L=660mm)£13.80 Add to
0316981310JOINT ASSEMBLY£54.30 Add to
0326981290Knob£7.19 Add to
0336981295Transmission tubeN/A POA
0366981304HEAD SHAFT ASSY£53.42 Add to
0376981114Screws Set£4.01 Add to
0386981305Plate£6.58 Add to
0396981303Washer£4.01 Add to
0406981299Screw£4.01 Add to
0416981307Safety cover (OBSOLETE) (OBSOLETE)N/A
0426981298Screw£4.01 Add to
0436981301Spring washer£4.01 Add to
0446981155Washer£4.01 Add to
0456981297Nut£4.01 Add to
0476981300Washer (OBSOLETE) (OBSOLETE) (OBSOLETE)N/A
0496981306Line cutter£7.50 Add to
0516981222Guard£7.19 Add to
0526981308NYLON HEAD [M8-FEMALE LH-THREAD]£31.63 Add to
0616981210HARNESS£24.34 Add to
0989959905SAFETY GOOGLES£5.21 Add to
0991911-9008-04Cutting line (2.4 mm)£49.84 Add to
0991911-9008-08Cutting line (2.4 mm)£9.54 Add to
