Engine 1

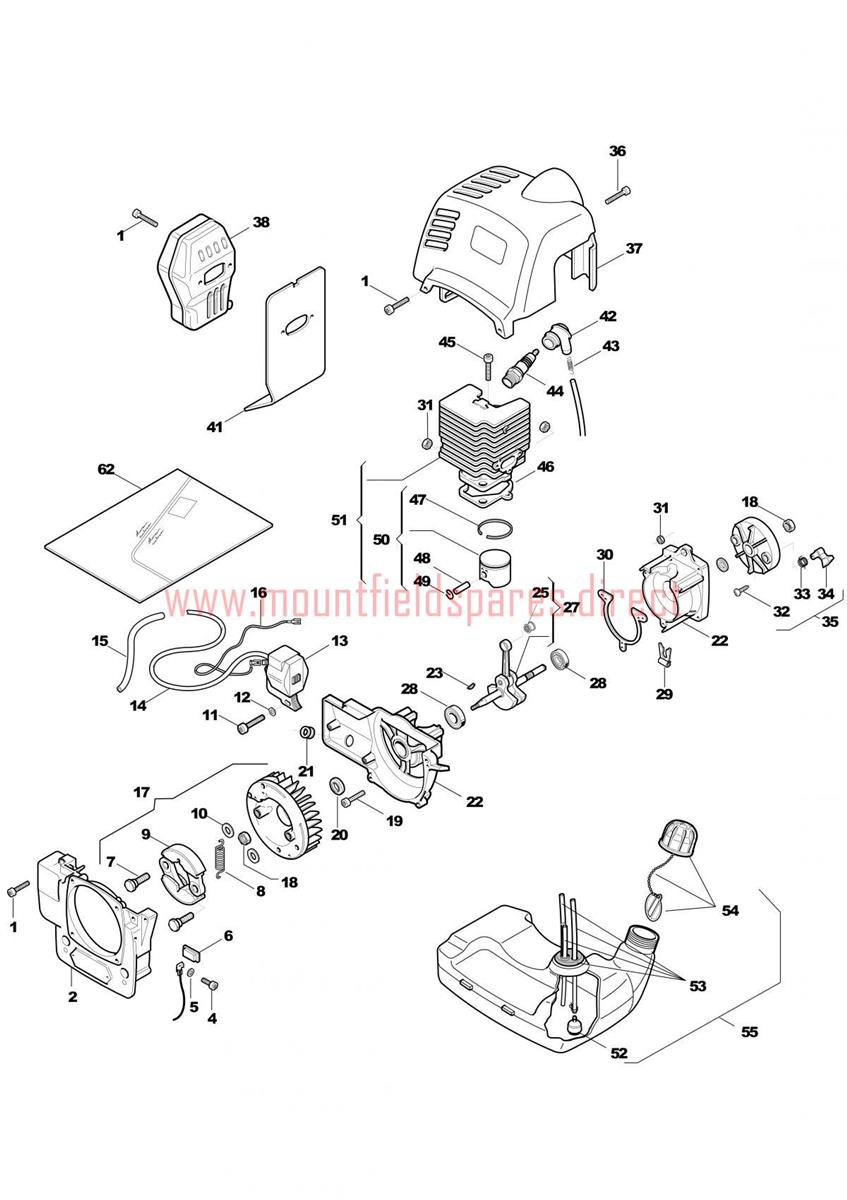

Engine 1 assembly details for Mountfield MB28D 2008 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	2135040	TORX SCREW M5 x 18	£1.79	Add to
002	4540820	TRANSM. SUPPORT CASE	£61.08	Add to
004	2132500	SCREW (OBSOLETE)	N/A
005	2312120	FLAT WASHER D=4X9X0,8	£1.79	Add to
006	3745530	GROMMET	£2.00	Add to
007	2653280	SCREW	£1.79	Add to
008	3654090	SPRING	£5.32	Add to
009	3660450	CLUTCH UNIT (OBSOLETE) (OBSOLETE)	N/A
010	2321100	Washer	N/A	POA
011	2132510	SCREW TCCE M4 x 22 - NLA	£1.79	Add to
012	2321050	WASHER 4 x 10 x 0.5	£1.79	Add to
013	3210665	ELECTRONIC COIL DC 21/25	£68.42	Add to
014	3211080	SPARK PLUG CABLE (OBSOLETE) (OBSOLETE)	N/A
015	3782040	WIRE JACKET	£11.05	Add to
016	3211410	Earth Cable	£7.19	Add to
017	4251470	Flywheel Ass.Y (Incl.7,9,10)	£179.01	Add to
018	2670120	DESC NOT_AVAILABLE	£3.78	Add to
019	2135050	TORX SCREW M5 x 30	£1.79	Add to
020	3121070	SEAL RING 12 x 22 x 4.55	£5.46	Add to
021	3745130	GROMMET	£1.79	Add to
022	8540680	Cranckase Ass.Y	£97.94	Add to
023	3151010	FLYWHEEL KEY 2.5 x 3.7 x 8.6 x 70	£1.79	Add to
024	3614480	Washer	£4.01	Add to
025	3116100	NEEDLE BEARING 8 x 12 x 10	£7.92	Add to
026	3614891	WASHER-PISTON	£4.23	Add to
027	8250830	CRANKSHAFT	£211.50	Add to
028	3112240	NEEDLE BEARING	£10.50	Add to
029	3750280	Massathread Guide	£7.19	Add to
030	3724031	GASKET	£3.83	Add to
031	2432040	NUT M5	£1.79	Add to
032	2123100	SCREW M4 8 x 13	£1.79	Add to
033	3654050	SPRING	£1.79	Add to
034	3749570	STARTER HOOK	£1.79	Add to
035	8540810	STARTER CUP ASSEMBLY	£40.39	Add to
036	2135030	TORX SCREW M5 x 20	£1.79	Add to
037	4563693	CAPOT CYLINDR. DC 22-31 RAL 30	£24.15	Add to
038	4122140	MUFFLER	£64.70	Add to
041	3724370	JOINT	£10.09	Add to
042	3744850	SPARK PLUG CAP	£2.74	Add to
043	3657530	SPARK PLUG SPRING	£1.79	Add to
044	3210024	SPARK PLUG CHAMPION RCJ7Y , NGK BPMR6A	£4.52	Add to
045	2135150	TORX SCREW M6 x 23	£1.79	Add to
046	3724250	CYLINDER GASKET	£2.00	Add to
047	3123210	PISTON RING 35	£5.32	Add to
048	3158220	PISTON PIN 8X26 MOD 25/30	£4.10	Add to
049	3356050	CIRCLIP	£1.79	Add to
050	8541100/1	Mod.31Piston Ass.Y D.35 (Incl.26,47-49)	£95.13	Add to
051	8541090/1	D35Cylinder-Piston Ass.Y D.35 (Incl.50)	£212.60	Add to
052	4253290	FUEL INTAKE FILTER	£12.68	Add to
053	8745541	GROMMET ASSEMBLY	£9.54	Add to
054	8741370	FUEL CAP	£5.19	Add to
055	4252530	ENS. RESERVOIR MIX STAR	£62.97	Add to
062	8724370	POCHETTE JOINTS STAR 22-31	£32.99	Add to
