Engine

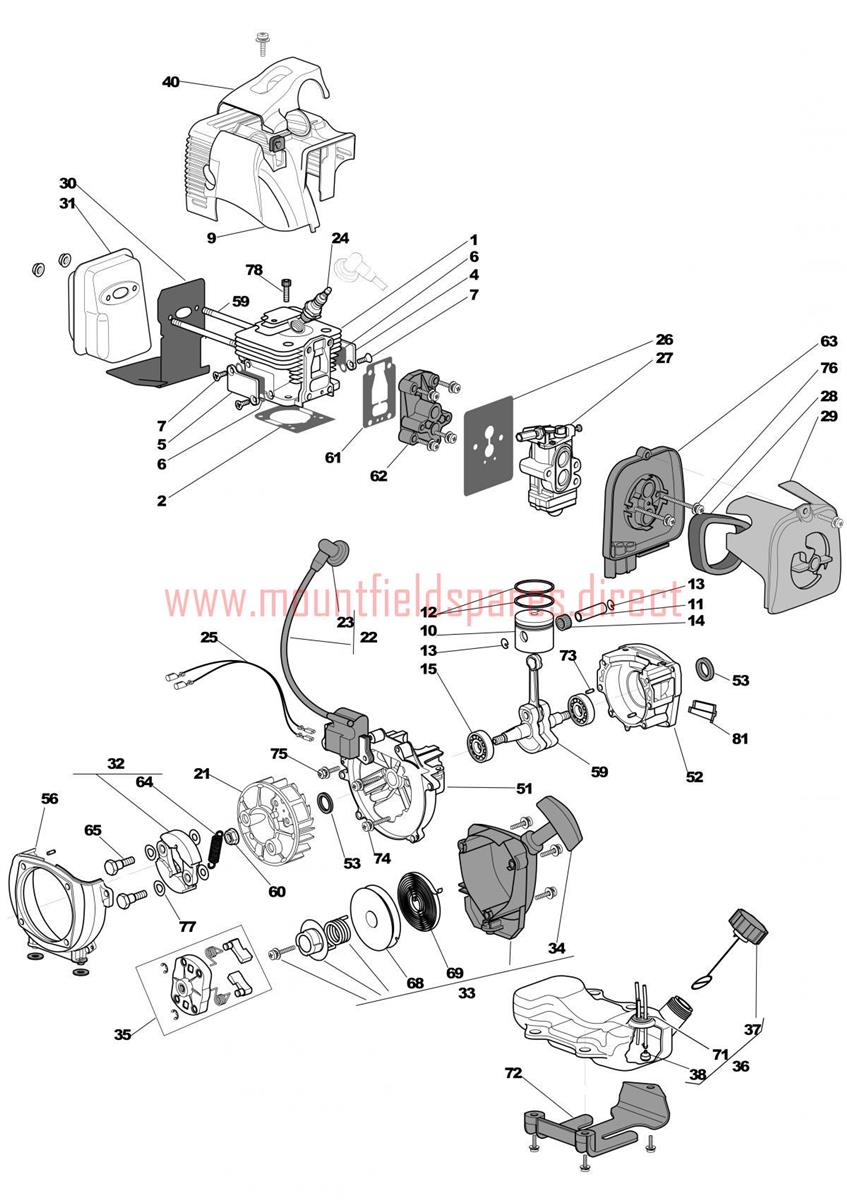

Engine assembly details for Mountfield MB2902 2008 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001123071010/0CYLINDER£200.38 Add to
002123280030/0Cylinder GasketN/A POA
004123109539/0CoverN/A POA
005123109540/0CoverN/A POA
006123280032/0Gasket£5.74 Add to
007123878054/0Screw£4.01 Add to
009123106024/0CYLINDER COVER RED£66.44 Add to
010123590004/0PISTON£37.08 Add to
011123760001/0PISTON PIN£7.92 Add to
012123204007/0PISTON RING£6.55 Add to
013123202002/0Washer, Piston Pin£4.01 Add to
014123235003/0NEEDLE BEARING£13.08 Add to
015123120005/0Nut£4.01 Add to
021123880005/0Flywheel£154.88 Add to
022123044008/0ELECTRONIC COIL KE04032AB -RIC£231.93 Add to
023123053002/0SPARK PLUG COVER£6.14 Add to
024123051000/0SPARK PLUG-CHAMPION RZ7C / NGK CMR6H£5.21 Add to
025183065021/0Earth CableN/A POA
026123280033/0GASKET£4.52 Add to
027123054022/0CARBURETTOR£220.85 Add to
028123220009/0AIR FILTER£5.46 Add to
029183090005/0FILTER COVER£13.49 Add to
030123280028/0GASKET£15.34 Add to
031183740006/0MufflerN/A POA
032183215005/0CLUTCH UNIT£58.87 Add to
033183058021/0Starter Ass.Y£89.48 Add to
034123300007/0Starter Handle£7.14 Add to
035123082002/0STARTER CUP ASSEMBLY£17.18 Add to
036183733005/0FUEL TANK ASSY£96.51 Add to
037183790008/0FUEL CAP£27.88 Add to
038183520004/0INTAKE FILTER£18.36 Add to
