Gear case

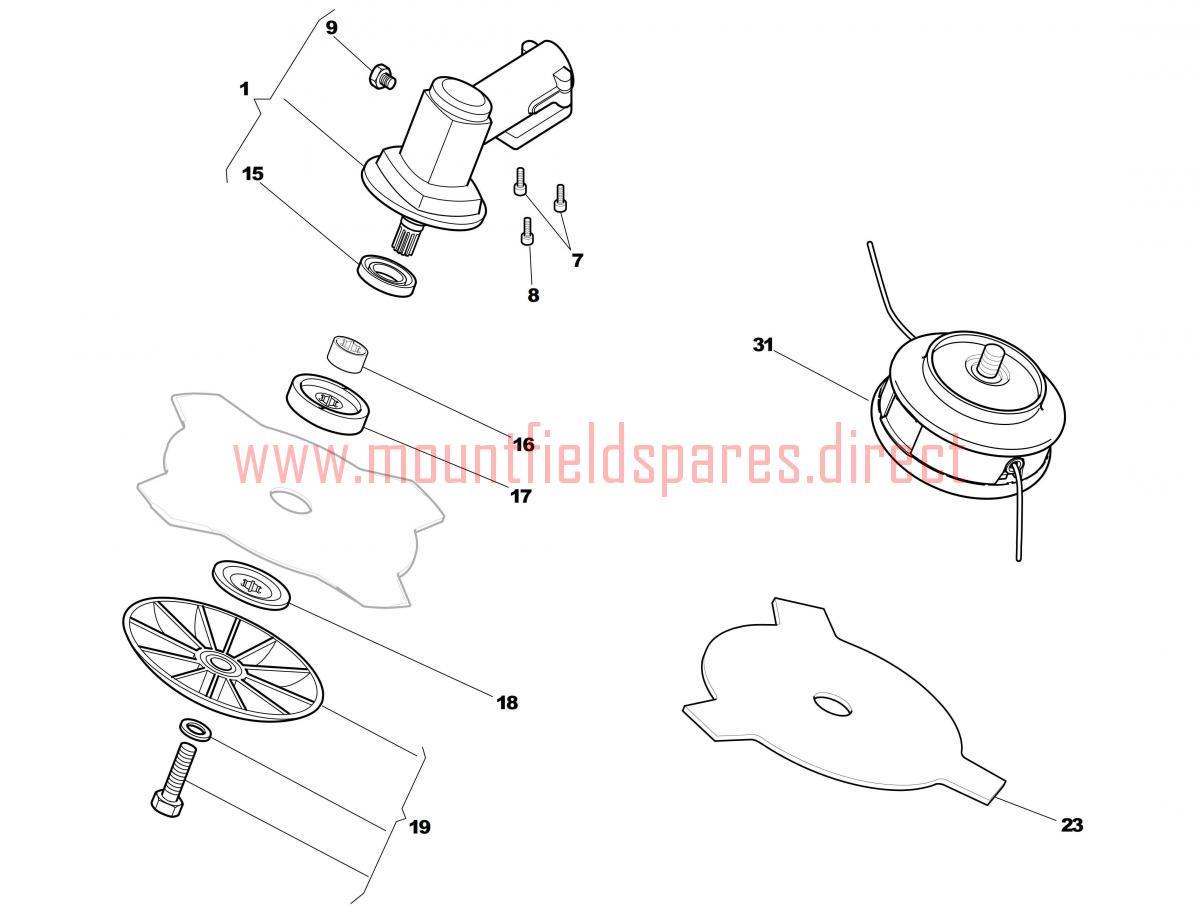

Gear case assembly details for Mountfield MB2902 2008 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0013L4252770/2GEAR CASE ASSY D=24£124.29 Add to
0072135050TORX SCREW M5 x 30£1.79 Add to
0082653090SCREW M5X11,5£1.79 Add to
0092653460SCREW£4.52 Add to
0153121180OIL SEAL 18 x 28 x 7£4.52 Add to
0163660680COLLAR£6.01 Add to
0173641650UPPER RING NUT£9.68 Add to
0183612650LOWER RING NUT£5.45 Add to
0194560610STABILIZER BOWL 127mm X 8M (OBSOLETE) (OBSOLETE)N/A
0202321230WASHER 8.2 x 18 x 1£1.79 Add to
0212653170BOLT M8 X 28£5.19 Add to
0236031172BLADE 3 TEETH 255mm£9.41 Add to
0313L4353240/1NYLON HEAD [M8-MALE LH-THREAD]£23.87 Add to
