Handle-transmission

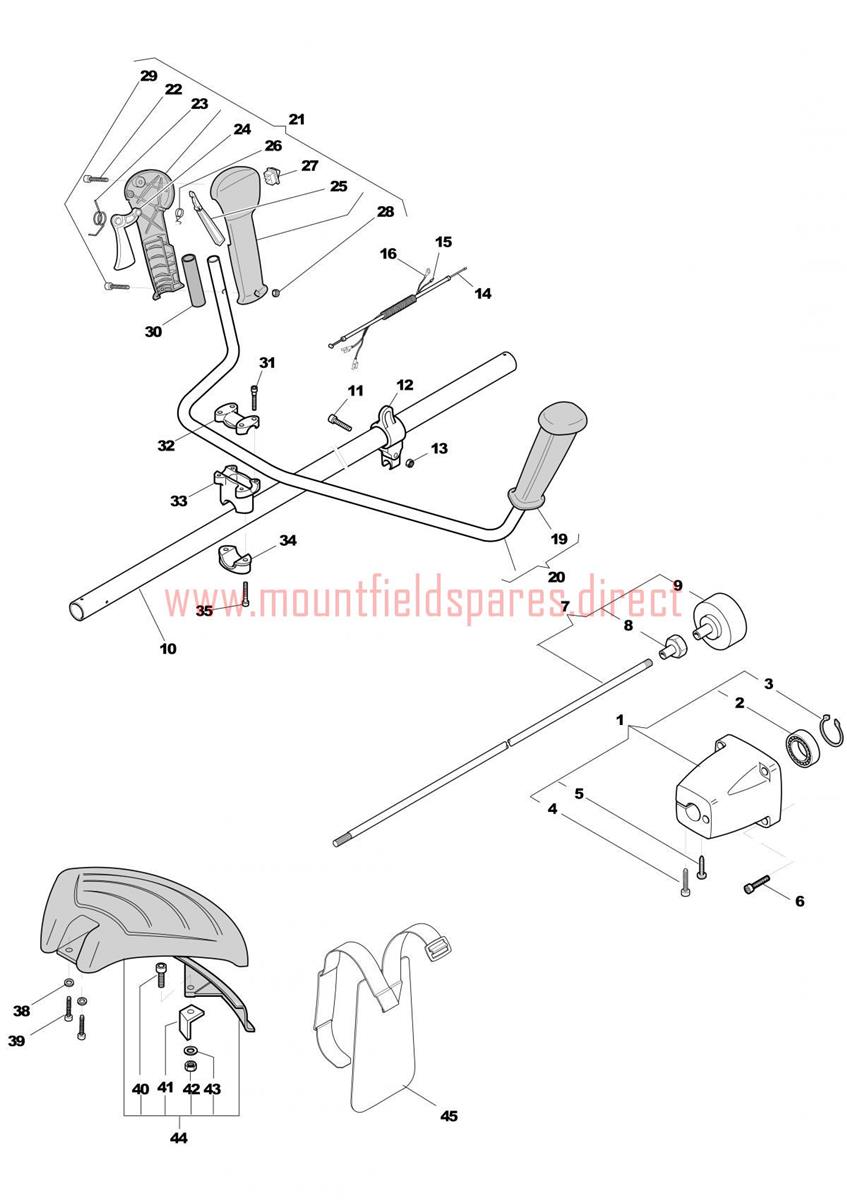

Handle-transmission assembly details for Mountfield MB2902 2008 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0018561600SUPPORT TRANSMISSION ASSY VIP£34.35 Add to
0023112170Bearing (OBSOLETE)N/A
0033353080CIRCLIP D=32mm£1.79 Add to
0042123140Screw£4.01 Add to
0052123150Screw£4.01 Add to
0062135160SCREW TX M6 x 19£1.79 Add to
0074251410TRANSMISSION SHAFT ASSEMBLY£46.61 Add to
0083642221Bearing Hub (OBSOLETE)N/A
0094121881/1Clutch Drum£20.50 Add to
01083869052/0Trasmission Pipe Ass.Y£88.27 Add to
0112135040TORX SCREW M5 x 18£1.79 Add to
01223780000/0Harness Support£5.66 Add to
0132412030NUT M5 x 5 x 8£1.79 Add to
014123066014/0THROTTLE WIRE£8.28 Add to
015123065024/0Coil-Switch Cable£5.63 Add to
016123065025/0Earth Cable£5.63 Add to
01923395050/0Left Handle£11.89 Add to
02083394003/0Handle Ass.Y£47.47 Add to
0218563830THROTTLE HANDLE ASSEMBLY (OBSOLETE) (OBSOLETE)N/A
0222123030TORX SELF-THREAD SCREW£1.79 Add to
0233654270/1Spring£4.60 Add to
024323315083/0THROTTLE LEVER [RED]£2.00 Add to
0253743441SAFETY LEVER£1.79 Add to
0263654280/1Spring£4.60 Add to
027118800202/0EXTINCTION SWITCH£2.18 Add to
028112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
0292135050TORX SCREW M5 x 30£1.79 Add to
03023655001/0REDUCTION 2009£7.71 Add to
0312135060TORX SCREW M5 x 25£2.00 Add to
0323L4541500/1UPPER HANDLE CLAMP£22.08 Add to
0333L4541490/1HANDLE CLAMP£46.61 Add to
0382312150WASHER 5.5 x 15 x 1.5£1.79 Add to
0384541510LOWER HANDLE CLAMP£19.77 Add to
0402135030TORX SCREW M5 x 20£1.79 Add to
0413615000LINE CUTTER£8.32 Add to
0422432040NUT M5£1.79 Add to
0443L8563570/1SAFETY COVER ASSEMBLY£21.83 Add to
0454253460SINGLE HARNESS£17.27 Add to
