Handle-transmission

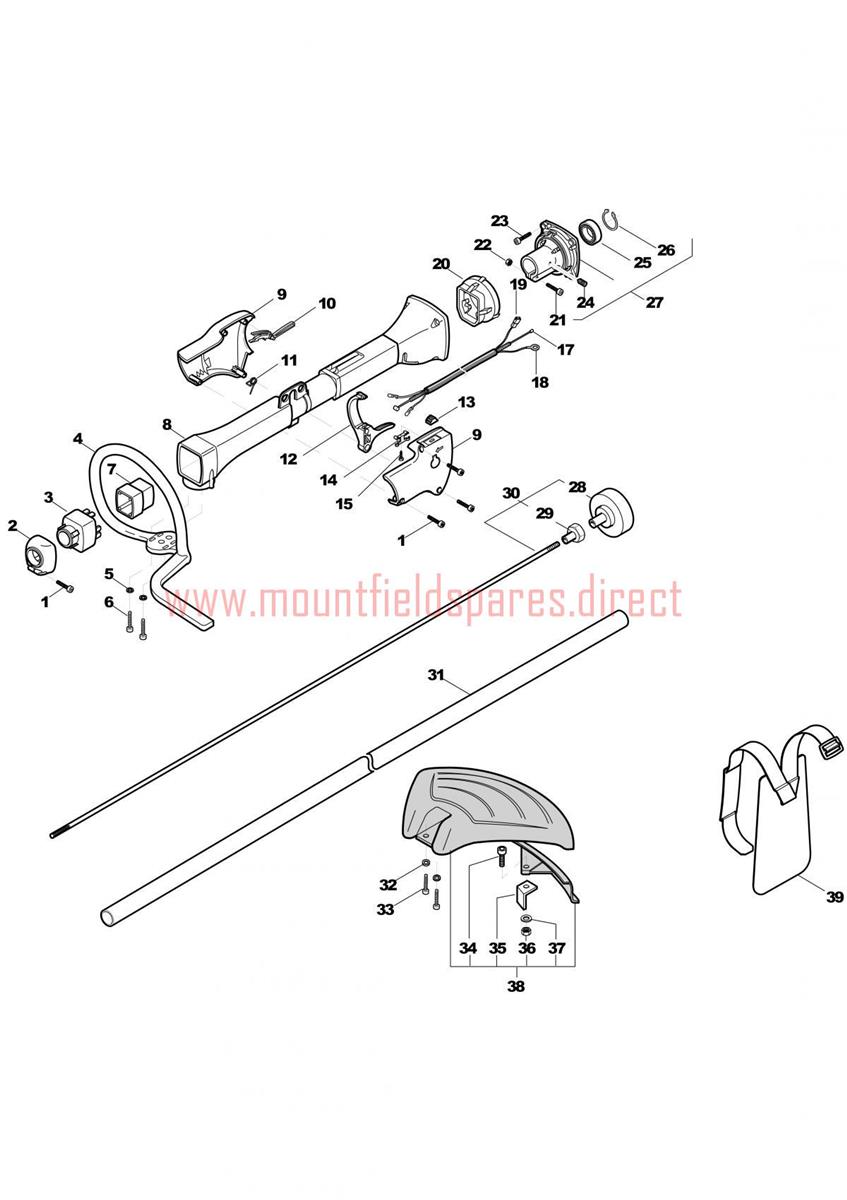

Handle-transmission assembly details for Mountfield MB3501 2008 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0012123030TORX SELF-THREAD SCREW£1.79 Add to
0023750330Front Housing Support£6.88 Add to
0033744290Front Shock Absorber£12.98 Add to
0044563560FRONT KNOB£10.23 Add to
0052312150WASHER 5.5 x 15 x 1.5£1.79 Add to
0062123140Screw£4.01 Add to
0073750340Front Step-Down Spacer£5.97 Add to
0084563531TRANSMISSION HOUSING£13.77 Add to
0098563540HANDGRIP HOUSING COUPLE£8.14 Add to
0103743630Safety Lever£6.58 Add to
0113654490THROTTLE LEVER SPRING£1.79 Add to
0123743620Throttle Lever£6.58 Add to
0133749270STOP KNOB£1.79 Add to
0143612710Stop Plate£5.66 Add to
0152123070TORX SELF-THREAD SCREW£1.79 Add to
017123066012/0Cable, TrottleN/A POA
018123065030/0Earth Cable (Black)N/A POA
019123065029/0Coil-Switch Cable (Red)N/A POA
0203744300REAR SHOCK ABSORBER£4.90 Add to
0212135150TORX SCREW M6 x 23£1.79 Add to
0222432030NUT 25£1.79 Add to
0232135160SCREW TX M6 x 19£1.79 Add to
0242126050SCREW (OBSOLETE)N/A
0253112170Bearing (OBSOLETE)N/A
0263353080CIRCLIP D=32mm£1.79 Add to
0273L8520990/3TRANSMISSION SUPPORT HUB£6.94 Add to
0283L4121861/1CLUTCH DRUM£21.40 Add to
0293642191BEARING HUB£2.00 Add to
0304251400TRANSMISSION SHAFT ASSY£50.22 Add to
0314251204TRANSMISSION PIPE D=26£69.78 Add to
0332135060TORX SCREW M5 x 25£2.00 Add to
0342135030TORX SCREW M5 x 20£1.79 Add to
0353615000LINE CUTTER£8.32 Add to
0362432040NUT M5£1.79 Add to
0383L8563570/1SAFETY COVER ASSEMBLY£21.83 Add to
0394253460SINGLE HARNESS£17.27 Add to
