Engine

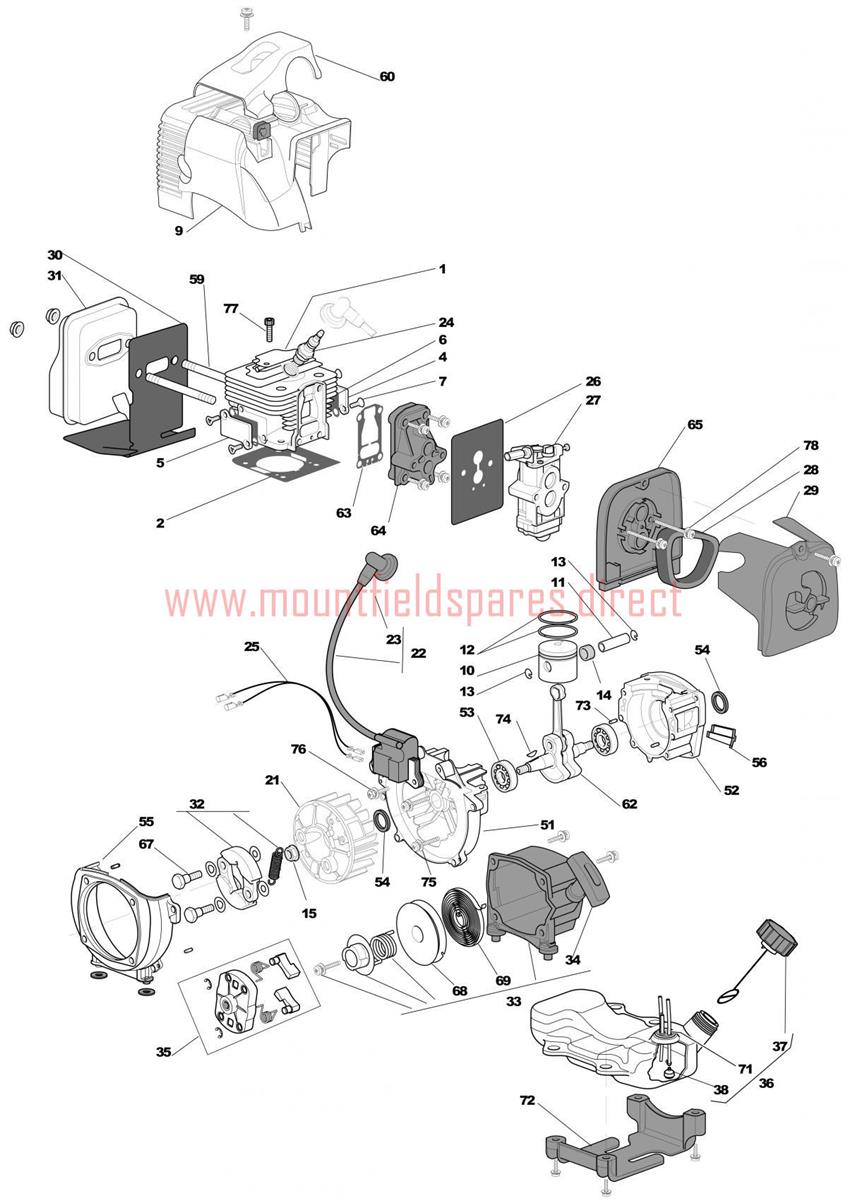

Engine assembly details for Mountfield MB3502 2008 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	123071011/0	CYLINDER	£225.56	Add to
002	123280031/0	Cylinder Gasket	N/A	POA
004	123109539/0	Cover	N/A	POA
005	123109540/0	Cover	N/A	POA
006	123280032/0	Gasket	£5.74	Add to
007	123878054/0	Screw	£4.01	Add to
009	123106024/0	CYLINDER COVER RED	£66.44	Add to
010	123590005/0	PISTON	£54.79	Add to
011	123760002/0	PISTON PIN	£6.87	Add to
012	123204006/0	PISTON RING	£12.00	Add to
013	123202003/0	LOCK RING	£1.38	Add to
014	123235004/0	NEEDLE BEARING	£17.86	Add to
015	123120005/0	Nut	£4.01	Add to
021	123880006/0	Flywheel	£154.88	Add to
022	123044009/0	ELECTRONIC COIL KE04034AA -RIC	£301.11	Add to
023	123053002/0	SPARK PLUG COVER	£6.14	Add to
024	123051000/0	SPARK PLUG-CHAMPION RZ7C / NGK CMR6H	£5.21	Add to
025	183065022/0	Earth Cable	N/A	POA
026	123280033/0	GASKET	£4.52	Add to
027	123054023/0	CARBURETTOR	£211.50	Add to
028	123220009/0	AIR FILTER	£5.46	Add to
029	183090005/0	FILTER COVER	£13.49	Add to
030	123280029/0	GASKET	£11.32	Add to
031	183740007/0	MUFFLER	£83.91	Add to
032	183215004/0	CLUTCH ASSY	£58.88	Add to
033	183058022/0	STARTER ASSY	£104.37	Add to
034	123300007/0	Starter Handle	£7.14	Add to
035	123082003/0	STARTER CUP ASSY	£18.12	Add to
036	183733006/0	FUEL TANK ASSEMBLY	£116.11	Add to
037	183790008/0	FUEL CAP	£27.88	Add to
038	183520004/0	INTAKE FILTER	£18.36	Add to
