Handle-transmission

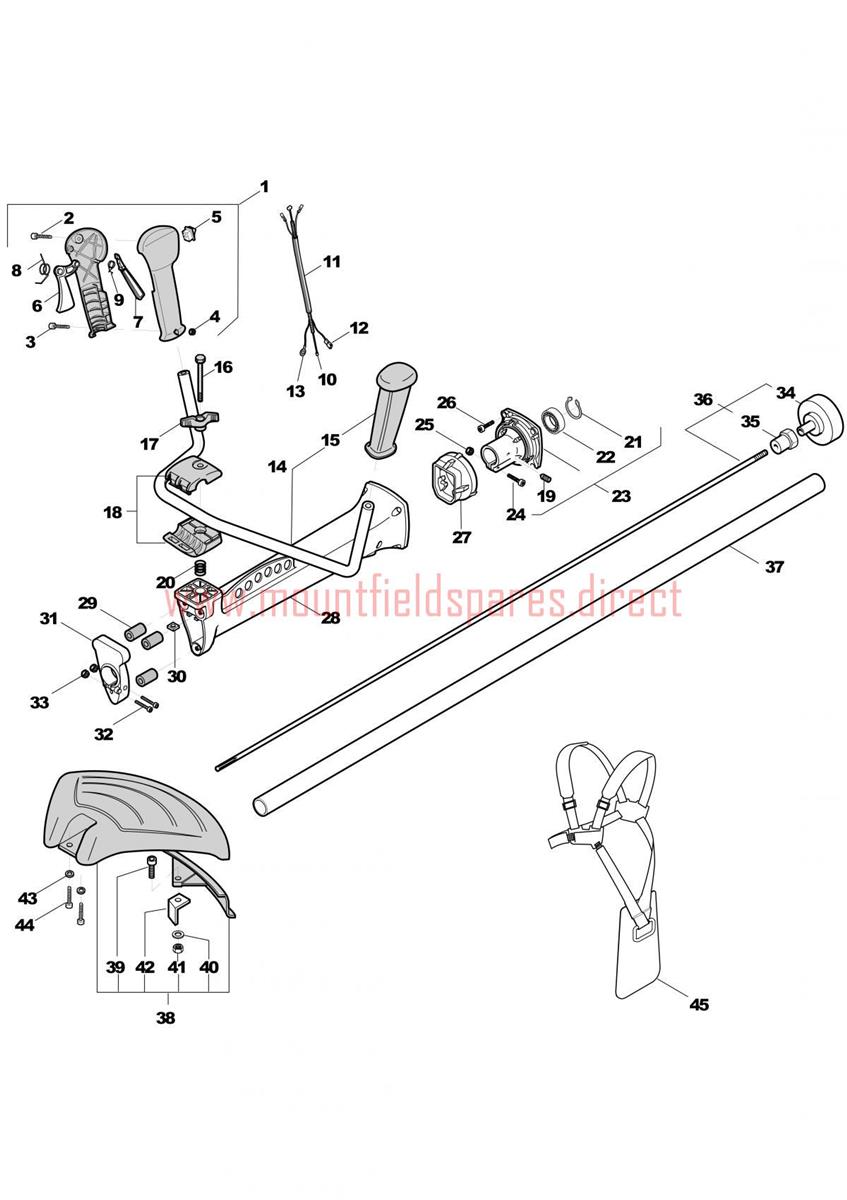

Handle-transmission assembly details for Mountfield MB3502 2008 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0018563830THROTTLE HANDLE ASSEMBLY (OBSOLETE) (OBSOLETE)N/A
0022123030TORX SELF-THREAD SCREW£1.79 Add to
0032135050TORX SCREW M5 x 30£1.79 Add to
004112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
005118800202/0EXTINCTION SWITCH£2.18 Add to
006323315083/0THROTTLE LEVER [RED]£2.00 Add to
0073743441SAFETY LEVER£1.79 Add to
0083654270/1Spring£4.60 Add to
0093654280/1Spring£4.60 Add to
010123066013/0THROTTLE WIRE£8.52 Add to
012123065031/0Coil-Switch Cable (Red)£5.63 Add to
013123065032/0Earth Cable (Black)£5.63 Add to
0144252840/1Handle£32.40 Add to
0153744860/1Left Knob£14.67 Add to
0162112580SCREW£1.79 Add to
0173750480WING NUT£2.06 Add to
0188521070HAND GRIP SUPPORT£27.27 Add to
0192126050SCREW (OBSOLETE)N/A
0203654530SPRING£2.74 Add to
0213353080CIRCLIP D=32mm£1.79 Add to
0223112170Bearing (OBSOLETE)N/A
0233L8520990/3TRANSMISSION SUPPORT HUB£6.94 Add to
0242135150TORX SCREW M6 x 23£1.79 Add to
0252432030NUT 25£1.79 Add to
0262135160SCREW TX M6 x 19£1.79 Add to
0273744330Rear Shock Absorber£7.14 Add to
0283L4563850/2TRANSMISSION HOUSING£17.18 Add to
0293744320FRONT SHOCK ABSORBER£4.11 Add to
0303615190NUT DC 36D-55D£1.79 Add to
0314563860FRONT HOUSING SUPPORT D.26£4.23 Add to
0322135060TORX SCREW M5 x 25£2.00 Add to
0343L4121861/1CLUTCH DRUM£21.40 Add to
0353642191BEARING HUB£2.00 Add to
0364251400TRANSMISSION SHAFT ASSY£50.22 Add to
0374251204TRANSMISSION PIPE D=26£69.78 Add to
0383L8563570/1SAFETY COVER ASSEMBLY£21.83 Add to
0392135030TORX SCREW M5 x 20£1.79 Add to
0402312150WASHER 5.5 x 15 x 1.5£1.79 Add to
0412432040NUT M5£1.79 Add to
0423615000LINE CUTTER£8.32 Add to
0454253440SINGLE HARNESS£28.90 Add to
