Engine 1

Engine 1 assembly details for Mountfield MB4401 2008 model

Parts list

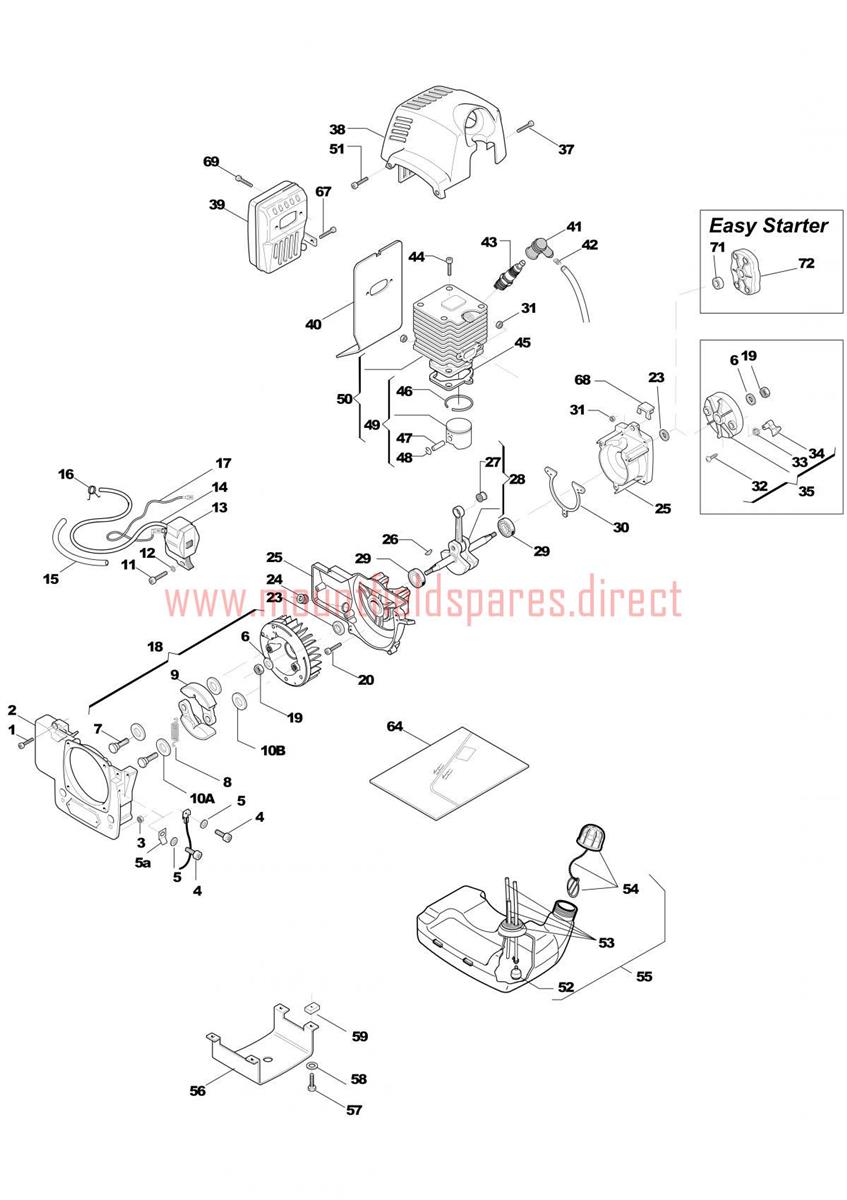

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	23878016/0	Screw	£4.01	Add to
002	323208409/0	TRANSMISSION SUPPORT	£26.18	Add to
003	2461030	SQUARE NUT M5 x 10 x 6	£1.79	Add to
004	2132500	SCREW (OBSOLETE)	N/A
005	2312120	FLAT WASHER D=4X9X0,8	£1.79	Add to
006	2350040	CORRUGATED WASHER - NLA	£1.79	Add to
007	2653213	SCREW	£4.78	Add to
008	3654040	CLUTCH SPRING	£3.41	Add to
009	3660430/1	Clutch Unit Mod.Piston Ass.Y D.42	£24.48	Add to
011	2135060	TORX SCREW M5 x 25	£2.00	Add to
012	2321150	Washer	£4.01	Add to
013	23044001/0	Electronic Coil	£55.11	Add to
014	3211080	SPARK PLUG CABLE (OBSOLETE) (OBSOLETE)	N/A
015	3782040	WIRE JACKET	£11.05	Add to
016	3657450	Clamp	£8.58	Add to
017	3211415	Earth Cable	£7.19	Add to
018	8252500/1	Flywheel Ass.Y X Mod. Piston D.42 (Incl.7-10)	£153.58	Add to
019	2412100	Nut	£4.01	Add to
020	2135130	TORX SCREW M5 x 35	£1.79	Add to
023	3121120	OR-RING 15 x 27 x 55.5	£17.45	Add to
024	3745130	GROMMET	£1.79	Add to
025	383084000/0	CRANKASE ASSY	£71.79	Add to
026	3151050	FLYWHEEL KEY 3 x 5 x 12.65	£6.14	Add to
027	3114190	NEEDLE BEARING	£8.04	Add to
028	8251440	CRANKSHAFT ASSY	£238.15	Add to
029	3112040	BEARING 547056LV 6202 C3	£15.00	Add to
030	3724120	GASKET	£5.19	Add to
031	2432040	NUT M5	£1.79	Add to
032	2123100	SCREW M4 8 x 13	£1.79	Add to
033	3654050	SPRING	£1.79	Add to
034	3749570	STARTER HOOK	£1.79	Add to
035	8540950	STARTER CUP ASSEMBLY	£31.63	Add to
037	2135030	TORX SCREW M5 x 20	£1.79	Add to
038	4563883	Red Cylinder Cover	N/A	POA
039	4122170/1	Muffler	£41.85	Add to
040	3724380	GASKET	£11.46	Add to
041	3744850	SPARK PLUG CAP	£2.74	Add to
042	3657530	SPARK PLUG SPRING	£1.79	Add to
043	3210024	SPARK PLUG CHAMPION RCJ7Y , NGK BPMR6A	£4.52	Add to
045	3724130	CYLINDER GASKET	£2.23	Add to
046	3123200	PISTON RING D=42 CS 450	£7.10	Add to
047	3158010	PISTON PLUG 10X29,5 40-45DC42	£4.52	Add to
048	3356020	PIN STOP	£3.83	Add to
049	8540860	PISTON ASSY D.42 X 450	£76.59	Add to
050	8540890	Cyl-Pist D.42 (Incl.49) Star 45	£154.88	Add to
051	2135040	TORX SCREW M5 x 18	£1.79	Add to
052	4253290	FUEL INTAKE FILTER	£12.68	Add to
053	8745542	GROMMET ASSEMBLY	£7.92	Add to
054	8741370	FUEL CAP	£5.19	Add to
055	4252620/1	Fuel Tank Ass.Y (Incl.52-54)	£84.06	Add to
056	4612237	SUPPORT ENGINE VIP	£7.92	Add to
05a	3211420	Faston (Flex)	£7.19	Add to
060	4121957	ENS.SUPPORT MOT.VIP 42/52 F G	£10.50	Add to
061	2382230	Spacer (Flex)	N/A	POA
062	2330060	Washer	£4.01	Add to
063	2412180	NUT M12	£1.79	Add to
064	8724380/1	Gasket Set (Incl. 30-40-45)	£23.11	Add to
067	2135180	TORX SCREW M5 x 12	£1.79	Add to
068	3750537	Yellow Spacer	£7.19	Add to
071	23160051/0	Spacer EASY STARTER	£5.97	Add to
072	83082000/0	STARTER CUP 2009	£22.76	Add to
10a	23652501/0	Washer	£4.01	Add to
10b	2321230	WASHER 8.2 x 18 x 1	£1.79	Add to
