Handle-transmission

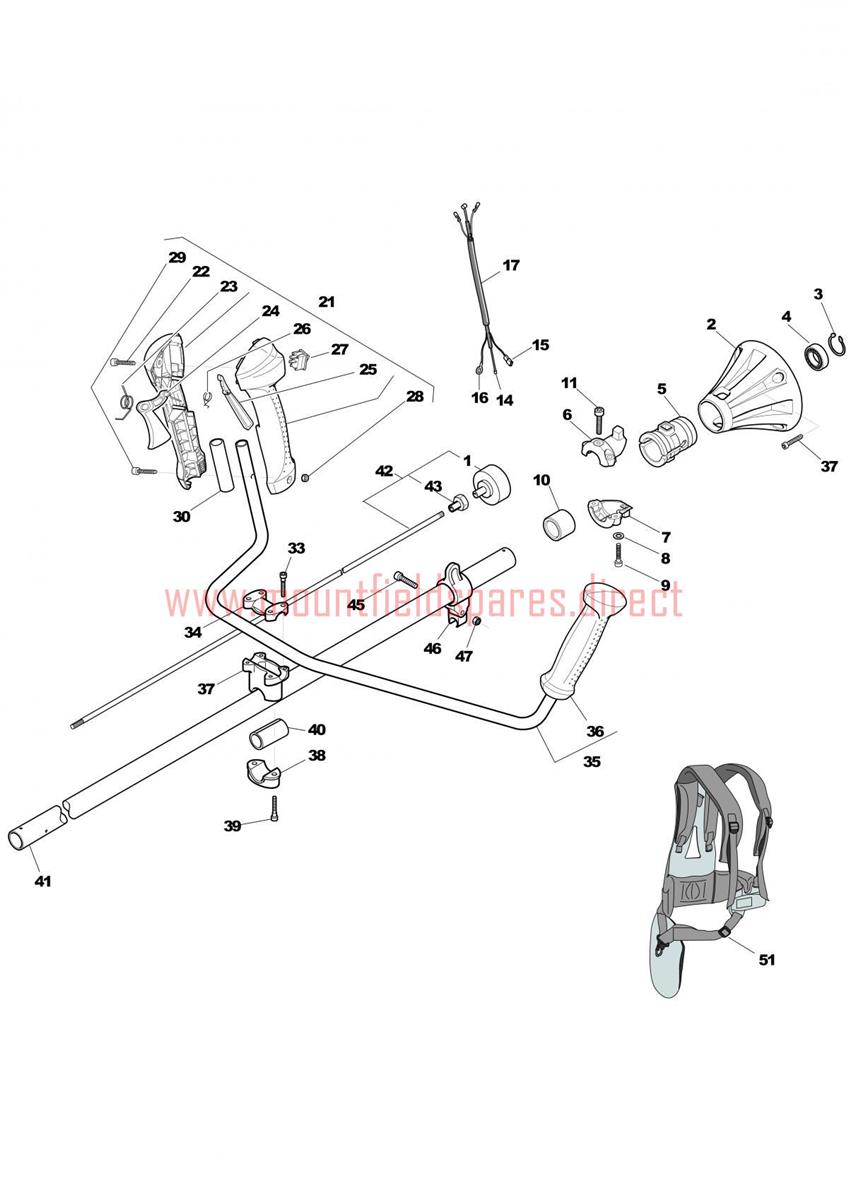

Handle-transmission assembly details for Mountfield MB2502 2009 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0014121881/1Clutch Drum£20.50 Add to
002323782006/0TRANSMISSION SUPPORT DC BC 29S£22.05 Add to
0033353080CIRCLIP D=32mm£1.79 Add to
0043112170Bearing (OBSOLETE)N/A
005323275018/0GROMMET£4.52 Add to
006323720002/0UPPER CLAMP D=26£2.87 Add to
007323720003/0LOWER STIRRUP TUBE FIXING TR D=26£4.91 Add to
0082370050KNURLED WASHER D.5£1.79 Add to
0092135030TORX SCREW M5 x 20£1.79 Add to
010323044218/0Bushing£5.21 Add to
0112135010TORX SCREW M5 x 14 - NLA£1.79 Add to
014123066020/0THROTTLE WIRE£7.78 Add to
015123065024/0Coil-Switch Cable£5.63 Add to
016123065025/0Earth Cable£5.63 Add to
0173786240Wire Sheath (OBSOLETE)N/A
021383300021/0HANDLE ASSEMBLY£28.90 Add to
0222123030TORX SELF-THREAD SCREW£1.79 Add to
0233654270/1Spring£4.60 Add to
024323315083/0THROTTLE LEVER [RED]£2.00 Add to
025323315084/0SAFETY LEVER [RED]£5.87 Add to
0263654280/1Spring£4.60 Add to
027118800202/0EXTINCTION SWITCH£2.18 Add to
028112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
0292135050TORX SCREW M5 x 30£1.79 Add to
03023655001/0REDUCTION 2009£7.71 Add to
0332135060TORX SCREW M5 x 25£2.00 Add to
0343L4541500/1UPPER HANDLE CLAMP£22.08 Add to
035383394008/0HANDLE ASSEMBLY£42.26 Add to
036323395052/0Left Handle£10.56 Add to
0372132110SCREW TCCE M6 x 16£1.79 Add to
0373L4541490/1HANDLE CLAMP£46.61 Add to
0384541510LOWER HANDLE CLAMP£19.77 Add to
0403721410RUBBER SLEEVE£1.79 Add to
041383869067/0Trasmission Pipe Ass.Y£11.54 Add to
0424251410TRANSMISSION SHAFT ASSEMBLY£46.61 Add to
0433642221Bearing Hub (OBSOLETE)N/A
0452135040TORX SCREW M5 x 18£1.79 Add to
04623780000/0Harness Support£5.66 Add to
0472412030NUT M5 x 5 x 8£1.79 Add to
051123046000/0HarnessN/A POA
