Handle-transmission

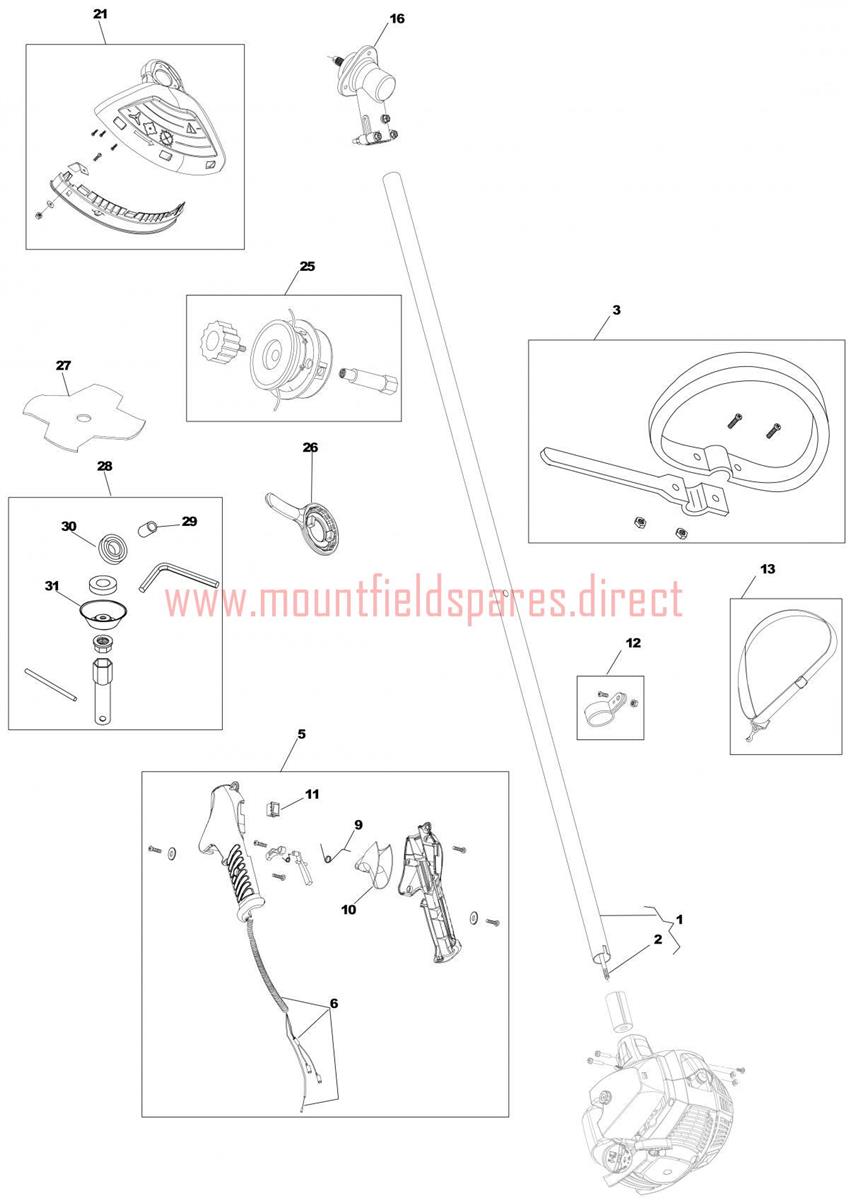

Handle-transmission assembly details for Mountfield MB3001 2009 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	383869063/0	FRONT TRANSMISSION PIPE ASSY	£83.40	Add to
002	123020021/0	TRANSMISSION PIPE	£19.36	Add to
003	383300018/0	Front Handle	N/A	POA
005	383300019/0	Handle Ass.Y	N/A	POA
006	183065018/0	Cables Ass.Y + Sheath	N/A	POA
009	123430580/0	Spring	N/A	POA
010	123315049/0	Throttle Lever	N/A	POA
011	6980206	Stop Switch	£7.19	Add to
012	383780001/0	Harness Support Ass.Y	N/A	POA
013	123046004/0	HARNESS	£8.60	Add to
016	383820505/0	Gear Case Assy	N/A	POA
021	383465005/0	SAFETY COVER ASSY	£20.31	Add to
025	383820504/0	NYLON HEAD ASSEMBLY	£42.53	Add to
026	123070009/0	Nylon Head Key	N/A	POA
027	123155006/0	Four-toothed Ø 230-25,4 dia hole 1,4 mm	£13.47	Add to
028	383303512/0	ASSEMBLY KIT TEETH BLADE	£27.27	Add to
029	6980307	COLLAR 9124-330309	£7.19	Add to
030	6980308	UPPER RING NUT	£9.54	Add to
031	6980312	STABILIZER BOWL	£5.60	Add to
