Engine

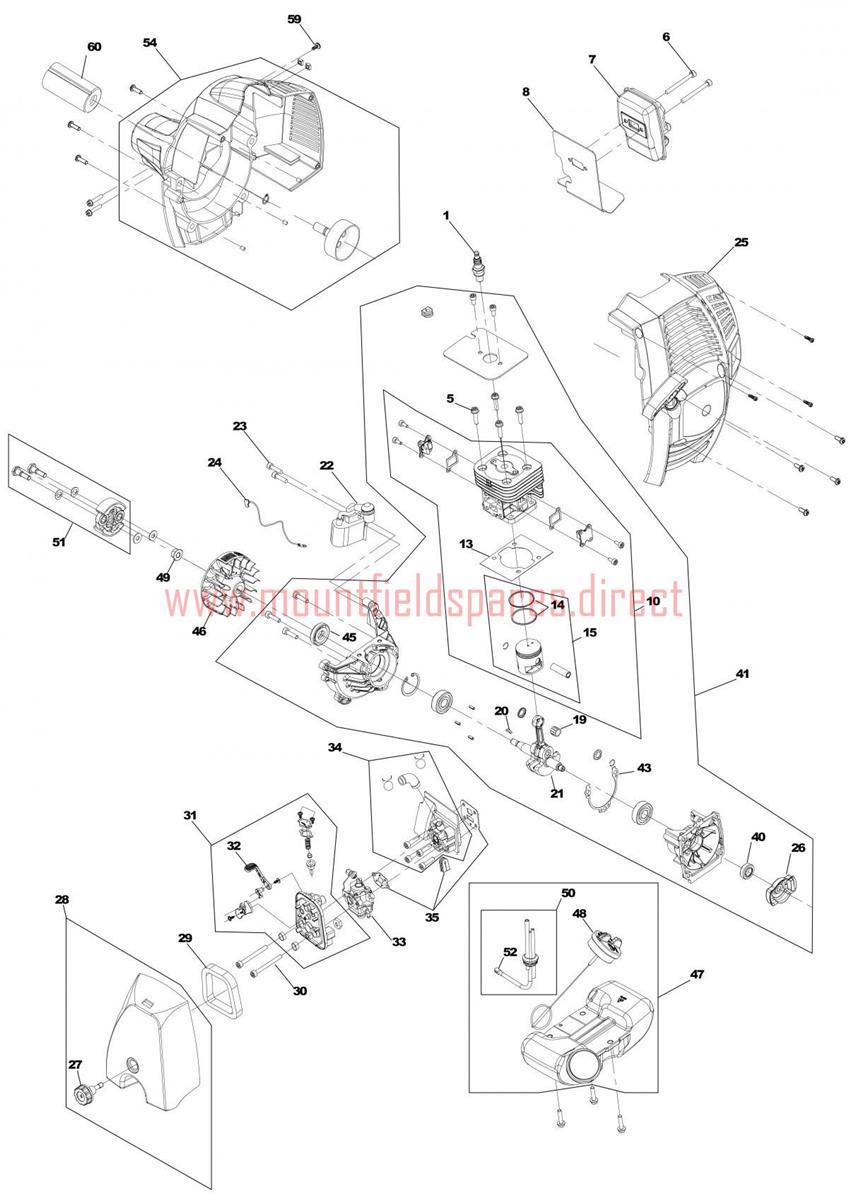

Engine assembly details for Mountfield MB3002 2009 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	123051000/0	SPARK PLUG-CHAMPION RZ7C	£5.21	Add to
005	123878049/0	Screw	£4.01	Add to
006	123878050/0	Screw	N/A	POA
007	183740005/0	Muffler	N/A	POA
008	123280025/0	Gasket	N/A	POA
010	183070004/0	CYLINDER-PISTON ASSY	£87.50	Add to
013	123280026/0	CYLINDER GASKET	£2.06	Add to
014	123204005/0	PISTON RING ASSY	£4.23	Add to
015	183590004/0	PISTON ASSY	£31.63	Add to
019	123072001/0	NEEDLE BEARING	£3.83	Add to
020	123072000/0	Flywheel Key	£4.01	Add to
021	123020019/0	CRANKSHAFT ASSY	£56.36	Add to
022	123044007/0	Electr. Coil	N/A	POA
023	123878051/0	Screw	N/A	POA
024	123065033/0	Spark Plug Cable	N/A	POA
025	183037002/0	Starter Assy Red	N/A	POA
026	123082001/0	STARTER CUP	£8.52	Add to
027	123593505/0	Knob	N/A	POA
028	183090003/0	Filter Cover, Yellow	N/A	POA
028	183090004/0	Filter Cover, Red	N/A	POA
029	123220008/0	Air Filter	N/A	POA
030	123878052/0	Screw	N/A	POA
031	383781001/0	AIR FILTER HOLDER ASSY	£19.22	Add to
032	123315077/0	Choke Lever	N/A	POA
033	123054021/0	CARBURETTOR	£71.16	Add to
034	383073501/0	Intake Manifold Assy	N/A	POA
035	183303511/0	CARBURETOR GASKET KIT	£5.73	Add to
040	119035154/0	SEAL RING	£2.47	Add to
041	183275302/0	ENGINE SHORT BLOCK	£127.20	Add to
043	123280027/0	Crankcase Gasket	N/A	POA
045	112020001/0	SEAL	£2.87	Add to
046	183880004/0	FLYWHEEL ASSY	£31.63	Add to
047	183733004/0	Kit Fuel Tank (OBSOLETE)	N/A
048	123790016/0	Fuel Cap Assy	N/A	POA
049	123120004/0	FLYWHEEL NUT	£4.01	Add to
050	383240001/0	GROMMET ASSEMBLY (OBSOLETE)	N/A
051	183215003/0	CLUTCH ASSY	£19.22	Add to
052	183520001/0	INTAKE FILTER	£5.46	Add to
054	383785002/0	Support Trasm.Assy, Red	N/A	POA
059	6980624	Screw	£4.01	Add to
060	123275020/0	RING BUFFER	£2.87	Add to
