Handle-transmission

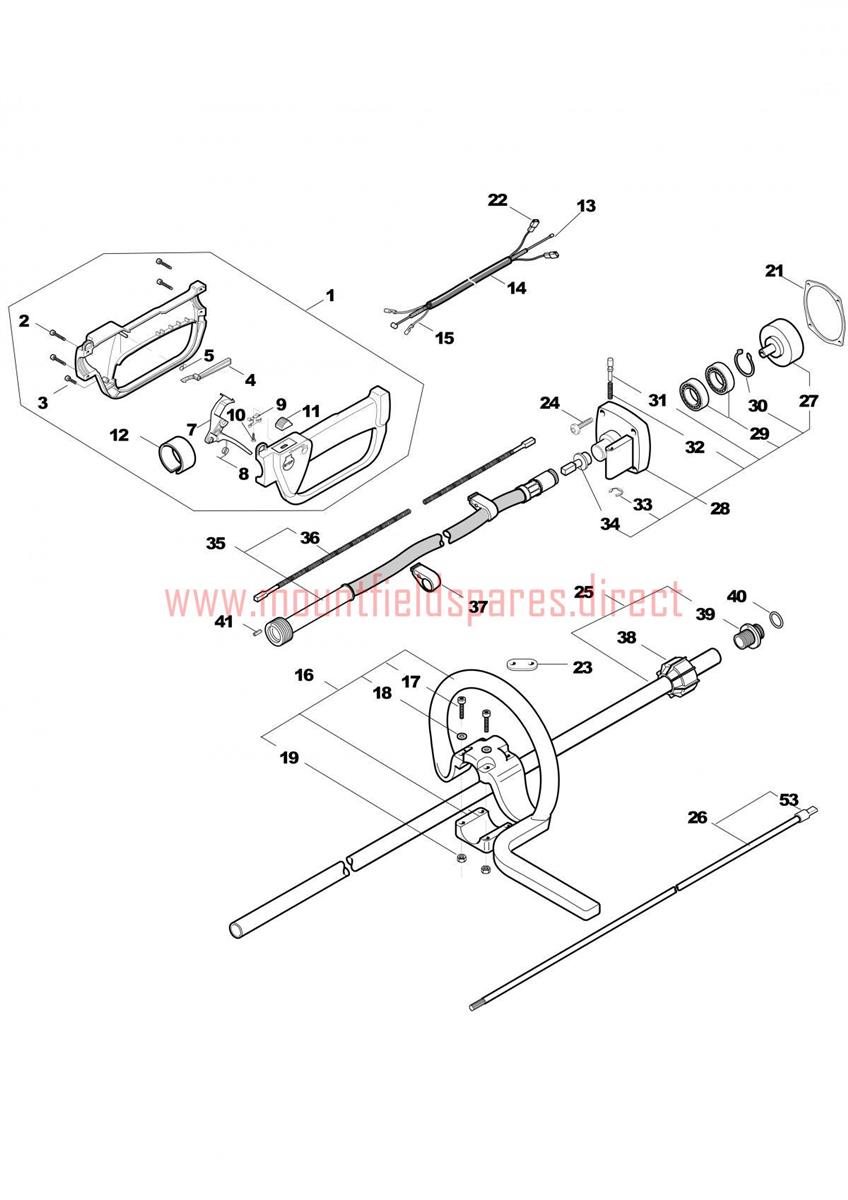

Handle-transmission assembly details for Mountfield MB4303 2009 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0018562620/1Handle Ass.Y (Incl.2-12)£28.73 Add to
0022123030TORX SELF-THREAD SCREW£1.79 Add to
0032123100SCREW M4 8 x 13£1.79 Add to
0043743475SAFETY LEVER£3.15 Add to
0053654300SPRING£1.79 Add to
0073743465THROTTLE LEVER£4.82 Add to
0083654270/1Spring£4.60 Add to
0093612710Stop Plate£5.66 Add to
0102123070TORX SELF-THREAD SCREW£1.79 Add to
0113749270STOP KNOB£1.79 Add to
0123750290ReductionN/A POA
013123066018/0ACCELERATOR CABLE£7.10 Add to
0143782680WIRE SHEATH£16.22 Add to
015123065038/0Coil-Switch Cable (Red)N/A POA
0168563600Front Handle Ass.Y (Incl.17-19)N/A POA
0172135050TORX SCREW M5 x 30£1.79 Add to
0182312090FLAT WASHER D=5 x 10 x 1£1.79 Add to
0192412030NUT M5 x 5 x 8£1.79 Add to
021323208406/0FLANGE TRANSMISSION SUPPORT BC 43£2.32 Add to
022123065039/0Earth Cable (Black)N/A POA
0233614980Handle-Hole For Elastic CordN/A POA
0242135160SCREW TX M6 x 19£1.79 Add to
0254252390Transm. Pipe Ass.Y (Incl.39)N/A POA
0268630150ASS.ALBERO TRASM. DC 42 FP52 FP£30.64 Add to
0273L4121861/1CLUTCH DRUM£21.40 Add to
0288540910Support Transm. (Incl.27,29-34)£93.02 Add to
0293112170Bearing (OBSOLETE)N/A
0303353080CIRCLIP D=32mm£1.79 Add to
0313642420PIN£6.32 Add to
0323654170SPRING£1.79 Add to
0333351050RS STOP D=4 8965089£1.79 Add to
0343642430Hub£35.84 Add to
0354122110/1Flex Shaft Ass.Y J (Incl.36)N/A POA
0364253990/1Flexible Shaft JN/A POA
0373749310CLIP£1.79 Add to
0383750270THREADED COUPLING FP£2.47 Add to
0393643220Flex Threaded Coupling 28N/A POA
0403721540RING£1.79 Add to
0413314040Centring PinN/A POA
0533642290Flex Joint 28N/A POA
