Gear case

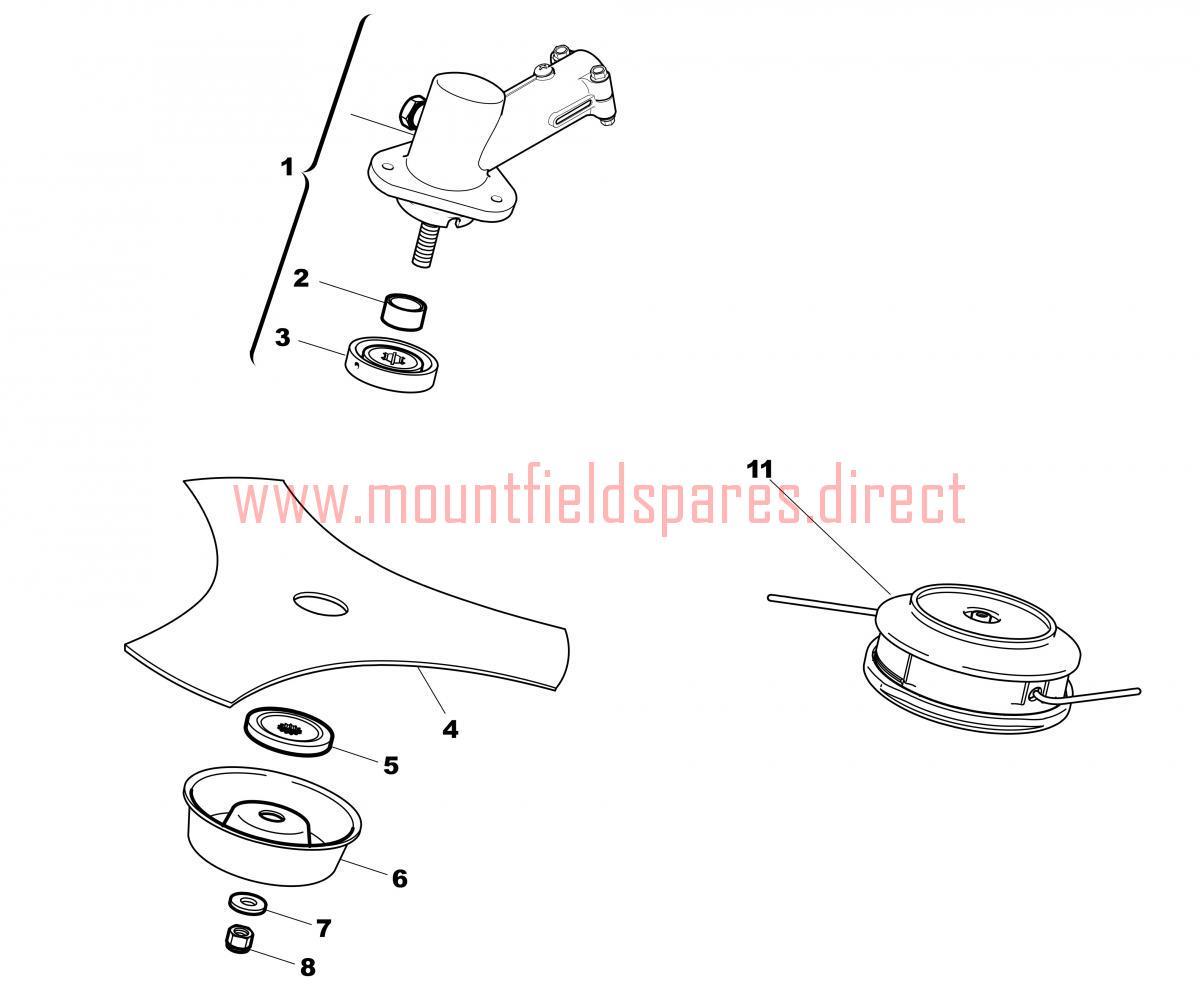

Gear case assembly details for Mountfield BJ 325 2010 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
00123820000/0Gear Case AssyN/A POA
0026980307COLLAR 9124-330309£7.19 Add to
0036980338UPPER RING NUT£12.82 Add to
0046031172BLADE 3 TEETH 255mm£9.41 Add to
0053612650LOWER RING NUT£5.45 Add to
0063615300STABILIZER£16.78 Add to
0072321060WASHER 10.2 x 20 x 1.2£1.79 Add to
0082452090LEFT SELF-LOCKING NUT£5.73 Add to
011323155000/0NYLON HEAD [M10-FEMALE LH-THREAD]£24.57 Add to
