Handle-transmission

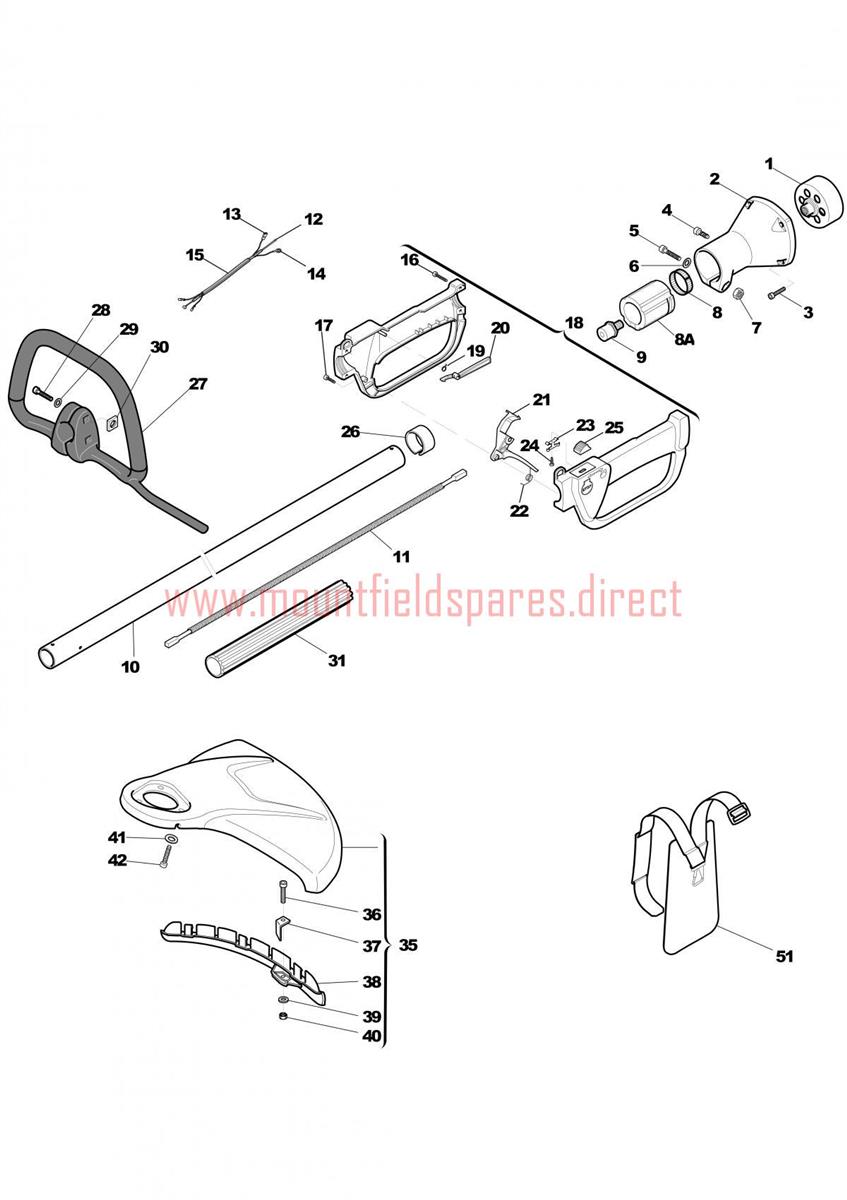

Handle-transmission assembly details for Mountfield BJ 325 2010 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
00183050004/0Drum Ass'Y, Clutch£46.31 Add to
00223782004/0SUPPORT TRASM.ASSY 2009£24.36 Add to
0032135160SCREW TX M6 x 19£1.79 Add to
0042653090SCREW M5X11,5£1.79 Add to
0052135150TORX SCREW M6 x 23£1.79 Add to
0062312010FLAT WASHER 6.4 x 12 x 1.6£1.79 Add to
0072412020Nut£4.01 Add to
00823655002/0Reduction£4.01 Add to
00923445258/0Bearing Hub£12.54 Add to
01083869052/0Trasmission Pipe Ass.Y£88.27 Add to
01123020009/0TRANSMISSION SHAFT 2009£36.91 Add to
0124252540Wire Ass.Y£7.81 Add to
01323065012/0Coil-Switch Cable£7.19 Add to
0143211120CABLE£5.87 Add to
0153786030WIRES GUARD SHEATH BC 4T MONO£12.22 Add to
0162123030TORX SELF-THREAD SCREW£1.79 Add to
0172123100SCREW M4 8 x 13£1.79 Add to
0188562620/1Handle Ass.Y (Incl.2-12)£28.73 Add to
0193654300SPRING£1.79 Add to
0203743475SAFETY LEVER£3.15 Add to
0213743465THROTTLE LEVER£4.82 Add to
0223654270/1Spring£4.60 Add to
0233612710Stop Plate£5.66 Add to
0242123070TORX SELF-THREAD SCREW£1.79 Add to
0253749270STOP KNOB£1.79 Add to
0263749920Reduction£4.01 Add to
02723300001/0FRONT HANDLE 2009£30.54 Add to
0282135050TORX SCREW M5 x 30£1.79 Add to
0292312090FLAT WASHER D=5 x 10 x 1£1.79 Add to
0302461030SQUARE NUT M5 x 10 x 6£1.79 Add to
03123170000/0FRONT HANDLE SPACER TR 1000 2009£5.58 Add to
03583465003/0SAFETY COVER ASS.Y 2009£46.87 Add to
0362135030TORX SCREW M5 x 20£1.79 Add to
0373615000LINE CUTTER£8.32 Add to
03823600051/0DISC PROTECTION 2009£17.68 Add to
0392312150WASHER 5.5 x 15 x 1.5£1.79 Add to
0402432040NUT M5£1.79 Add to
0422135180TORX SCREW M5 x 12£1.79 Add to
0514253460SINGLE HARNESS£17.27 Add to
08A23597500/0SupportN/A POA
