Engine

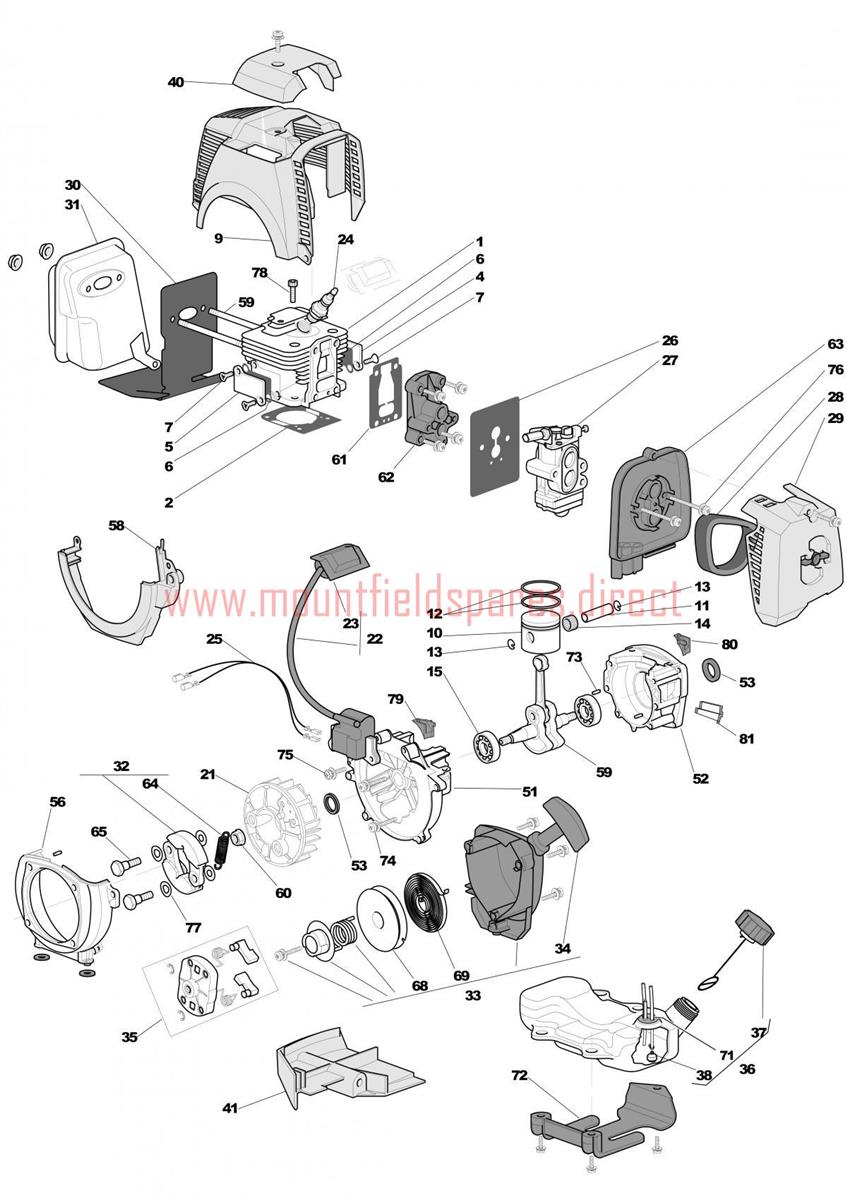

Engine assembly details for Mountfield MB 2501 2010 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001123071019/0CYLINDER£200.38 Add to
002123280056/0Cylinder Gasket£10.96 Add to
004123109568/0Cover£8.23 Add to
005123109569/0Cover£8.23 Add to
006123280032/0Gasket£5.74 Add to
007123878054/0Screw£4.01 Add to
009323106028/0CYLINDER COVER RED£70.86 Add to
010123590004/0PISTON£37.08 Add to
011123760001/0PISTON PIN£7.92 Add to
012123204007/0PISTON RING£6.55 Add to
013123202002/0Washer, Piston Pin£4.01 Add to
014123235003/0NEEDLE BEARING£13.08 Add to
015114215215/0BEARING BALL£21.95 Add to
021123880005/0Flywheel£154.88 Add to
022123044012/0IGNITION COIL£245.56 Add to
023323053003/0Spark Plug Cover£11.95 Add to
0243210024SPARK PLUG CHAMPION RCJ7Y , NGK BPMR6A£4.52 Add to
025183065028/0EARTH CABLE£21.17 Add to
026123280033/0GASKET£4.52 Add to
027123054029/0CARBURETOR£220.85 Add to
028123220009/0AIR FILTER£5.46 Add to
029183090012/0AIR FILTER COVER [RED] (OBSOLETE) (OBSOLETE)N/A
030123280028/0GASKET£15.34 Add to
031183740013/0Muffler£143.97 Add to
032183215005/0CLUTCH UNIT£58.87 Add to
033183058034/0STARTER ASSY£101.13 Add to
034123300007/0Starter Handle£7.14 Add to
035123082002/0STARTER CUP ASSEMBLY£17.18 Add to
036183733005/0FUEL TANK ASSY£96.51 Add to
037183790008/0FUEL CAP£27.88 Add to
038183520004/0INTAKE FILTER£18.36 Add to
039123878061/0Double-Screw Bolt£8.14 Add to
040323109562/0Red Cover, Spark Plug£11.54 Add to
041323600065/0Lower Guard, Red£11.54 Add to
051123685005/0Crank Case£111.29 Add to
052123685004/0Crank Case£100.38 Add to
053119035160/0OIL SEAL£5.05 Add to
056123208410/0Transm.Support Case£89.48 Add to
058323109565/0Case, Red£11.54 Add to
059123020026/0CRANKSHAFT£386.11 Add to
060123120005/0Nut£4.01 Add to
061123280052/0MANIFOLD GASKET£7.92 Add to
062123073510/0INTAKE MANIFOLD£21.75 Add to
063123040002/0AIR FILTER BASE£13.24 Add to
064123430586/0Spring£9.24 Add to
065123878059/0SCREW£9.28 Add to
068123604008/0STARTER PULLEY£15.91 Add to
069123430589/0SPRING, CLUTCH£16.78 Add to
071123275022/0GROMMET£5.05 Add to
072123784005/0ENGINE SUPPORT£25.81 Add to
073123753002/0Centring Pin£4.01 Add to
074123878066/0Screw£4.01 Add to
075123878064/0Screw£4.01 Add to
076123878065/0SCREW£1.31 Add to
077123657010/0WASHER£2.06 Add to
078123878063/0Screw£4.01 Add to
079123294001/0Guide£5.52 Add to
080123294000/0Guide£5.52 Add to
081123109559/0Guard£5.74 Add to
