Gear case

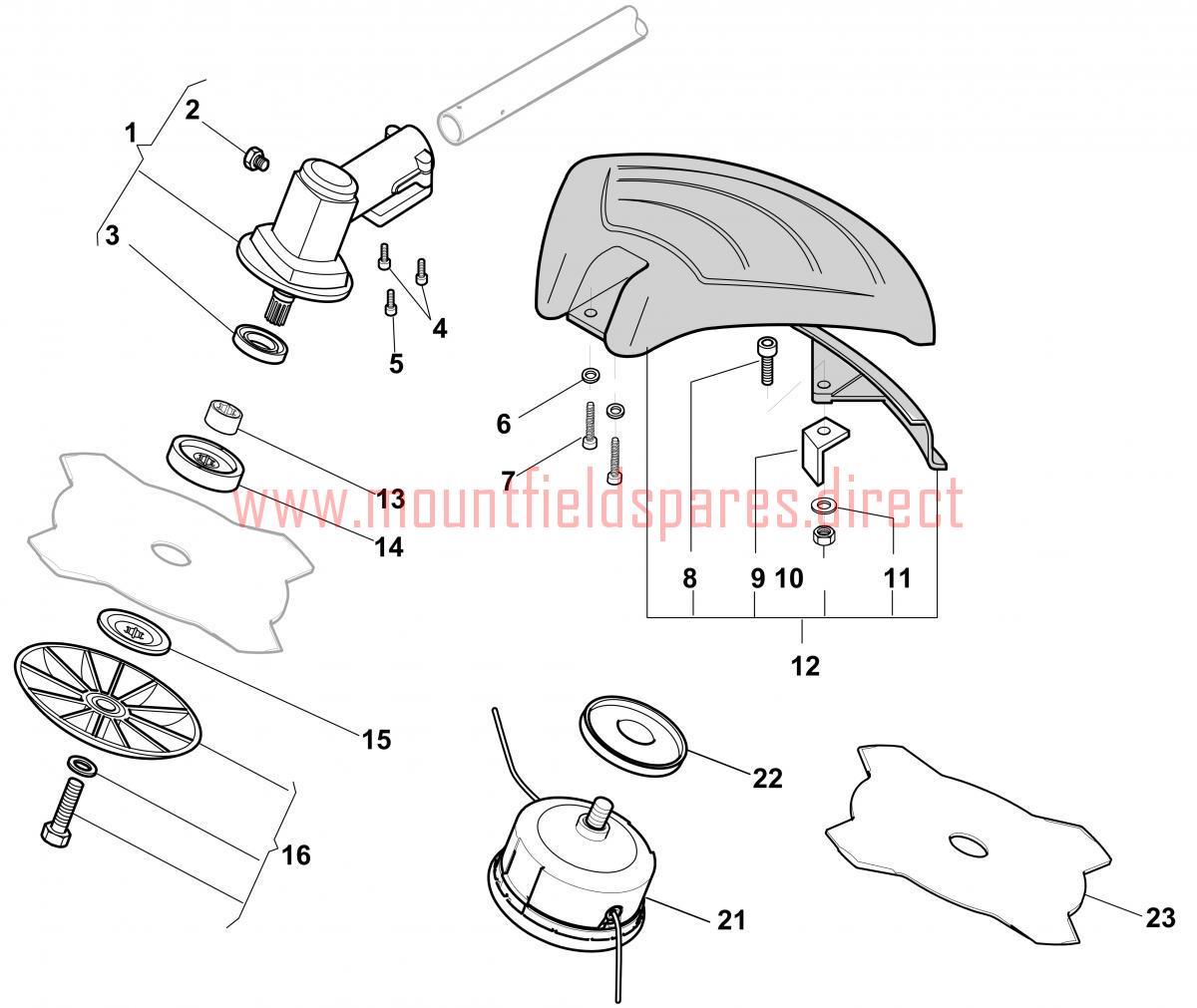

Gear case assembly details for Mountfield MB 5103 2010 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	3L4252790/1	GEAR CASE ASSEMBLY D=28 (OBSOLETE)	N/A
002	2653460	SCREW	£4.52	Add to
003	3121170	RING 22X32X7	£4.52	Add to
004	2135050	TORX SCREW M5 x 30	£1.79	Add to
005	2653090	SCREW M5X11,5	£1.79	Add to
006	2312150	WASHER 5.5 x 15 x 1.5	£1.79	Add to
007	2135060	TORX SCREW M5 x 25	£2.00	Add to
008	2135030	TORX SCREW M5 x 20	£1.79	Add to
009	3615000	LINE CUTTER	£8.32	Add to
010	112154330/0	LOW SELF-LOCKING NUT M5	£2.06	Add to
012	3L8563570/1	SAFETY COVER ASSEMBLY	£21.83	Add to
013	1L3641700/1	SPACER	£9.28	Add to
014	3641640	UPPER RING NUT	£10.36	Add to
015	3612640	LOWER RING NUT	£7.51	Add to
016	4560610	STABILIZER BOWL 127mm X 8M (OBSOLETE) (OBSOLETE)	N/A
021	3L4353000/1	NYLON HEAD [M8-MALE LH-THREAD]	£22.84	Add to
022	3614950	CUP	£1.79	Add to
023	4611880	BLADE 4 TEETH 255mm	£12.40	Add to
