Knap sack

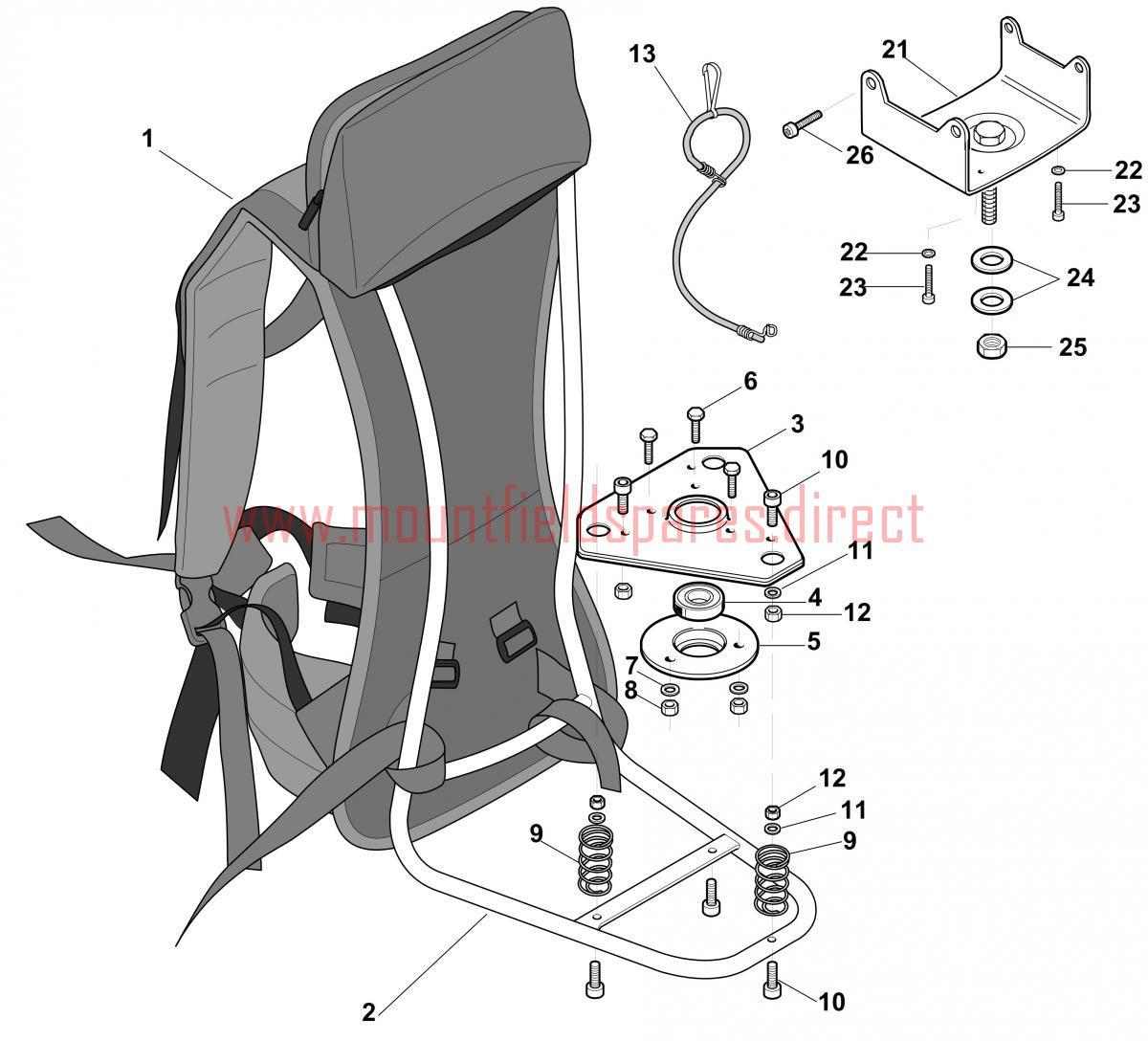

Knap sack assembly details for Mountfield MB 5103 2010 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001123046003/0HARNESS£98.40 Add to
002383801101/0KNAP SACK FRAME ASS.Y£41.16 Add to
0034612280ENGINE SUPPORT£15.41 Add to
0043112170Bearing (OBSOLETE)N/A
0054612020Bearing Flange£12.14 Add to
0062112260ScrewN/A POA
0072312090FLAT WASHER D=5 x 10 x 1£1.79 Add to
0082432040NUT M5£1.79 Add to
0093654360MOLLA ANTIVIB. ZAINO FLEX REST.£11.87 Add to
0102132110SCREW TCCE M6 x 16£1.79 Add to
0112312130Washer£4.01 Add to
0122432030NUT 25£1.79 Add to
0134252430ELECTRIC CORD - NLA£19.62 Add to
021383784001/0ENGINE SUPPORT ASS.Y BC FLEX GREY - NLA£15.69 Add to
0222330020GROWER WASHER D.5£1.79 Add to
0232135010TORX SCREW M5 x 14 - NLA£1.79 Add to
0242330060Washer£4.01 Add to
0252412180NUT M12£1.79 Add to
0262112310SCREW TE 6X12£1.79 Add to
