Handle-transmission

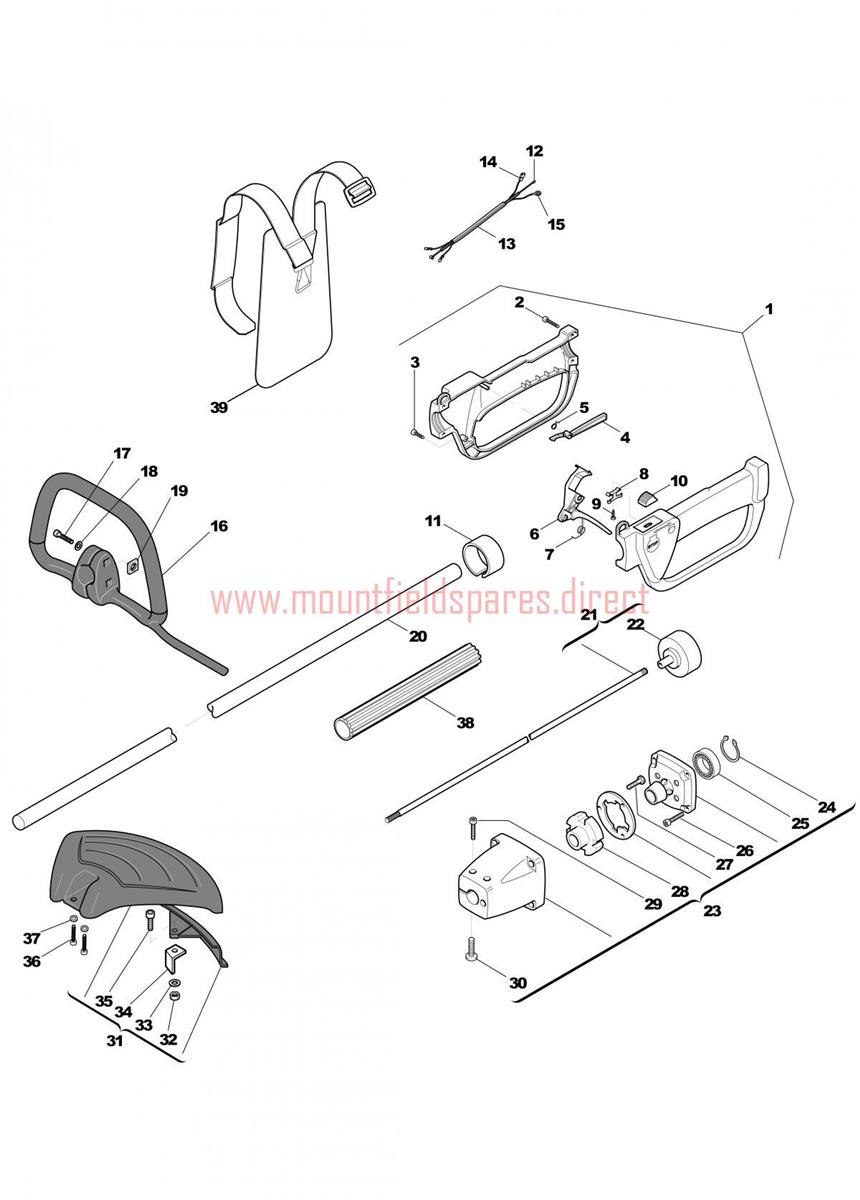

Handle-transmission assembly details for Mountfield BJ345 2011 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0018562620/1Handle Ass.Y (Incl.2-12)£28.73 Add to
0022123030TORX SELF-THREAD SCREW£1.79 Add to
0043743475SAFETY LEVER£3.15 Add to
0053654300SPRING£1.79 Add to
0063743465THROTTLE LEVER£4.82 Add to
0073654270/1Spring£4.60 Add to
0083612710Stop Plate£5.66 Add to
0092123070TORX SELF-THREAD SCREW£1.79 Add to
0103749270STOP KNOB£1.79 Add to
0113749920Reduction£4.01 Add to
0121L4252540/1THROTTLE CABLE£7.74 Add to
0124252540Wire Ass.Y£7.81 Add to
0133786030WIRES GUARD SHEATH BC 4T MONO£12.22 Add to
014123065022/0Coil-Switch CableN/A POA
0153211120CABLE£5.87 Add to
01623300001/0FRONT HANDLE 2009£30.54 Add to
0172135050TORX SCREW M5 x 30£1.79 Add to
0182312090FLAT WASHER D=5 x 10 x 1£1.79 Add to
0192461030SQUARE NUT M5 x 10 x 6£1.79 Add to
0208251201TRANSMISSION PIPE£54.01 Add to
0214251400TRANSMISSION SHAFT ASSY£50.22 Add to
0223L4121861/1CLUTCH DRUM£21.40 Add to
0238562960SUPPORT TRASSM.ASSY£56.15 Add to
0243353080CIRCLIP D=32mm£1.79 Add to
0253112170Bearing (OBSOLETE)N/A
0262135160SCREW TX M6 x 19£1.79 Add to
0283744260SHOCK ABSORBER£6.55 Add to
0292123110SCREW 4.8 x 35£1.79 Add to
0302123100SCREW M4 8 x 13£1.79 Add to
0313L8563570/1SAFETY COVER ASSEMBLY£21.83 Add to
032112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
0332312150WASHER 5.5 x 15 x 1.5£1.79 Add to
0343615000LINE CUTTER£8.32 Add to
0352135030TORX SCREW M5 x 20£1.79 Add to
0362135060TORX SCREW M5 x 25£2.00 Add to
03823170000/0FRONT HANDLE SPACER TR 1000 2009£5.58 Add to
0394253460SINGLE HARNESS£17.27 Add to
