Housing

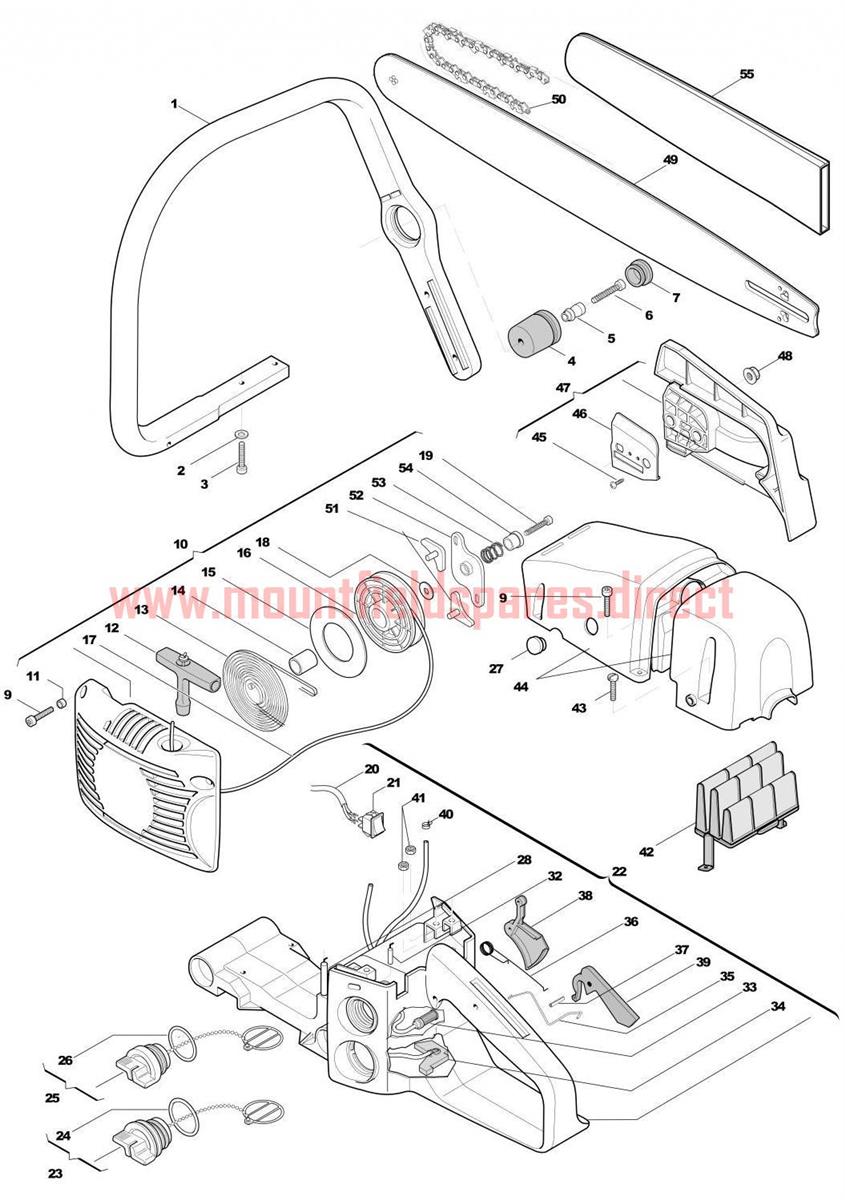

Housing assembly details for Mountfield MC5020 2009 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	4562397	HANDLE [GREY]	£28.90	Add to
002	2312090	FLAT WASHER D=5 x 10 x 1	£1.79	Add to
003	2123030	TORX SELF-THREAD SCREW	£1.79	Add to
004	3744250	RUBBER SHOCK ABSORBER	£4.23	Add to
005	3642680	Bushing	£6.58	Add to
006	2135030	TORX SCREW M5 x 20	£1.79	Add to
007	3749837	RUBBER CAP	£2.00	Add to
009	2135040	TORX SCREW M5 x 18	£1.79	Add to
010	4252176	LANCEUR COMPL ORANGE 450 I.G	£50.70	Add to
011	2382250	Bushing	£5.66	Add to
012	3749437	Starter Handle	£7.19	Add to
013	4611480	STARTER SPRING	£9.00	Add to
014	3623510	Bushing	£7.19	Add to
015	3723640	SPRING DISC	£4.52	Add to
016	4563040	STARTING PULLEY 450 2°TIPO	£7.97	Add to
017	3784010	STARTER CORD - NLA	£2.06	Add to
018	3613420	WASHER D.5 2 x 15 x 0.82	£1.79	Add to
020	8211060	STOP CABLE ASSY 450	£27.44	Add to
021	118800202/0	EXTINCTION SWITCH	£2.18	Add to
022	83300004/0	Handle Assy	£133.57	Add to
023	4250950	Fuel Cap Assy (Incl. 24)	£11.94	Add to
024	3721300	RUBBER RING 4125 D. 31,34X3,53 FPM	£3.96	Add to
025	4250960	OIL CAP ASSY 700/800	£14.05	Add to
026	3721330	RUBBER RING 4093	£1.79	Add to
027	3750550	Cap Yellow	£7.19	Add to
027	3750555	Cap Orange	£7.19	Add to
028	4253580	Fuel Tube Assy (OBSOLETE) (OBSOLETE)	N/A
032	4253690	OIL VENT TUBE ASS.Y 400-450	£3.55	Add to
033	8782880	OIL FILTER ASS.Y	£8.99	Add to
034	8782870	ADMISSION FILTRE 450	£20.01	Add to
035	3655290	ACCELERATOR TIE-ROD 400	£3.83	Add to
036	3654180	Spring (OBSOLETE) (OBSOLETE)	N/A
037	3314140	Pin	£4.01	Add to
038	3743387	Throttle Lever	£7.19	Add to
039	3743397	Safety Lever	£7.19	Add to
040	3320170	CLAMP	£1.79	Add to
041	2412030	NUT M5 x 5 x 8	£1.79	Add to
042	3781590	AIR FILTER	£26.23	Add to
043	2653190	Screw	£4.01	Add to
044	8563505/1	CYLINDER/FILTER COVER 460 ORAN 2008	£36.27	Add to
045	2123060	SELF-THREAD SCREW	£1.79	Add to
046	3613890	OUTER BAR PLATE 450	£3.56	Add to
047	4252835	CLUTCH COVER ORANGE	£23.93	Add to
048	2670120	DESC NOT_AVAILABLE	£3.78	Add to
049	4112450	BAR 16INCH 325 1,5 P450/460/510 OR	£63.33	Add to
049	4112490	GUIDE BAR 18" P=0.325" 1.5	£62.97	Add to
049	4112640	Guide Bar 20" "20"" 325"" .058"" (1.5 mm)"	N/A	POA
049	4112660	BAR 13INCH 325 1,5 P460/510 OR	£56.15	Add to
050	4113720	325" .058" A58JG 56E 2008	£22.47	Add to
050	4113721	CHAIN 16INCH 325 .058 A58JG 6	£23.71	Add to
050	4113722	Chain 18" "18"" 325"" .058"" (1.3 mm) - 72E"	£29.65	Add to
050	4113723	Chain 20" "20"" 325"" .058"" (1.5 mm) - 78E"	N/A	POA
051	3750080	STARTER HOOK (OBSOLETE)	N/A
052	3750090	STARTING HOOKING GUIDE 450	£1.79	Add to
053	3654390	Spring	£5.66	Add to
054	3642980	Bushing	£7.19	Add to
055	4181307	CHAIN COVER 16"	£6.42	Add to
