Housing

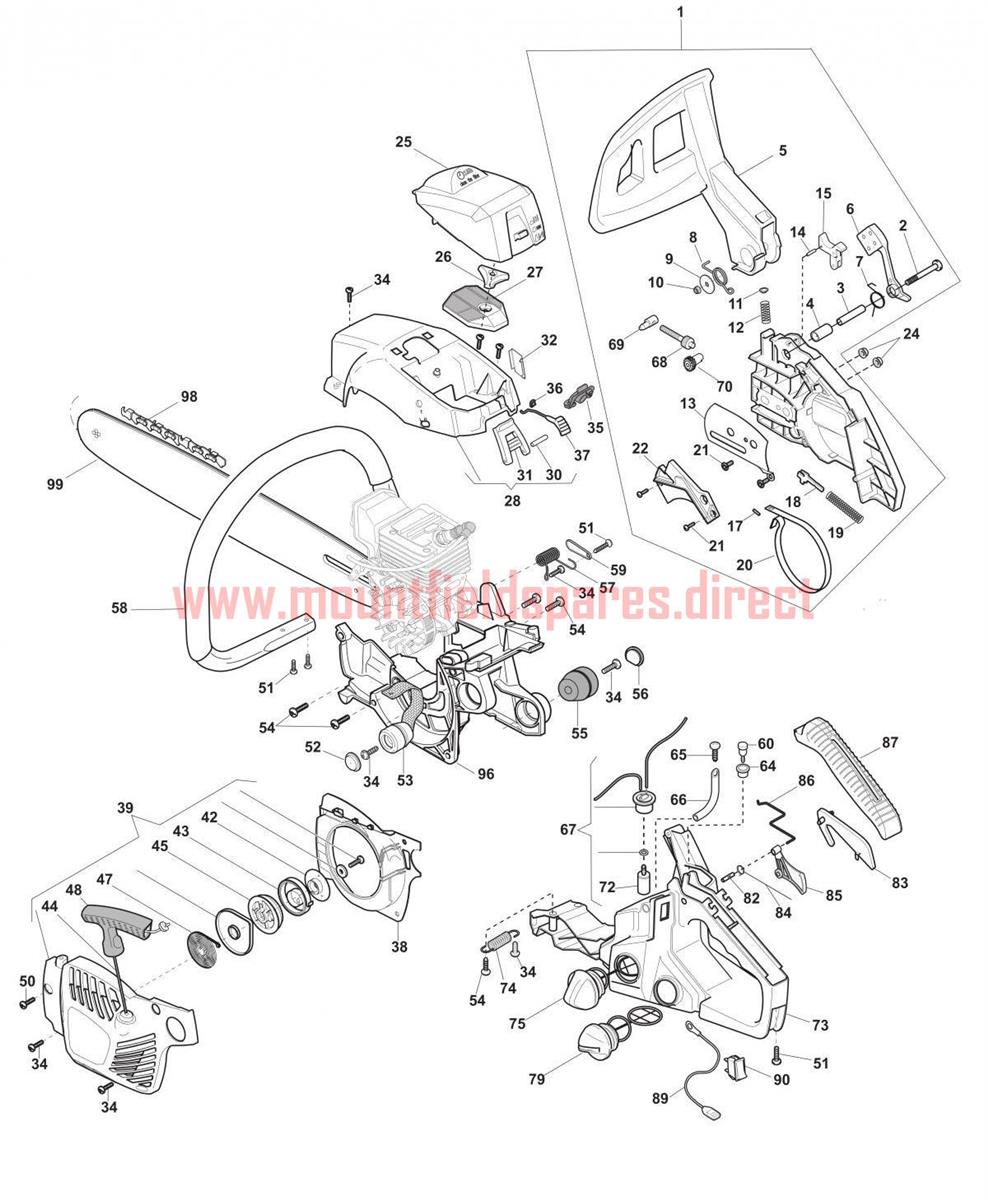

Housing assembly details for Mountfield MC438 2012 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118801733/0CLUTCH HOUSING c/w BRAKE [RED]£26.18 Add to
002123878017/0SCREW£1.79 Add to
003123044213/0Bushing£4.60 Add to
004123044214/0Bushing£4.60 Add to
005118800765/0HAND GUARD£13.87 Add to
006118800748/0BALANCE WEIGHT (OBSOLETE) (OBSOLETE)N/A
007123430572/0SPRING£2.47 Add to
008118800747/0BRAKE TORSION ROD SPRING£1.79 Add to
009123657007/0Washer£4.01 Add to
010112154320/0SELF-LOCKING NUT M5£2.06 Add to
011323670001/0WASHER£3.40 Add to
012118800745/0FRONT GUARD SPRING£1.79 Add to
013118800257/0TENSIONER COVER PLATE£3.64 Add to
014123753001/0PIN D=3 x 14.8£1.79 Add to
015383315051/0CHAIN BRAKE LEVER£2.87 Add to
017123753000/0PIN D=3 x 9£2.00 Add to
018323315067/0LEVER£4.78 Add to
019118800746/0Brake Spring (OBSOLETE)N/A
020118800185/0BRAKE BAND£5.60 Add to
021123878023/0TORX SCREW 4 x 12£1.79 Add to
022323109525/0Brake Spring Cover (OBSOLETE) (OBSOLETE)N/A
024118800186/0NUT M8£2.00 Add to
025118800767/0AIR FILTER COVER£7.36 Add to
026118800756/0AIR FILTER LOCK NUT£2.32 Add to
027118800188/0AIR FILTER£6.27 Add to
028118801734/0Cylinder Cover,Red£12.83 Add to
030118800740/0PIN£1.79 Add to
031118800768/0LOCK KNOB£2.32 Add to
032118800749/0CAP£1.79 Add to
034118800189/0SELF-TAP SCREW 4.8 x 16£1.79 Add to
035118800742/0DUST SHIELD£2.00 Add to
036118800264/0GROMMET£1.79 Add to
037118800755/0CHOKE KNOB£2.32 Add to
038118800758/0RECOIL BASE PLATE£4.10 Add to
039118801735/0RECOIL ASSEMBLY [RED]£32.83 Add to
042118800754/0STARTER HUB£3.00 Add to
043118800753/0STARTER SPRING£5.87 Add to
044118801178/0STARTER CORD£2.06 Add to
045118800760/0Starter PulleyN/A POA
047118800741/0RECOIL SPRING£4.91 Add to
048118800759/0STARTER HANDLE£3.15 Add to
050123878024/0TORX SCREW 5 x 18£1.79 Add to
051123878025/0TORX SCREW 5 x 26£1.79 Add to
052118800743/0DUST COVER£1.79 Add to
053118800266/0SHOCK ABSORBER£1.79 Add to
054123878022/0Screw£4.01 Add to
055118800194/0SHOCK ABSORBER£3.15 Add to
056118800195/0DUST CAP£2.00 Add to
057118800196/0FRONT HANDLE SPRING£2.47 Add to
058118800197/0FRONT HANDLE£17.72 Add to
059323208402/0Plate£5.66 Add to
060118800198/0BREATHER VALVE ASSEMBLY£5.46 Add to
064118800744/0GROMMET£2.06 Add to
065112728124/0SELF-TAP SCREW TCB TORX 4.2 X 16£1.74 Add to
066118800255/0OIL PICKUP TUBE£1.79 Add to
067118800214/0FUEL FILTER ASSEMBLY£9.54 Add to
068123878027/0Screw£4.69 Add to
069123510096/0Chain Tightener BlockN/A POA
070118801066/0PINION£5.60 Add to
072118800199/0FUEL FILTER£3.15 Add to
073118801736/0HANDLE BASE [RED]£31.57 Add to
074118800201/0BASE SPRING£2.06 Add to
075118800761/0FUEL CAP£4.23 Add to
079118800762/0OIL TANK CAP£4.42 Add to
082123510098/0PIN£1.79 Add to
083118800205/0SAFETY LEVER£1.79 Add to
084118800206/0SPRING£1.79 Add to
085118800207/0THROTTLE LEVER£1.79 Add to
086118800750/0THROTTLE ROD£4.52 Add to
087118800763/0HANDLE COVER£7.57 Add to
089118800213/0EARTH CABLE£1.79 Add to
090118800202/0EXTINCTION SWITCH£2.18 Add to
096118800752/0ENGINE BASE£17.86 Add to
098118801744/0Chain 14"-3/8"-0,050"-53X£23.55 Add to
099118800127/0GUIDE BAR 14" 3/8" Pitch£53.42 Add to
