Engine

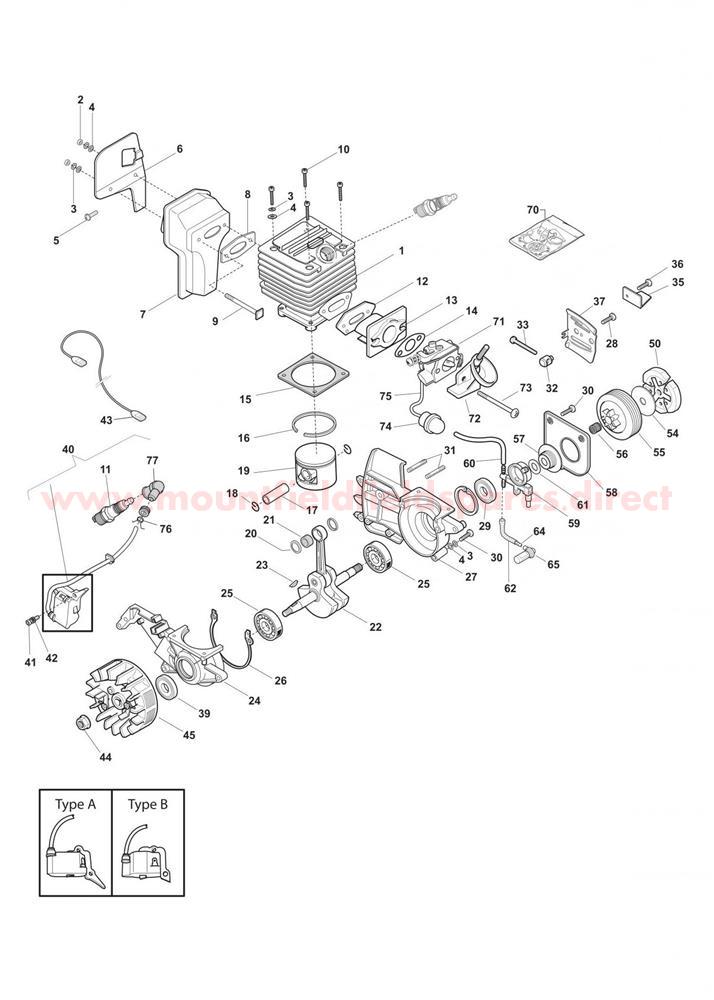

Engine assembly details for Mountfield MC 3720 (228116013) 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118800242/0CYLINDER£54.79 Add to
0022432040NUT M5£1.79 Add to
0042312090FLAT WASHER D=5 x 10 x 1£1.79 Add to
005123878022/0Screw£4.01 Add to
006118800243/0SILENCER COVER PLATE£3.15 Add to
007118550582/0MUFFLER£36.92 Add to
008118550583/0MUFFLER GASKET£1.79 Add to
009118550584/0MUFFLER CONNECTING SCREW£3.28 Add to
0102135030TORX SCREW M5 x 20£1.79 Add to
0113210024SPARK PLUG CHAMPION RCJ7Y , NGK BPMR6A£4.52 Add to
012118550585/0INTAKE MANIFOLD GASKET£1.79 Add to
013118550586/0INTAKE MANIFOLD£2.47 Add to
014118550587/0CARBURETTOR GASKET£1.79 Add to
015118550588/0CYLINDER SEALING GASKET£1.79 Add to
016118550589/0PISTON RING£3.96 Add to
017118800244/0PISTON PIN£1.79 Add to
018118550590/0PISTON PIN CIRCLIP£1.79 Add to
019118800245/0PISTON£17.57 Add to
020118800246/0NEEDLE BEARING RING£2.86 Add to
021118550591/0NEEDLE BEARING 10 x 14 x 11£4.23 Add to
022118800247/0CRANKSHAFT£43.89 Add to
023123072005/0Flywheel Key£4.01 Add to
024118800248/0LEFT CRANKCASE£28.90 Add to
0253112030BEARING 6201 C3£15.41 Add to
026118800249/0CRANKCASE GASKET£2.00 Add to
027118800250/0RIGHT CRANKCASE£30.48 Add to
028123878020/0TORX SCREW M4 x 10£1.79 Add to
029118550592/0OIL SEAL 12 x 35 x 5.5£2.61 Add to
030123878021/0TORX SCREW M4 x 14£1.79 Add to
031118550593/0DOUBLE SCREW BOLT£1.79 Add to
032118550594/0TENSION BLOCK£1.79 Add to
033118550595/0ADJUST SCREW£1.79 Add to
035118550597/0CHAIN GUARD£1.79 Add to
036118800251/0CHAIN CATCHER SCREW£2.00 Add to
037118550598/0BAR PLATE£2.32 Add to
039118550599/0OIL SEAL 12 x 22 x 7£2.18 Add to
040118803925/0DIGITAL IGNITION COIL£37.09 Add to
040118550600/0ANALOG IGNITION COIL£27.16 Add to
0422321050WASHER 4 x 10 x 0.5£1.79 Add to
043118550601/0EARTH CABLE£2.06 Add to
044123120004/0FLYWHEEL NUT£4.01 Add to
045118550602/0FLYWHEEL ASSEMBLY-ANALOG IGNITION£32.99 Add to
046118802952/0OIL SPRAY NOZZLE£3.15 Add to
050118550603/0CLUTCH ASSEMBLY£18.41 Add to
054118800252/0CLUTCH WASHER£2.06 Add to
055118550604/0CLUTCH DRUM£18.12 Add to
056118550605/0NEEDLE BEARING 10 x 13 x 13£5.92 Add to
057118550606/0WORM GEAR - 2 Tooth-Pitch 3/8" mini£3.00 Add to
058118800253/0OIL PUMP CAP£2.00 Add to
059118550607/0OIL PUMP£16.78 Add to
060118800254/0OIL OUTGOING TUBE£2.18 Add to
061118550608/0WORM WASHER£1.79 Add to
062118800255/0OIL PICKUP TUBE£1.79 Add to
064118800256/0OIL TUBE CONNECTION£1.79 Add to
065118550609/0OIL FILTER ASSEMBLY£8.73 Add to
0708724091DIAPHRAGM GASKET SET£18.82 Add to
071118800210/0CARBURETTOR£117.47 Add to
072118800211/0INTAKE MANIFOLD£3.15 Add to
073118800212/0CARBURETTOR SCREW£1.79 Add to
074118804231/0PRIMER BULB£6.23 Add to
075118800204/0PUMP TUBE£4.23 Add to
0763657050SPARK PLUG SPRING£3.83 Add to
0773748880SPARK PLUG CAP£2.47 Add to
