Housing

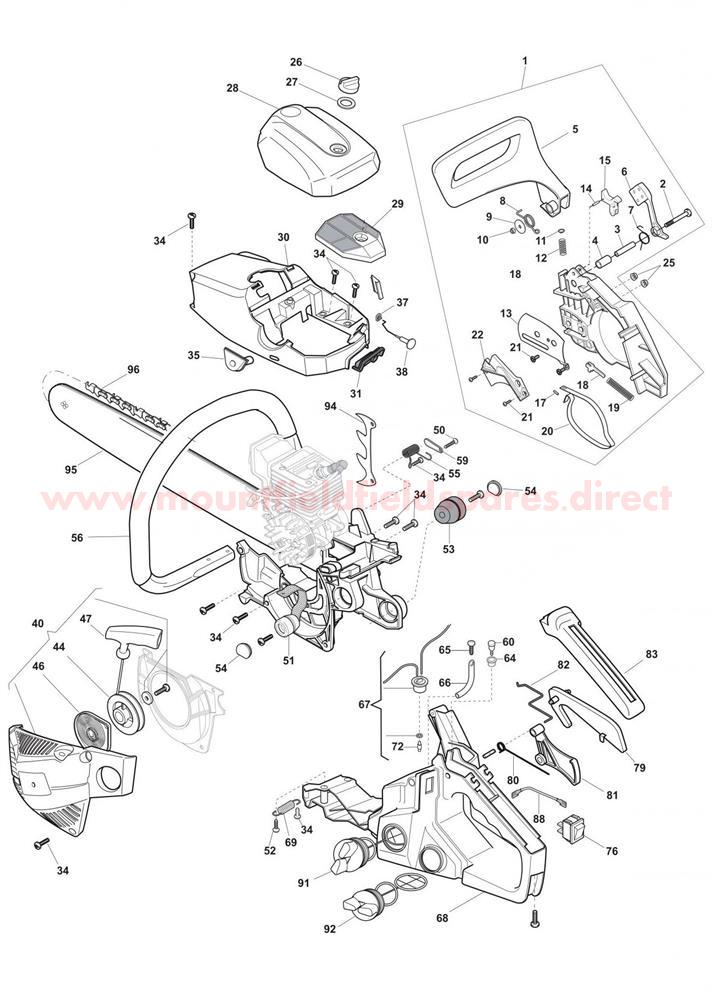

Housing assembly details for Mountfield MC 3720 (228116013) 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118800183/0CLUTCH HOUSING c/w BRAKE [BLACK]£37.24 Add to
002123878017/0SCREW£1.79 Add to
003123044213/0Bushing£4.60 Add to
004123044214/0Bushing£4.60 Add to
005118800184/0FRONT DAMPER£7.36 Add to
006118800748/0BALANCE WEIGHT (OBSOLETE) (OBSOLETE)N/A
007123430572/0SPRING£2.47 Add to
008118800747/0BRAKE TORSION ROD SPRING£1.79 Add to
009123657007/0Washer£4.01 Add to
010112154320/0SELF-LOCKING NUT M5£2.06 Add to
011323670001/0WASHER£3.40 Add to
012118800745/0FRONT GUARD SPRING£1.79 Add to
013118800257/0TENSIONER COVER PLATE£3.64 Add to
014123753001/0PIN D=3 x 14.8£1.79 Add to
015383315051/0CHAIN BRAKE LEVER£2.87 Add to
017123753000/0PIN D=3 x 9£2.00 Add to
018323315067/0LEVER£4.78 Add to
019118800746/0Brake Spring (OBSOLETE)N/A
020118800185/0BRAKE BAND£5.60 Add to
021123878023/0TORX SCREW 4 x 12£1.79 Add to
022323109525/0Brake Spring Cover (OBSOLETE) (OBSOLETE)N/A
025118800186/0NUT M8£2.00 Add to
026118800187/0AIR FILTER LOCK NUT£2.87 Add to
027118800258/0LOCK NUT WASHER£1.79 Add to
028118800260/0AIR FILTER COVER [RED]£6.55 Add to
029118800188/0AIR FILTER£6.27 Add to
030118800262/0CYLINDER COVER [RED]£15.00 Add to
031118800742/0DUST SHIELD£2.00 Add to
034118800189/0SELF-TAP SCREW 4.8 x 16£1.79 Add to
035118800263/0IDLE ADJUSTING GUIDE SET£1.79 Add to
037118800264/0GROMMET£1.79 Add to
038118800190/0CHOKE LEVER£2.86 Add to
040123456789RECOIL ASSEMBLY [BLACK] (OBSOLETE) (OBSOLETE)N/A
040118800191/0RECOIL ASSEMBLY [BLACK]£24.50 Add to
044118800192/0STARTER PULLEY£4.52 Add to
046118800278/0STARTER SPRING£5.61 Add to
047118800193/0STARTER HANDLE£2.74 Add to
050123878025/0TORX SCREW 5 x 26£1.79 Add to
051118800266/0SHOCK ABSORBER£1.79 Add to
052123878022/0Screw£4.01 Add to
053118800194/0SHOCK ABSORBER£3.15 Add to
054118800195/0DUST CAP£2.00 Add to
055118800196/0FRONT HANDLE SPRING£2.47 Add to
056118800197/0FRONT HANDLE£17.72 Add to
059323208402/0Plate£5.66 Add to
060118800198/0BREATHER VALVE ASSEMBLY£5.46 Add to
064118800744/0GROMMET£2.06 Add to
065112728124/0SELF-TAP SCREW TCB TORX 4.2 X 16£1.74 Add to
066118800255/0OIL PICKUP TUBE£1.79 Add to
067118800214/0FUEL FILTER ASSEMBLY£9.54 Add to
068118800200/0HANDLE BASE [BLACK]£39.99 Add to
069118800201/0BASE SPRING£2.06 Add to
072118800199/0FUEL FILTER£3.15 Add to
076118800202/0EXTINCTION SWITCH£2.18 Add to
079118800205/0SAFETY LEVER£1.79 Add to
080118800206/0SPRING£1.79 Add to
081118800207/0THROTTLE LEVER£1.79 Add to
082118800208/0THROTTLE ROD£4.23 Add to
083118800209/0HANDLE COVER£4.64 Add to
088118800213/0EARTH CABLE£1.79 Add to
091118800215/0FUEL TANK CAP£2.87 Add to
092118800216/0OIL TANK CAP£2.87 Add to
094118550596/0SPIKED GRIP£3.41 Add to
095118800128/0GUIDE BAR 16" 3/8" Pitch£53.42 Add to
096118801745/0CHAIN 16"-57E Pitch 3/8" Width 0.050"£36.46 Add to
