Housing 2

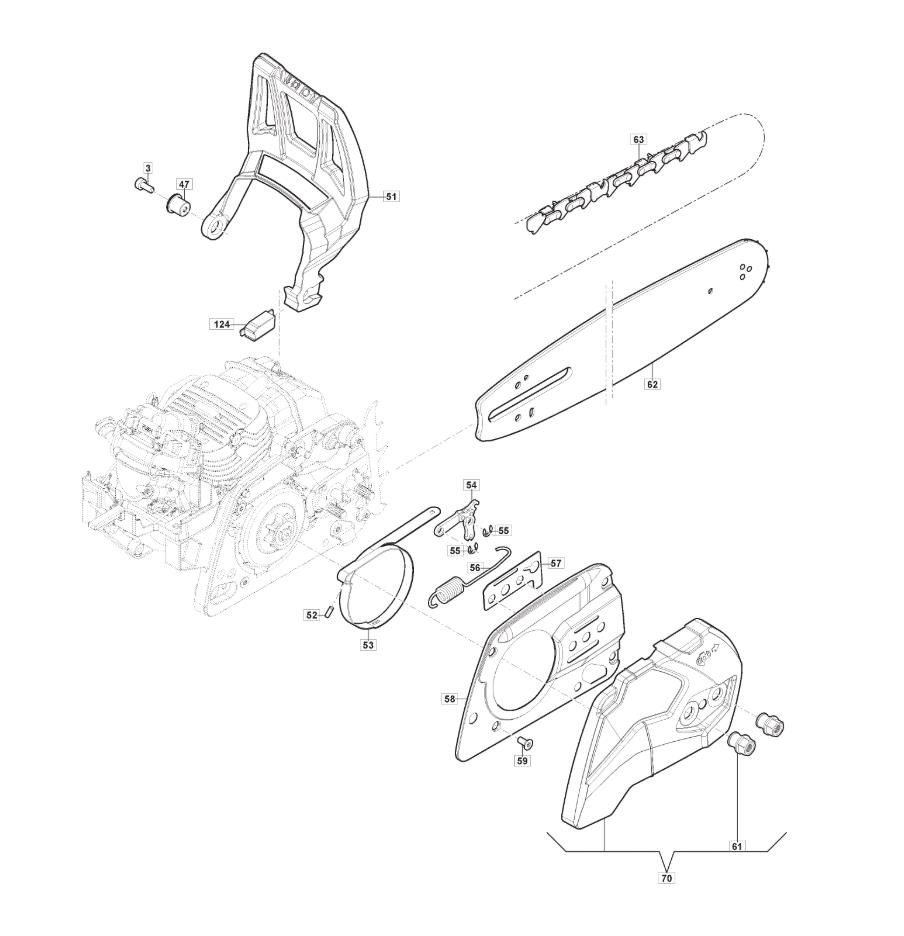

Housing 2 assembly details for Mountfield MC 3814 (240381403/M17) 2018 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0032135040TORX SCREW M5 x 18£1.79 Add to
047118804318/0BUSH£2.32 Add to
051323455013/0HAND GUARD£14.86 Add to
052123753000/0PIN D=3 x 9£2.00 Add to
053118804314/0BRAKE BAND£5.05 Add to
054118804313/0CHAIN BRAKE LEVER£17.45 Add to
055118804407/0RETAINING RING£1.50 Add to
056118804312/0BRAKE SPRING£1.79 Add to
057118804311/0GASKET£2.87 Add to
058118804310/0BRAKE SPRING COVER£7.78 Add to
0599860-0520-16SCREW£1.79 Add to
061118804303/0CLUTCH COVER NUT£3.69 Add to
062118800127/0GUIDE BAR 14" 3/8" Pitch£53.42 Add to
0631519-9117-03STIGA Chain loop N1C-BL-053E£18.53 Add to
070118804869/0CLUTCH COVER ASSEMBLY [RED]£21.14 Add to
124118804910/0RETURN SPRING GUARD£5.37 Add to
