Engine

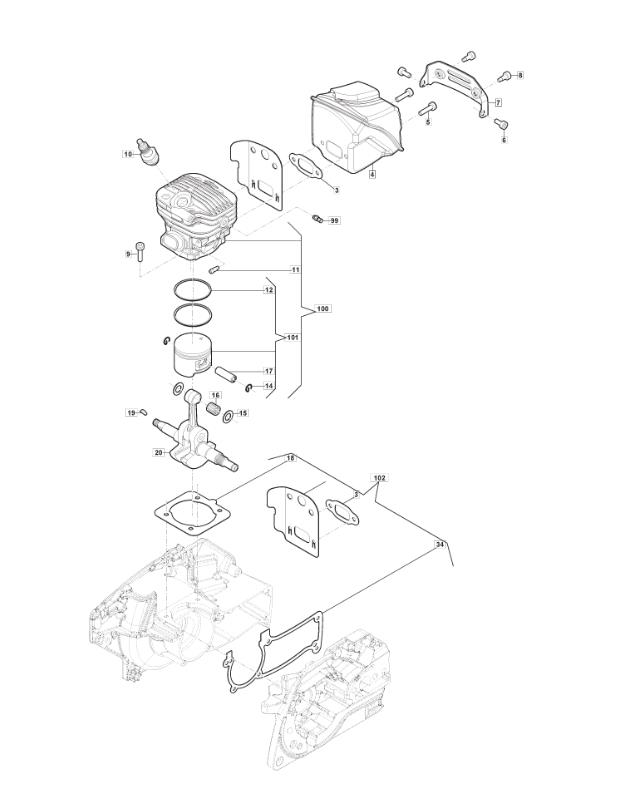

Engine assembly details for Mountfield MC 5218 (240521803/M17) 2018 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
003118804618/0MUFFLER GASKET£2.06 Add to
004118804919/0MUFFLER£54.16 Add to
0052132550SCREW TCCE M5 x 25£1.79 Add to
0062135040TORX SCREW M5 x 18£1.79 Add to
007118804920/0MUFFLER COVER£4.82 Add to
0082135040TORX SCREW M5 x 18£1.79 Add to
0092132550SCREW TCCE M5 x 25£1.79 Add to
0103210024SPARK PLUG CHAMPION RCJ7Y , NGK BPMR6A£4.52 Add to
012118804249/0PISTON RING 52cc£4.52 Add to
014118804255/0CIRCLIP£1.58 Add to
016118804412/0NEEDLE BEARING 13 x 10 x 12.5£9.00 Add to
017118804223/0PISTON PIN£2.06 Add to
018118804619/0CYLINDER GASKET£1.91 Add to
019118800959/0WOODRUFF KEY 3 x 3.5 x 10£2.00 Add to
020118804393/0CRANKSHAFT£61.88 Add to
034118804620/0CRANKCASE GASKET£2.32 Add to
099118804531/0DECOMPRESSION VALVE£29.14 Add to
100118805303/0CYLINDER-PISTON KIT 52cc£92.95 Add to
101118804247/0PISTON ASSEMBLY 52cc£22.76 Add to
102118804253/0GASKET KIT£7.36 Add to
103118805165/0CYLINDER GASKET£2.18 Add to
