Tubes, Throttle Controls

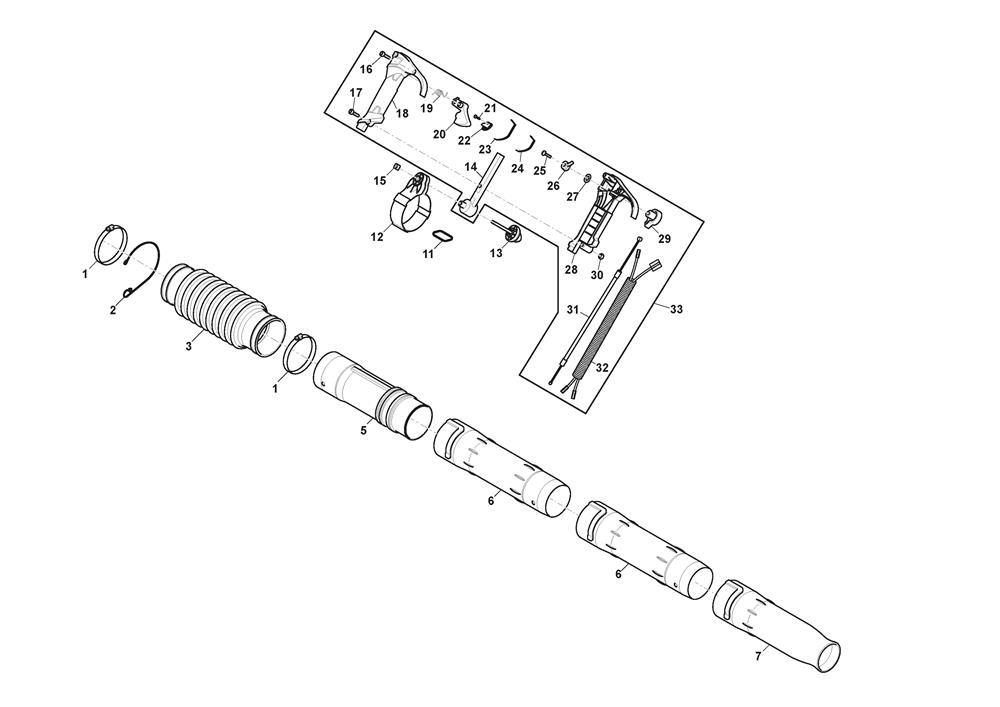

Tubes, Throttle Controls assembly details for Mountfield MBP 750 (255175103/M18) 2018 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
002118804432/0CLIP£2.87 Add to
003118804492/0FLEXIBLE HOSE£18.53 Add to
005118804496/0REAR TUBE£18.27 Add to
006118804493/0INTERMEDIATE TUBE£18.27 Add to
007118804494/0NOZZLE£18.27 Add to
011118804480/0CONNECTING SHACKLE£2.06 Add to
012118804480/0CONNECTING SHACKLE£2.06 Add to
013118804453/0LOCK KNOB£2.74 Add to
0152461030SQUARE NUT M5 x 10 x 6£1.79 Add to
016112728518/0SELF-TAPPING SCREW 5.5 x 13£2.06 Add to
0179947-0540-19SCREW£2.06 Add to
018118804489/0RIGHT HANDGRIP£10.36 Add to
019118804487/0TRIGGER SPRING£1.74 Add to
020118804483/0THROTTLE TRIGGER£1.79 Add to
021112728099/1SELF-TAPPING SCREW 4.2 x 16£2.06 Add to
022118804484/0LOCATION-LIMITED PLATE£1.74 Add to
023118804486/1LEAF SPRING B£2.06 Add to
024118804485/0LEAF SPRING A£1.91 Add to
025112728099/1SELF-TAPPING SCREW 4.2 x 16£2.06 Add to
026118804481/0THROTTLE SETTING LEVER£1.50 Add to
027118804503/0SPRING WASHER 10£1.74 Add to
028118804977/0HANDLE ASSY£68.33 Add to
029118804482/0THROTTLE SETTING KNOB£2.06 Add to
030112291000/0HEXAGON NUT M5£2.06 Add to
031118804491/0THROTTLE CABLE£9.31 Add to
032118804490/0FLAMEOUT LINE£5.52 Add to
033118804977/1HANDLE ASSEMBLY£68.16 Add to
