Full Assembly (2)

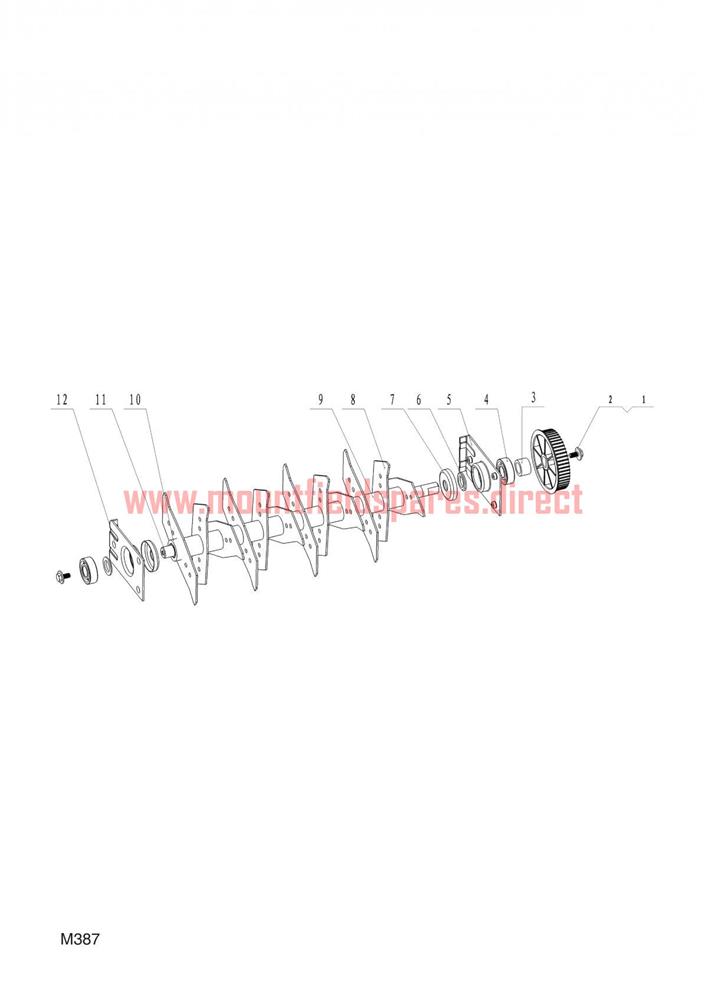

Full Assembly (2) assembly details for Mountfield VE32 (20100421) 2007 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
000	1716-0034-01	BLADE SHAFT ASSEMBLY	£87.85	Add to
001	1716-0187-01	HEX BOLT	£3.64	Add to
002	1716-0011-01	WASHER	£3.64	Add to
002	1716-0012-01	WASHER	£3.64	Add to
003	1716-0037-01	Spacer	£5.66	Add to
004	1716-0038-01	BALL BEARING (2 PCS)	£17.83	Add to
005	1716-0039-01	BEARING BASE-LH	£15.31	Add to
006	1716-0040-01	Bearing washer Kit of 2	£4.01	Add to
007	1716-0041-01	Bearing cuff Kit of 2	£5.66	Add to
008	1716-0042-01	BLADE KIT (12 PCS)	£33.79	Add to
009	1716-0043-01	BLADE SPACER SET (11 PCS)	£20.23	Add to
010	1716-0044-01	Bearing spacer Kit of 2	£5.66	Add to
011	1716-0045-01	BLADE SHAFT	£23.94	Add to
012	1716-0046-01	Bearing base-RH	£15.30	Add to
