Engine 1

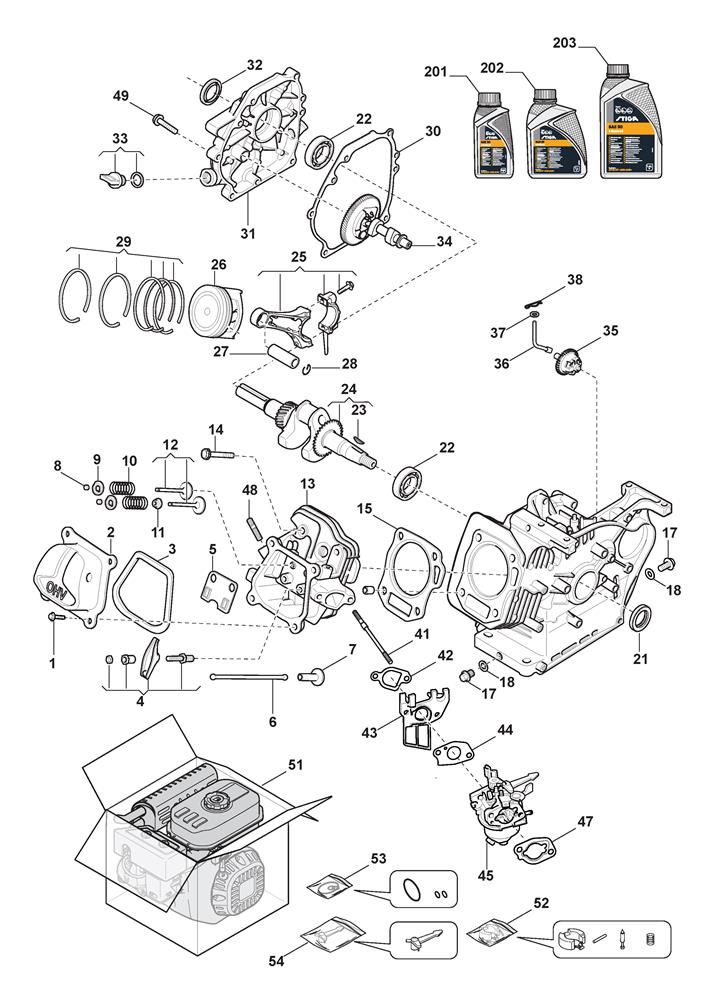

Engine 1 assembly details for Mountfield MVP 40 G (211400143/M17) 2018 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118550816/0SCREW£2.59 Add to
002118550784/0HEAD COVER£14.00 Add to
003118551163/0CYLINDER HEAD GASKET£4.75 Add to
004118550273/0VALVE ARM SET£14.18 Add to
005118550622/0PLATE£6.14 Add to
007118550623/0VALVE LIFTER£14.00 Add to
008118551166/0VALVE CAP£2.47 Add to
009118551167/0VALVE SPRING RETAINER£3.69 Add to
010118551300/0VALVE SPRING£4.87 Add to
011118551303/0SEAL , GUIDE£6.27 Add to
012118551348/0VALVE KIT£17.54 Add to
013118550798/0CYLINDER HEAD£56.58 Add to
014118551200/0BOLT£3.23 Add to
015118551294/0GASKET , CYLINDER£12.00 Add to
017118550460/0BOLT , DRAIN PLUG£3.83 Add to
018118550793/0WASHER£1.79 Add to
021118550379/0OIL SEAL£7.10 Add to
022118550280/0BALL BEARING£23.72 Add to
023118550288/0WOODRUFF KEY£6.55 Add to
024118550617/0CRANKSHAFT£103.58 Add to
025118550470/0CONNECTING ROD ASS.Y£45.26 Add to
026118551213/0PISTON£21.67 Add to
027118550915/0PISTON PIN£5.73 Add to
028118550914/0PISTON PIN CLIP£2.06 Add to
029118550286/0PISTON RING SET£27.27 Add to
030118550782/0CRANKCASE GASKET£10.97 Add to
031118551161/0CRANKCASE COVER£50.70 Add to
032118550379/0OIL SEAL£7.10 Add to
033118551160/0OIL TANK CAP£5.46 Add to
034118550624/0CAMSHAFT£51.02 Add to
035118550787/0SPEED GOVERNOR ASSEMBLY£14.58 Add to
036118550459/0GOVERNOR ARM SHAFT£6.55 Add to
037118550858/0WASHER£2.59 Add to
041118550299/0STUD BOLT£6.95 Add to
042118551174/0CARBURETTOR GASKET£1.79 Add to
043118551175/0INTAKE MANIFOLD£4.10 Add to
044118551173/0CARBURETTOR GASKET£1.79 Add to
045118550877/0CARBURETTOR£76.04 Add to
047118550482/0SPACER£14.32 Add to
048118550454/0STUD BOLT£3.36 Add to
049118551199/0BOLT£2.59 Add to
051118551353/1ENGINE ASSEMBLY (LC165F)£470.06 Add to
052118550486/0VALVE FLOAT ASSY£14.66 Add to
053118550485/0CARBURETTOR GASKETS£5.29 Add to
054118550481/0CHOKE LEVER£6.27 Add to
2011111-9234-01SAE 30 4 STROKE OIL 0.6 Litre [16]£6.27 Add to
2011111-9237-0110W-30 4 STROKE OIL 0.6 Litre [16]£6.55 Add to
2021111-9235-01SAE 30 4 STROKE OIL 1 Litre [12]£8.73 Add to
2031111-9236-01SAE 30 4 STROKE OIL 1.4 LITRE [12]£10.91 Add to
2031111-9238-0110W-30 4 STROKE OIL 1.4 Litre [12]£12.55 Add to
