ENGINE

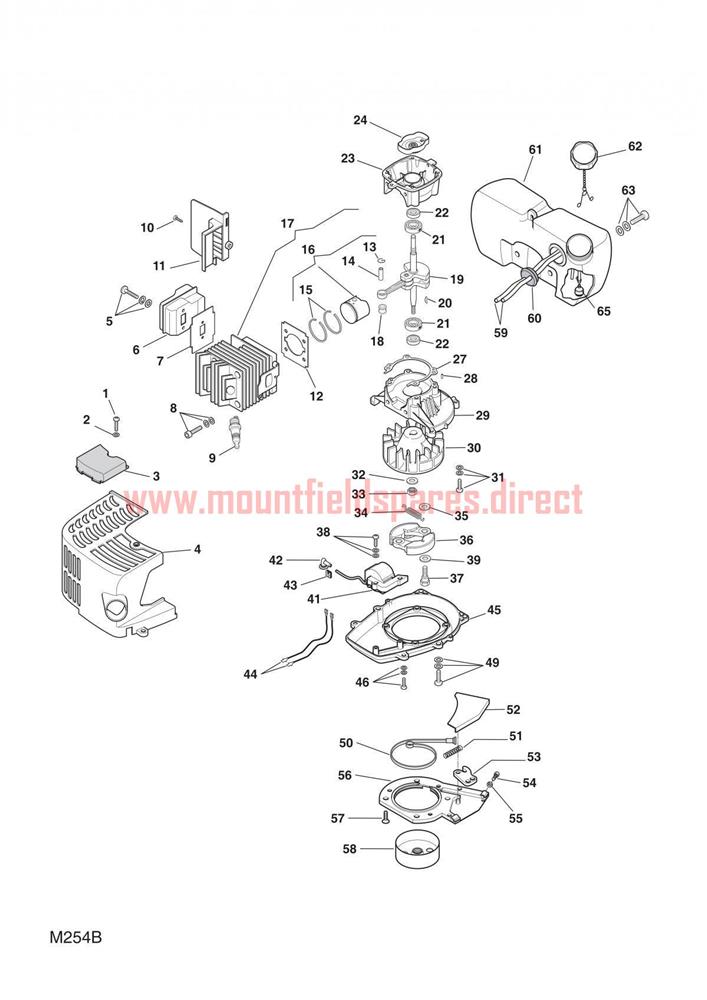

ENGINE assembly details for Mountfield HT55 2006 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	6981116	SCREW OUTFIT	£1.79	Add to
002	6981154	WASHER	£4.01	Add to
003	6981158	Deflector (OBSOLETE)	N/A
004	6981159	CYLINDER COVER ORANGE	£48.59	Add to
005	6981115	Screws Set	£4.01	Add to
006	6981160	MUFFLER	£33.77	Add to
007	6981041	Gasket	£6.88	Add to
008	6981113	Screws Set	£4.01	Add to
009	6981163	Spark Plug	N/A	POA
011	6981043	Guard Assy	£7.18	Add to
012	6981004	CYLINDER GASKET	£3.15	Add to
013	6981015	Washer, Piston Pin	£4.01	Add to
014	6981014	PISTON PIN	£15.21	Add to
015	6981013	PISTON RING	£7.10	Add to
016	6981012	PISTON ASS.Y	£31.15	Add to
017	6981003	CYLINDER-PISTON ASSEMBLY	£67.05	Add to
018	6981017	Needle Bearing	£9.54	Add to
019	6981016	CRANKSHAFT	£58.73	Add to
020	6981096	Flywheel Key	£4.01	Add to
021	6981110	NEEDLE BEARING	£9.07	Add to
022	6981008	SEAL RING	£2.87	Add to
023	6981006	REAR CRANKCASE	£27.30	Add to
024	6981031/1	STARTER CUP	£14.73	Add to
027	6981007	GASKET	£2.87	Add to
028	6981126	Centring Pin	£4.01	Add to
029	6981005	FRONT CRANKCASE	£13.31	Add to
030	6981002	FLYWHEEL	£40.64	Add to
031	6981102	SCREW SET (OBSOLETE)	N/A
032	6981128	WASHER	£3.64	Add to
033	6981143	Nut	£4.01	Add to
034	6981034	CLUTCH SPRING	£2.06	Add to
035	6981276	Washer	£4.01	Add to
036	6981032	CLUTCH UNIT (OBSOLETE) (OBSOLETE)	N/A
037	6981035	SCREW	£3.55	Add to
039	6981033	Washer	£4.01	Add to
041	6981204	IGNITION COIL	£76.59	Add to
042	6981023	SPARK PLUG COVER	£8.73	Add to
043	6981133	Cable Retainer	£4.60	Add to
044	6981022	Cable	£5.66	Add to
045	6981205	SUPPORT	£38.96	Add to
049	6981118	SCREW OUTFIT	£1.79	Add to
050	6981203	BRAKE BAND	£14.79	Add to
051	6981202	Spring	£5.66	Add to
052	6981198	Cover	N/A	POA
053	6981201	Lever	£5.66	Add to
054	6981200	Screw (OBSOLETE) (OBSOLETE)	N/A
055	6981199	Nut	£4.01	Add to
056	6981197	Flange	N/A	POA
057	6981144	Screw	£4.01	Add to
058	6981164	CLUTCH DRUM	£50.95	Add to
059	123867028/0	FUEL PIPE	£2.00	Add to
060	123275032/0	RUBBER PIPE GROMMET	£2.67	Add to
061	6981313	Kit Fuel Tank	N/A	POA
062	0000006981091	FUEL TANK CAP (OBSOLETE)	N/A
063	6981101	Screws Set	£4.01	Add to
065	183520009/0	INTAKE FILTER	£5.87	Add to
