Cutting Unit

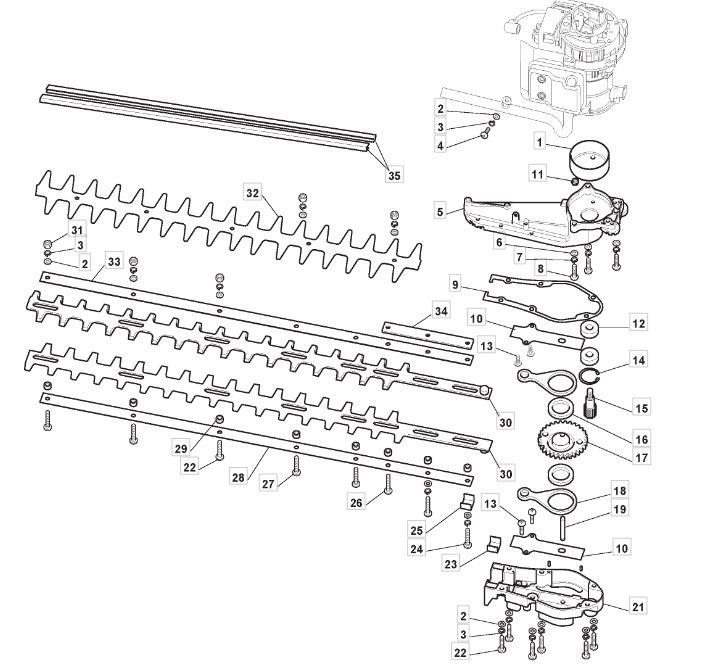

Cutting Unit assembly details for Mountfield H 60 (252961000/14) 2017 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001123050010/0CLUTCH DRUM£13.23 Add to
002123657013/0WASHER£1.79 Add to
003123657017/0WASHER£2.18 Add to
005118804982/0ENGINE SUPPORT ASS.Y£190.93 Add to
006123657013/0WASHER£1.79 Add to
007123657017/0WASHER£2.18 Add to
008123878081/0SCREW£1.79 Add to
009123280082/0CRANKCASE GASKET£2.32 Add to
010123208418/0SPACER PLATE£1.91 Add to
011112379520/0GREASE NIPPLE£2.06 Add to
012114215222/0BEARING£8.84 Add to
015123570052/0PINION£8.91 Add to
016114215222/0BEARING£8.84 Add to
017123664000/0SPROCKET£18.90 Add to
018123041502/0CONNECTING ROD£16.36 Add to
021123685023/0LOWER GEAR CASE£12.85 Add to
022123878081/0SCREW£1.79 Add to
024123878118/0SCREW£2.00 Add to
025123208419/0FLANGE BLADE PLATE£1.79 Add to
026123878110/0SCREW£2.00 Add to
027123878113/0MANIFOLD SCREW£1.79 Add to
028123294006/0LOWER BLADE GUIDE£6.16 Add to
029123044222/0BUSH£1.79 Add to
030123305004/0BLADE£52.12 Add to
031123120014/0NUT£1.79 Add to
032123600081/0BLADE PROTECTION GUARD£7.78 Add to
033123294007/0UPPER BLADE GUIDE£5.60 Add to
035123085002/0BLADE COVER£6.01 Add to
