Cutting Unit

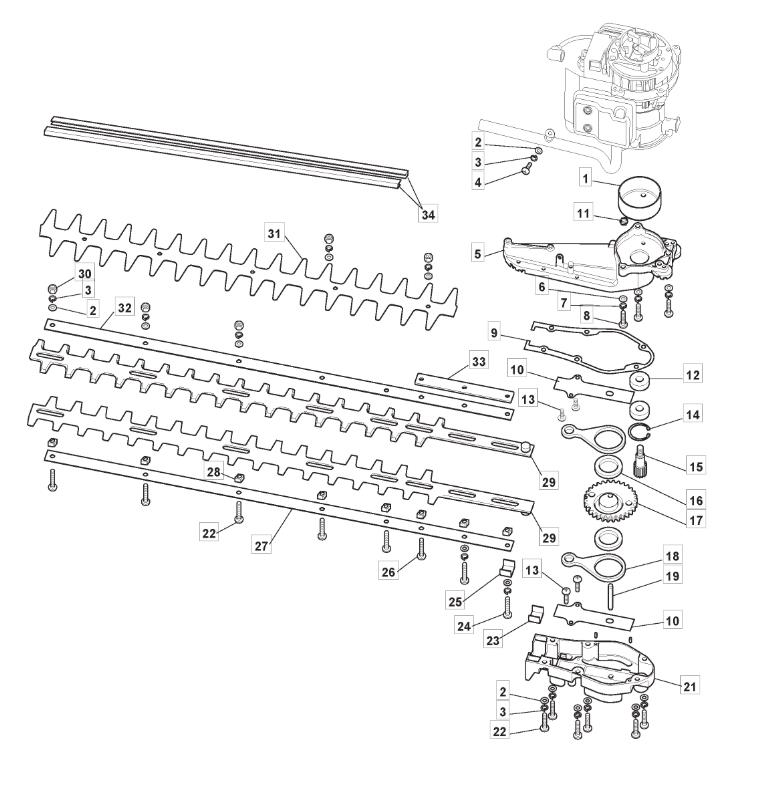

Cutting Unit assembly details for Mountfield MHJ 2424 (252900023/M14) 2018 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001123050010/0CLUTCH DRUM£13.23 Add to
003123657013/0WASHER£1.79 Add to
004123657017/0WASHER£2.18 Add to
005123878115/0SCREW£2.00 Add to
006118804982/0ENGINE SUPPORT ASS.Y£190.93 Add to
007123657020/0WASHER£1.79 Add to
009123878116/0SCREW£1.79 Add to
010123280082/0CRANKCASE GASKET£2.32 Add to
011123208418/0SPACER PLATE£1.91 Add to
012112379520/0GREASE NIPPLE£2.06 Add to
013114215222/0BEARING£8.84 Add to
014123878020/0TORX SCREW M4 x 10£1.79 Add to
016123570052/0PINION£8.91 Add to
017114215223/0BEARING£11.46 Add to
018123664000/0SPROCKET£18.90 Add to
019123041502/0CONNECTING ROD£16.36 Add to
021123665004/0ROLLER X BRAKE RIBBON 01.05.0161£1.79 Add to
022123685023/0LOWER GEAR CASE£12.85 Add to
023123878081/0SCREW£1.79 Add to
025123878118/0SCREW£2.00 Add to
026123208419/0FLANGE BLADE PLATE£1.79 Add to
027123878113/0MANIFOLD SCREW£1.79 Add to
028123294006/0LOWER BLADE GUIDE£6.16 Add to
029123044222/0BUSH£1.79 Add to
030123305004/0BLADE£52.12 Add to
031123120014/0NUT£1.79 Add to
032123600081/0BLADE PROTECTION GUARD£7.78 Add to
033123294007/0UPPER BLADE GUIDE£5.60 Add to
035123085002/0BLADE COVER£6.01 Add to
036118804982/0ENGINE SUPPORT ASS.Y£190.93 Add to
