Engine

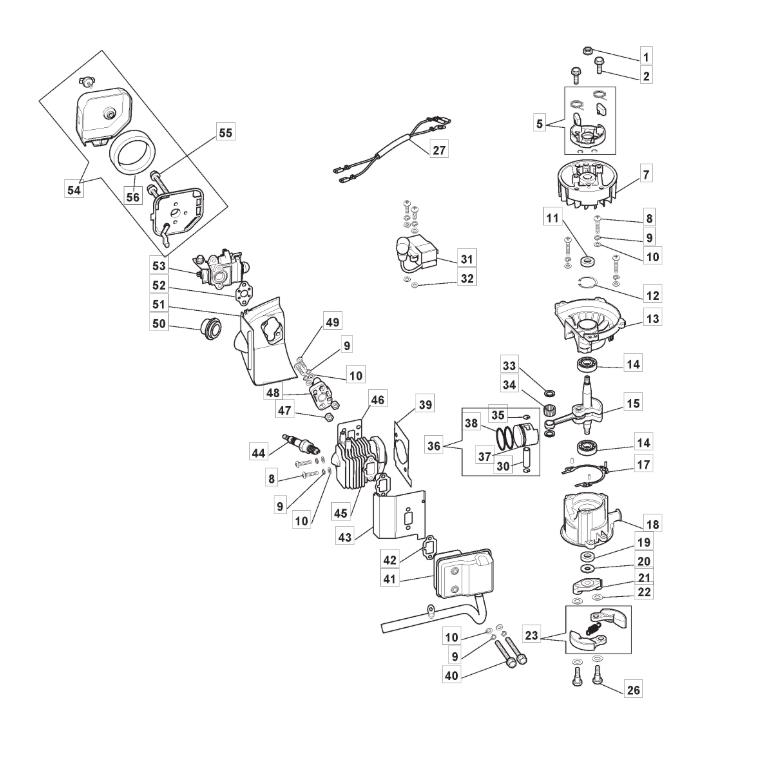

Engine assembly details for Mountfield MHJ 2424 (252900023/M14) 2018 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
002123878109/0SCREW£2.00 Add to
005183082003/0STARTER CUP ASSEMBLY£5.19 Add to
007118802744/0FLYWHEEL£34.35 Add to
008123878124/0SCREW£1.79 Add to
009123657017/0WASHER£2.18 Add to
010123657013/0WASHER£1.79 Add to
011119035164/0OIL SEAL£2.86 Add to
012112610095/0CIRCLIP D=28£2.06 Add to
013123685020/0CRANKCASE£20.04 Add to
014114215221/0BEARING£7.10 Add to
015123020033/1CRANKSHAFT£42.44 Add to
016123665004/0ROLLER X BRAKE RIBBON 01.05.0161£1.79 Add to
017123280077/0CRANKCASE GASKET£2.32 Add to
019119035165/0OIL SEAL£2.86 Add to
021123445268/0CLUTCH HUB£6.14 Add to
022123657020/0WASHER£1.79 Add to
026123878111/0CLUTCH SCREW£2.32 Add to
027123065045/0SPARK PLUG CABLE£1.58 Add to
0292312090FLAT WASHER D=5 x 10 x 1£1.79 Add to
0302321050WASHER 4 x 10 x 0.5£1.79 Add to
031118802743/0IGNITION COIL£60.24 Add to
032123160063/0SPACER£1.79 Add to
033118800959/0WOODRUFF KEY 3 x 3.5 x 10£2.00 Add to
034123652505/0WASHER£2.87 Add to
035123235008/0NEEDLE BEARING£4.64 Add to
036123202006/0CIRCLIP£1.79 Add to
037123590012/0PISTON£9.54 Add to
038123760006/0PISTON PIN£2.06 Add to
039123204016/0PISTON RING£2.74 Add to
040123280078/0CYLINDER GASKET£2.06 Add to
043118802742/0MUFFLER£56.15 Add to
044123600078/0HEAT GUARD£3.15 Add to
0453210024SPARK PLUG CHAMPION RCJ7Y , NGK BPMR6A£4.52 Add to
046123071023/0CYLINDER£46.61 Add to
047123280080/0INTAKE MANIFOLD GASKET£1.79 Add to
048123120013/0NUT£1.79 Add to
049123073518/0INTAKE MANIFOLD£2.87 Add to
050123600079/0GROMMET£2.87 Add to
051123600080/0CYLINDER COVER£3.15 Add to
053123878113/0MANIFOLD SCREW£1.79 Add to
054123280081/0CARBURETTOR GASKET£1.79 Add to
055123054036/0CARBURETTOR£44.09 Add to
058123220011/0AIR FILTER£3.96 Add to
059123040005/0AIR FILTER ASSEMBLY£6.01 Add to
060123040005/0AIR FILTER ASSEMBLY£6.01 Add to
062183215010/0CLUTCH ASSEMBLY£8.60 Add to
063123040005/0AIR FILTER ASSEMBLY£6.01 Add to
064183590007/0PISTON ASSEMBLY£15.59 Add to
