Grass-Catcher Assy.

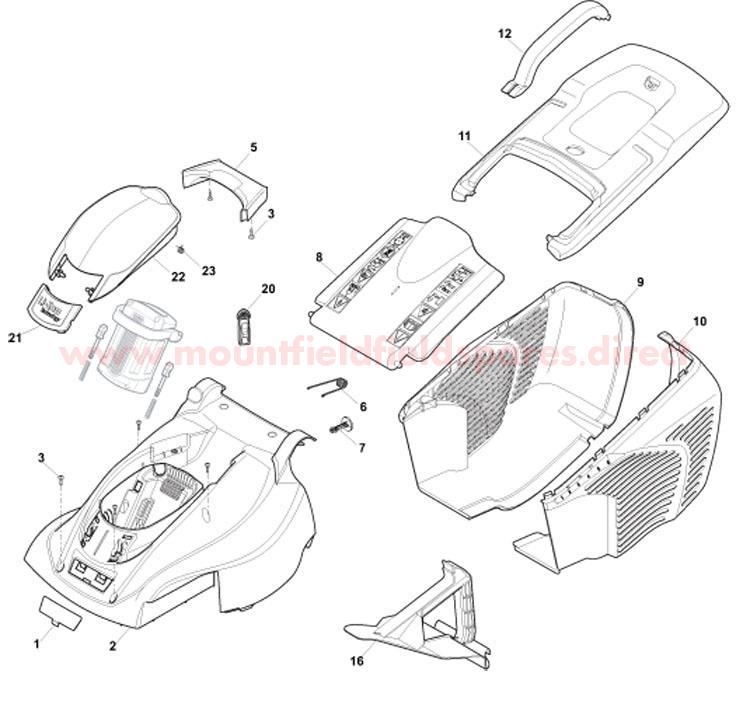

Grass-Catcher Assy. assembly details for Mountfield Princess38Li 20121602 2012 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001322055168/0COVER PLATE [GREY]£2.06 Add to
002322055166/0DECK COVER [RED] EL380 Li£42.27 Add to
003112728714/0SELF-TAP SCREW K50 x 20£2.40 Add to
005322393662/0COVER HANDLE EL 380 LI GREY GGP (AVIO)£5.61 Add to
006122450470/0SPRING£2.87 Add to
007322524356/0DEFLECTOR SECURITY PIN£1.79 Add to
008322600235/0DEFLECTOR (GREY)£8.49 Add to
009322486299/0LOWER RIGHT GRASSBOX [GREY]£22.08 Add to
010322486300/0LOWER LEFT GRASSBOX [GREY]£22.08 Add to
011322486309/0GRASSCATCHER TOP [RED]£15.69 Add to
012322393656/0GRASSCATCHER HANDLE [GREY]£4.10 Add to
016322140242/0MULCHING PLUG [EL380]£13.77 Add to
020322076570/1BATTERY SAFETY KEY£5.87 Add to
021322545226/0BATTERY DOOR PLATE£11.32 Add to
022322055167/0BATTERY COVER£11.46 Add to
023122450473/0SPRING£5.32 Add to
