Handle

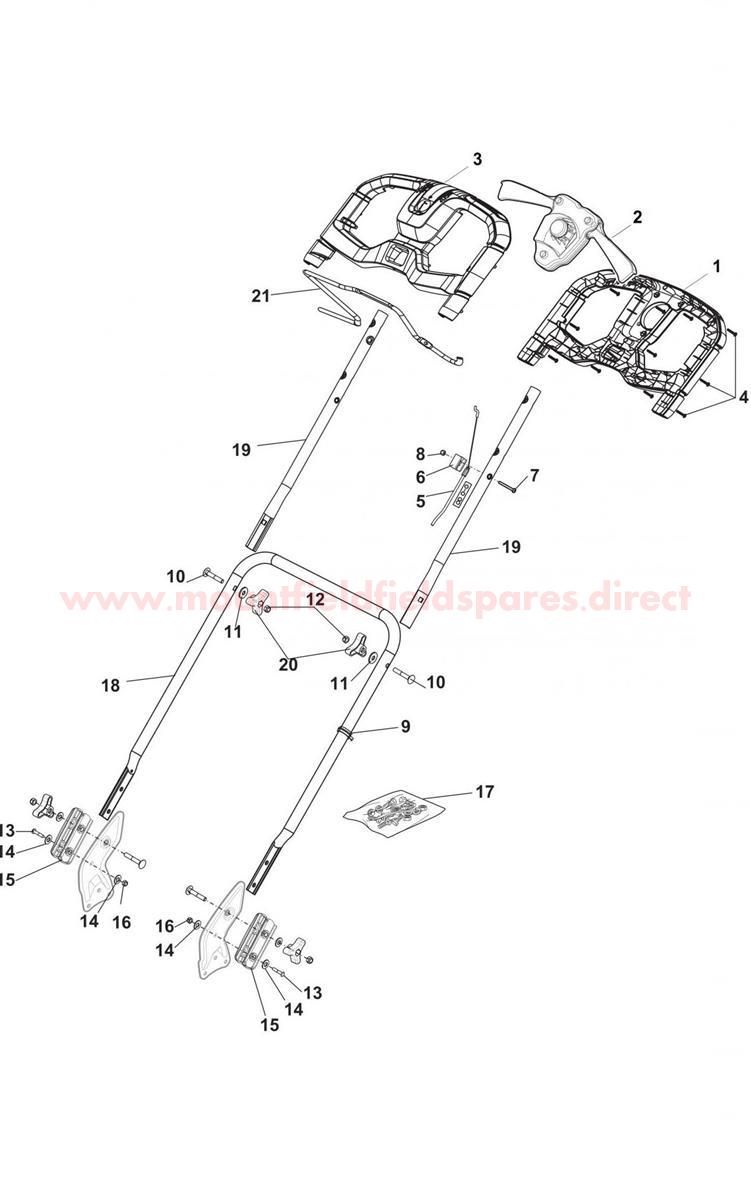

Handle assembly details for Mountfield S46 PD Li (295486003) 2016 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	322291075/0	LOWER HALF HANDGRIP SWITCH	£19.09	Add to
002	381600558/0	OPC SWITCH ASSEMBLY 48-80V [GREY]	£42.53	Add to
003	322291074/0	UPPER HALF HANDGRIP SWITCH	£19.09	Add to
004	112728711/0	SELF-TAPPING EJOT PT TORX WN1451 K40X18	£1.79	Add to
005	381030085/0	CLUTCH DRIVE CABLE	£19.36	Add to
006	322551685/0	CABLE HOLDER BLOCK	£7.52	Add to
007	112727783/0	CROSS-HEAD SCREW M6 x 40	£2.06	Add to
008	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
009	122192000/1	CABLE CLAMP	£1.91	Add to
010	112819121/0	CARRIAGE BOLT M8 X 55	£1.96	Add to
011	122671651/0	WASHER 8.3 x 22 x 2	£2.32	Add to
012	112293200/0	HEXAGON NUT M8 UNI 5588 ACC.6S	£1.86	Add to
013	112793701/0	HEX-HEAD SCREW M8 x 30	£1.76	Add to
014	112521350/0	WASHER M8 8.4 x 16 x 1.6	£2.06	Add to
015	322551582/0	HANDLE INSULATOR	£2.06	Add to
016	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
017	381008691/0	SCREWS ASSEMBLY KIT	£9.00	Add to
018	381006735/0	LOWER HANDLE [BLACK] CR ELECTRIC	£16.79	Add to
019	381007584/0	UPPER HANDLE [BLACK]	£16.78	Add to
020	122399900/0	3 SPOKE HANDWHEEL [BLACK]	£2.06	Add to
021	181003439/0	DRIVE LEVER HANDLE WBH BATTERY BLACK	£27.27	Add to
