Battery Motor Assy

Battery Motor Assy assembly details for Mountfield S46 PD LI (295486003/M17) 2018 model

Parts list

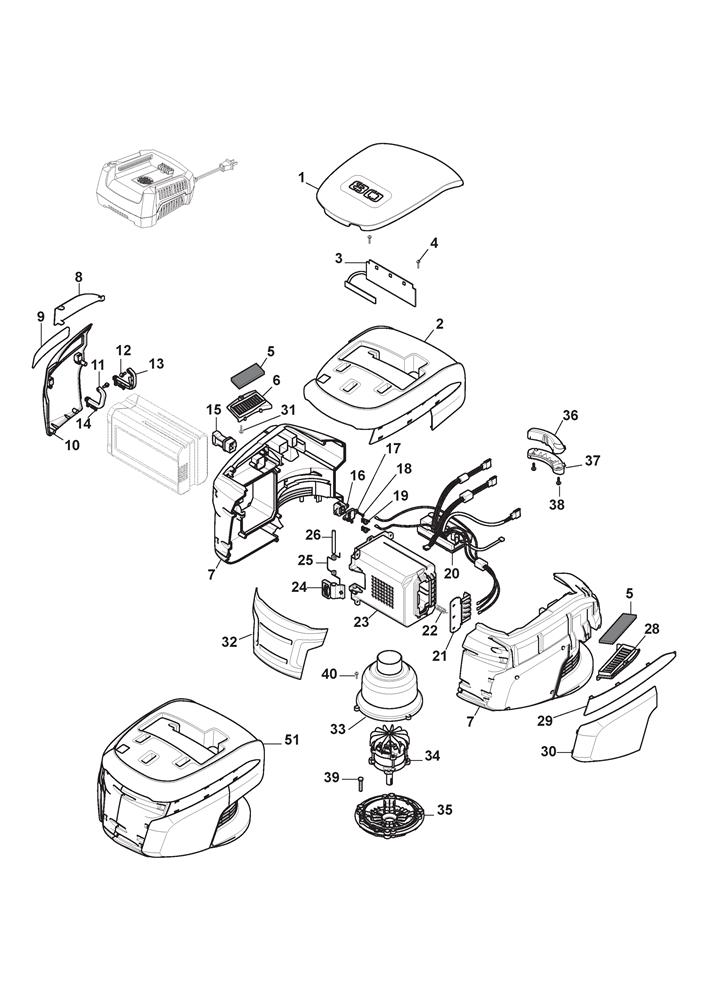

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001322109969/0A80V TOP COVER£34.68 Add to
002322109962/1TOP HOUSING [BLACK]£28.90 Add to
003118206007/1LIGHT BOARD POWERHEAD 80V£46.73 Add to
004112728099/1SELF-TAPPING SCREW 4.2 x 16£2.06 Add to
005118401009/0AIR FILTER£5.06 Add to
006322109973/0RIGHT INLET BOARD£4.35 Add to
007118810740/080V POWERHEAD HOUSING [BLACK]£73.87 Add to
009322109961/0TRANSPARENT COVER£5.87 Add to
010322109963/0BATTERY COVER [BLACK]£11.73 Add to
011322109971/0RIGHT ARM LEVER£5.05 Add to
012322524357/0FULCRUM PIN£2.06 Add to
013322109972/0LEFT ARM LEVER£5.05 Add to
014112728099/1SELF-TAPPING SCREW 4.2 x 16£2.06 Add to
015322076571/0BATTERY SAFETY KEY 80V£9.82 Add to
016322722828/0KEY HOLDER£4.43 Add to
017322109975/0KEY HOLDER COVER£4.91 Add to
018112728099/1SELF-TAPPING SCREW 4.2 x 16£2.06 Add to
019118810272/080V FEMALE CONNECTOR£4.10 Add to
020118206005/1MOTOR CONTROL BOARD (OBSOLETE) (OBSOLETE)N/A
021118810277/0BATTERY CLAMP£5.73 Add to
022118810276/0SPRING£1.79 Add to
023322109970/0BATTERY BOX£16.50 Add to
024118810273/0BATTERY BOX LEVER£1.79 Add to
025118810275/0SPRING£3.41 Add to
026118810274/0FIXED PIN£1.79 Add to
028322109974/0LEFT INLET BOARD£4.10 Add to
030322109964/0LEFT SIDE COVER [BLACK]£11.18 Add to
031112728099/1SELF-TAPPING SCREW 4.2 x 16£2.06 Add to
033322108321/0HOOD£6.59 Add to
034118563517/1ELECTRIC MOTOR 1500W DC BRUSHLESS 80V (OBSOLETE) (OBSOLETE)N/A
035322207232/1MOTOR BASE£13.00 Add to
036322722834/0UPPER CABLES GUARD£2.47 Add to
037322722833/0LOWER CABLES GUARD£3.00 Add to
038112728706/0SELF-TAPPING SCREW K40 x 16£2.06 Add to
039119216047/0HEX-HEAD SCREW M8 X 35£2.06 Add to
040112728099/1SELF-TAPPING SCREW 4.2 x 16£2.06 Add to
041322820089/0RUBBER GROMMET£1.79 Add to
051381270000/2MOTOR 1500W POWERHEAD [BLACK] LED£300.07 Add to
