ELECTRIC MOTOR/BLADE

ELECTRIC MOTOR/BLADE assembly details for Mountfield PRINCESS 34 LI KIT (294346063/M21) 2021 model

Parts list

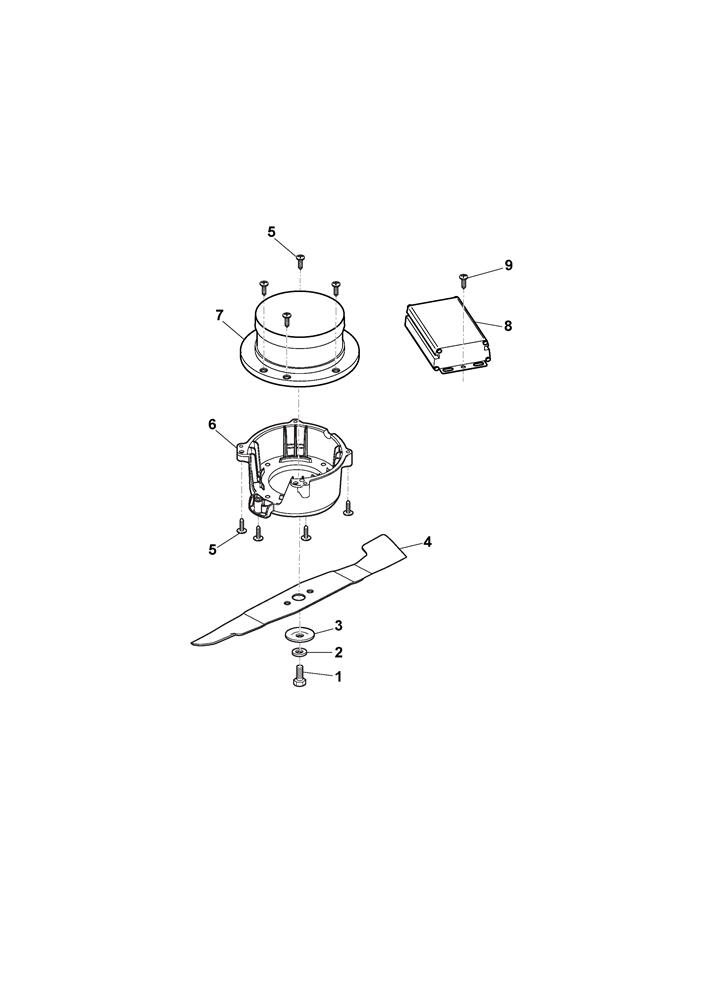

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001112793312/1SCREW M8x1x25 UNI5740 ACC.10.9 GEOME321A£2.06 Add to
002122671651/0WASHER 8.3 x 22 x 2£2.32 Add to
003112508122/0SPRING WASHER 8.2 x 23 x 0.9£2.06 Add to
004181004465/0WINGED BLADE L=340mm SLM 340£17.27 Add to
005112728904/0SELF-TAPPING SCREW K60 X 22 WM1451£1.95 Add to
006322207230/0MOTOR FLANGE£7.10 Add to
007118563519/0BATTERY MOTOR 48V£120.38 Add to
008118206013/0CONTROLLER Li 48V 20A£168.59 Add to
009112728714/0SELF-TAP SCREW K50 x 20£2.40 Add to
