CHASSIS HANDLE

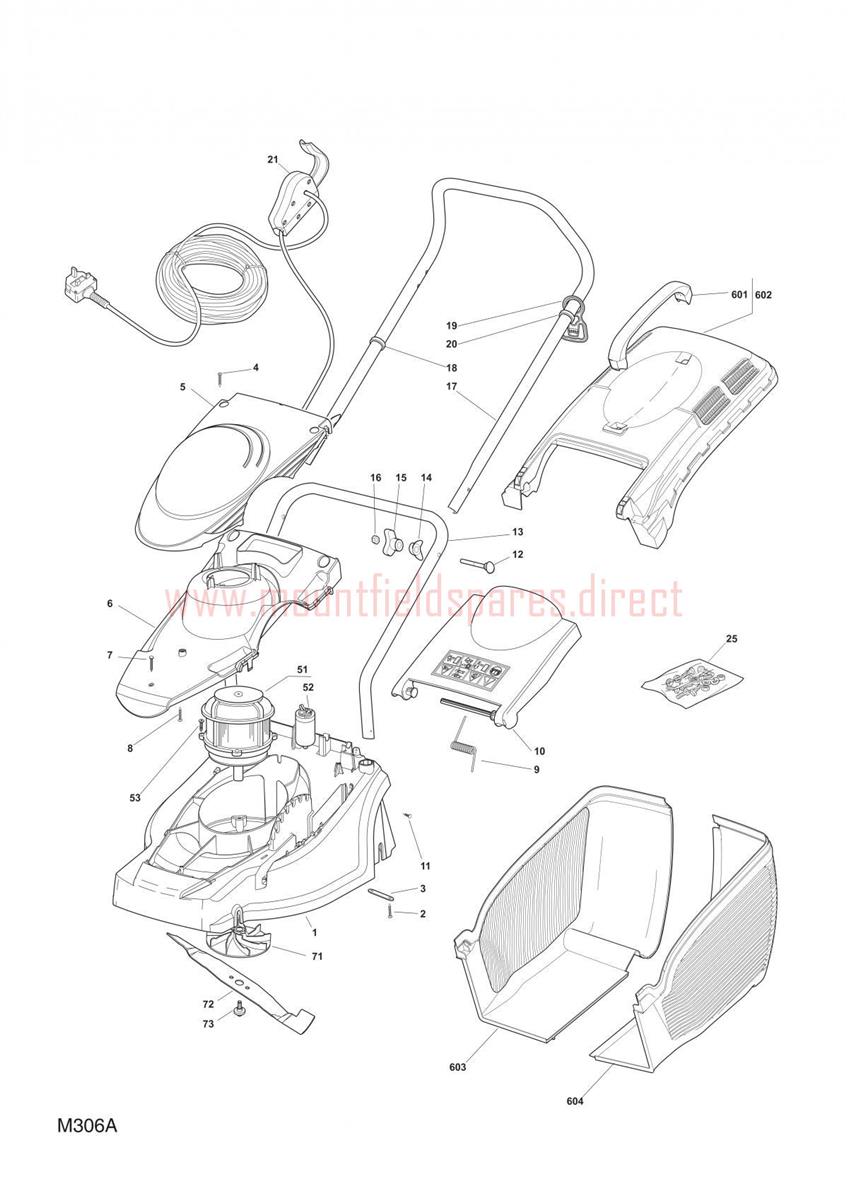

CHASSIS HANDLE assembly details for Mountfield EL410 2007 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
002112728706/0SELF-TAPPING SCREW K40 x 16£2.06 Add to
00322608535/0PLATE 2009£5.58 Add to
004112728685/0SELF-TAPPING SCREW D=4 x 25£4.10 Add to
00522055108/0COVER RED 2007£20.53 Add to
00622109723/0SUPPORT, COVER£29.62 Add to
007112728524/0SELF-TAPPING SCREW TCB 4.2 x 16£2.06 Add to
009122450423/0DEFLECTOR SPRING£5.21 Add to
01022600139/0STONE-GUARD, GREY£18.09 Add to
011112728450/0SELF-TAP SCREW 4.8 x 19£2.81 Add to
012112819201/0CARRIAGE BOLT M8 x 60£3.15 Add to
013381006661/0LOWER HANDLE SPL410 BLACK£27.27 Add to
014122680006/1PLASTIC WASHER£1.91 Add to
015122399900/03 SPOKE HANDWHEEL [BLACK]£2.06 Add to
016112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
017381006571/0UPPER HANDLE£24.95 Add to
018122192000/1CABLE CLAMP£1.91 Add to
019MX483CABLE CLEAT£7.19 Add to
020122192151/0ANCHOR CLAMP D=22£2.06 Add to
02181600502/1Dead hand switch (OBSOLETE)N/A
025381008674/0HANDLE SCREW OUTFIT SPL 410£4.54 Add to
051118563667/0ELEC.MOT.SUMEC1600W 230-240 50HZ S£187.79 Add to
052118563667/0ELEC.MOT.SUMEC1600W 230-240 50HZ S£187.79 Add to
053112735410/0FLANGED HEX-HEAD SCREW D=6 x 35£2.06 Add to
071322465602/1FAN/BLADE HOLDER£6.42 Add to
072181004145/0WINGED BLADE 41cm ELECTRIC£17.04 Add to
073381004352/1BLADE BOLT M9£4.52 Add to
601322393620/1GRASSCATCHER HANDLE GREY£4.52 Add to
60281000460/0Grassbox Upper Part (OBSOLETE)N/A
603322486176/0LOWER R/H GRASSCATCHER [BLACK]£31.89 Add to
604322486177/0LOWER L/H GRASSCATCHER [BLACK]£26.18 Add to
