Chassis

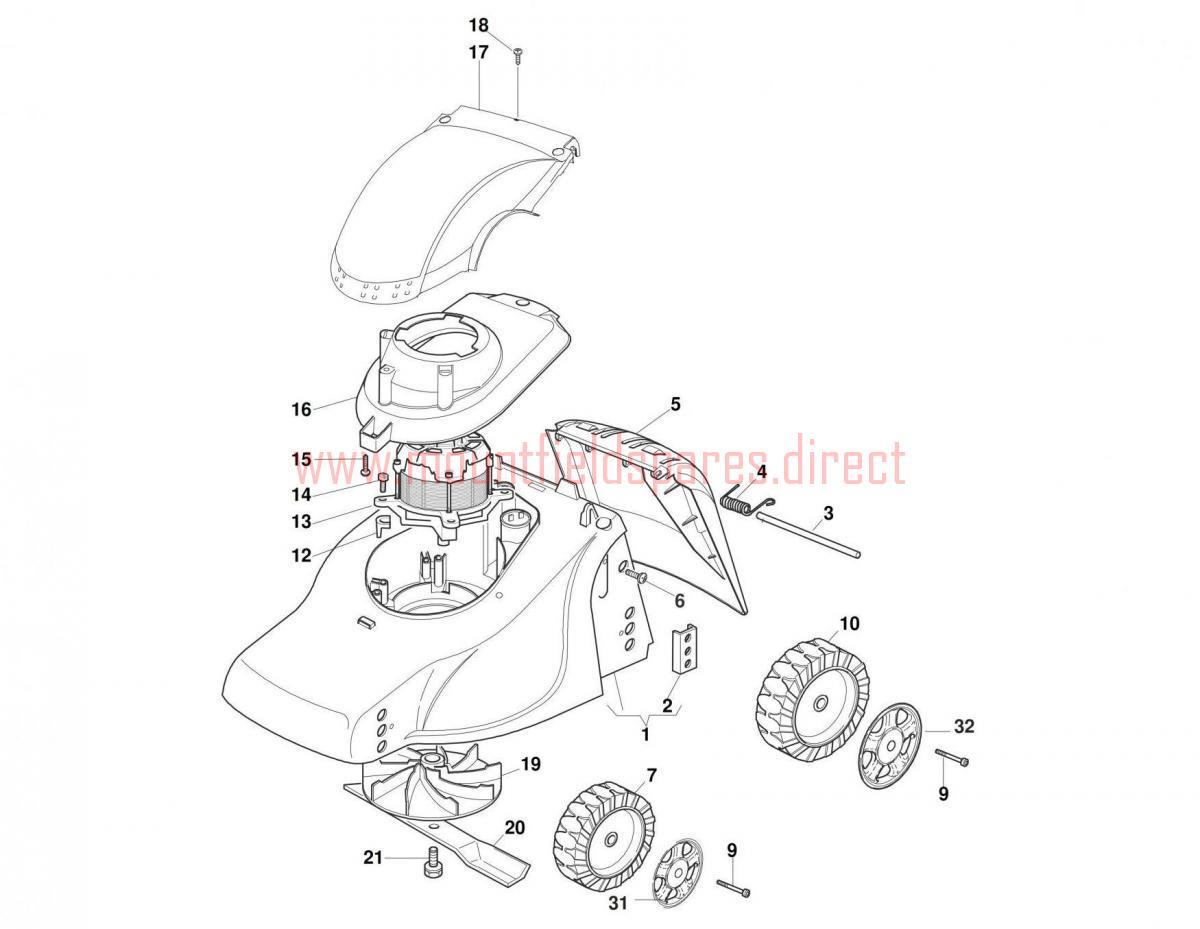

Chassis assembly details for Mountfield EL350 2009 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001322066784/0PLASTIC DECK [GREY] EL420£83.40 Add to
002322785087/1WHEELS SUPPORT£3.55 Add to
003122512530/0PIN£2.32 Add to
004122450250/0SPRING£2.06 Add to
00522600055/1STONE-GUARD H/C 350 BLACK£15.52 Add to
006112728450/0SELF-TAP SCREW 4.8 x 19£2.81 Add to
007122686083/0FRONT WHEEL 130mm [BLACK]£3.81 Add to
009122524337/0WHEEL BOLT C350/C390£3.83 Add to
010122686085/0REAR WHEEL D=160 C350-C390 BLACK£4.42 Add to
012122167700/0INSULATION SPACER£2.06 Add to
013118563678/0SUMEC MOTOR 1000W 230/240??V 50HZ (AL)£80.68 Add to
014112735410/0FLANGED HEX-HEAD SCREW D=6 x 35£2.06 Add to
016322055050/2SUPPORT COVER [BLACK]£5.21 Add to
017322055479/0COVER SPL410 RED 3002£12.04 Add to
018112728680/0FLANGED SCREW D=5 x 25£2.06 Add to
019322465602/1FAN/BLADE HOLDER£6.42 Add to
020181004115/1BLADE 33cm£8.73 Add to
021381004352/1BLADE BOLT M9£4.52 Add to
031322110420/0HUB CAP SPARK 130 (GREY)£6.17 Add to
032322110421/0HUB CAP SPARK 160 C350/390 GREY RAL9022£6.17 Add to
