Handle, Upper Part

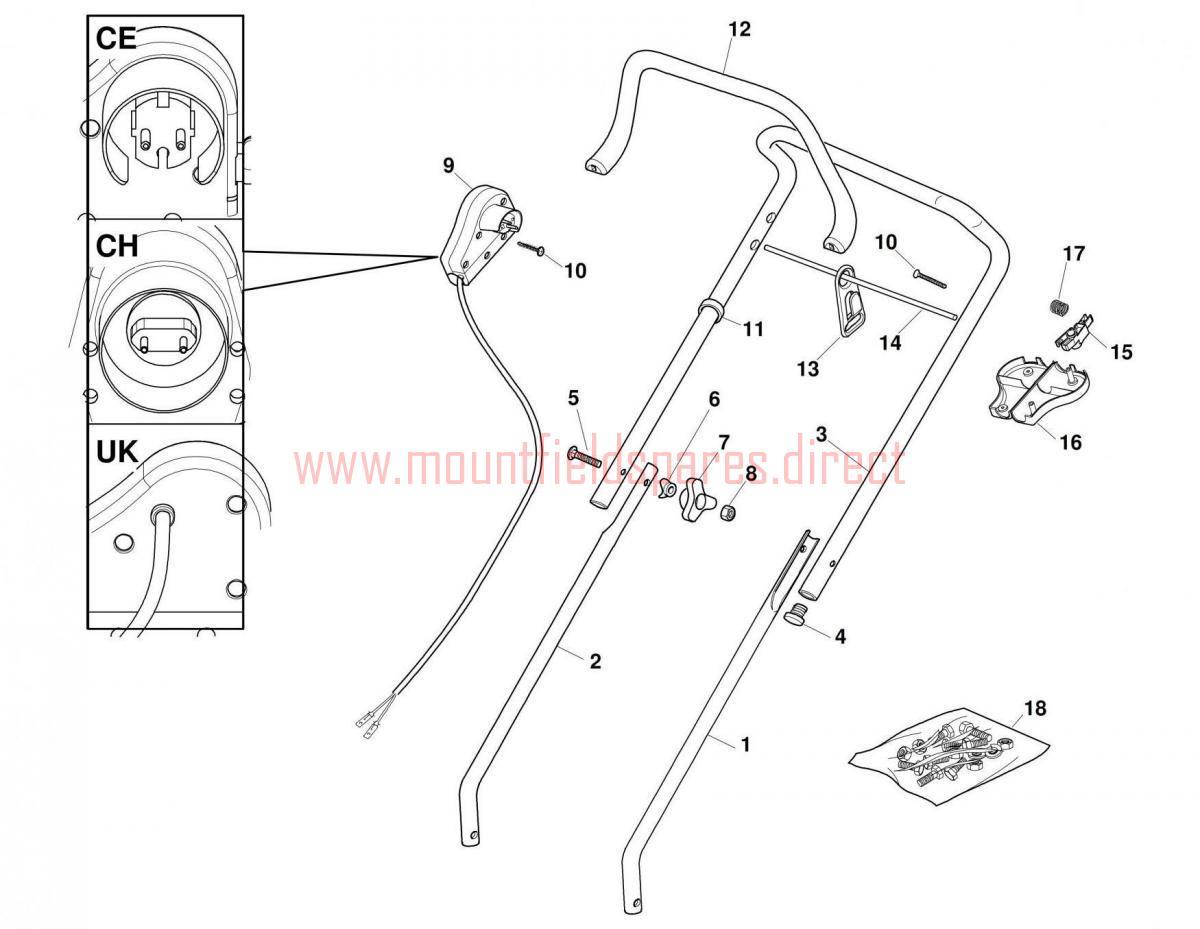

Handle, Upper Part assembly details for Mountfield EL350 2009 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
003	381006941/4	UPPER HANDLE KIWI/CIAO	£28.90	Add to
004	118566116/0	HANDLE CAP BLACK D=21	£2.74	Add to
005	112819121/0	CARRIAGE BOLT M8 X 55	£1.96	Add to
006	122680006/1	PLASTIC WASHER	£1.91	Add to
007	122399900/0	3 SPOKE HANDWHEEL [BLACK]	£2.06	Add to
008	112293200/0	HEXAGON NUT M8 UNI 5588 ACC.6S	£1.86	Add to
009	381600503/2	DEAD-HAND SWITCH -CE- THROUGH LEVER 2009 (OBSOLETE)	N/A
009	381600504/2	Dead Hand Switch CH (OBSOLETE)	N/A
009	381600548/0	SWITCH + CABLE ASSEMBLY UK [15M]	£91.58	Add to
010	112728701/0	SELF-TAP SCREW TORX K40 x 25	£1.79	Add to
011	122192000/1	CABLE CLAMP	£1.91	Add to
012	322322880/1	SHORT DEAD HAND SWITCH LEVER BLACK	£7.78	Add to
013	MX483	CABLE CLEAT	£7.19	Add to
014	122010250/0	DEAD HAND SWITCH FAIRLEAD SHORT HOOKING	£2.06	Add to
015	322230350/2	LEFT FULCRUM PIN	£2.32	Add to
016	322785144/0	DEAD HAND SWITCH LEFT SUPPORT EL. LAWNM (OBSOLETE)	N/A
017	122450115/0	SPRING	£2.06	Add to
018	381008669/0	HANDLE SCREWS KIT	£15.13	Add to
